LOMBARD 1
DESCRIPTION
Tough, fast rigs for urban riding, the Lombard can take you to work day in and day out to your get you to your destination, and take abuse without blinking. Bulit-in reflectivity keeps you visible from all directions, and thanks to the durable components and higher-volume tires, you can treat the city like a playground.
SPECIFICATIONS
- Intended Use- Gravel
- Wheel Size- 700c
- Braking System- Mechanical Disc
- Frame Material- Aluminium
- Fork Material- Aluminium

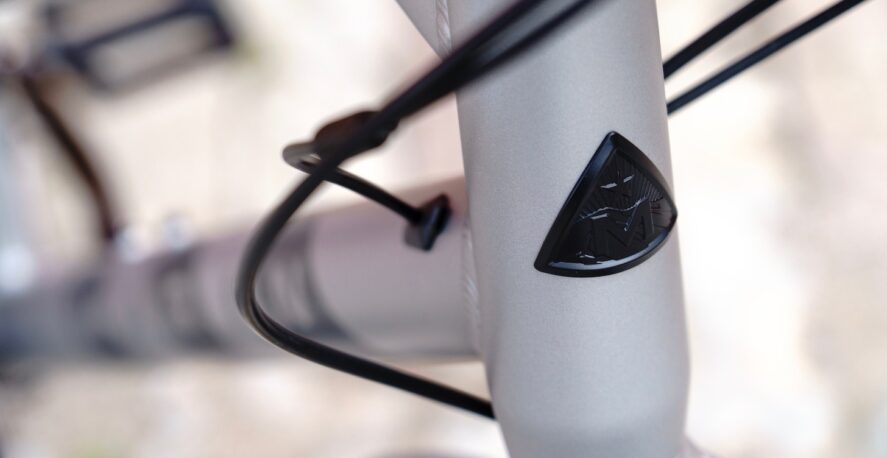

- Frame- Series 2 Lombard, 6061 Aluminum, 700C Wheels, Relieved Head Tube and BB, Internal Cable Routing, Disc Specific Forged Dropouts w/ Mudguard and Rack Mounts
- Fork- 6061 Aluminum, Straight-Blade, Post-Mount Disc
- Bottom Bracket- Sealed Cartridge Bearings, Square Taper
- Chain- KMC X9
- Crank- Marin 3D Forged Alloy, 48/32T Chainrings, Ring Guard
- Shift Levers- Shimano Sora 2x9-Speed
- Cassette- Shimano HG-200, 11-34T
- Front Derailleur- Shimano Sora
- Rear Derailleur- Shimano Sora 9-Speed
- Grips/Bartape- Marin Microfiber Tape
- Handlebar- Marin Butted Alloy, Compact 16º Flared Drop
- Stem- Marin 3D Forged Alloy
- Saddle- Marin Beyond Road Concept
- Seatpost- Marin Alloy, 27.2mm

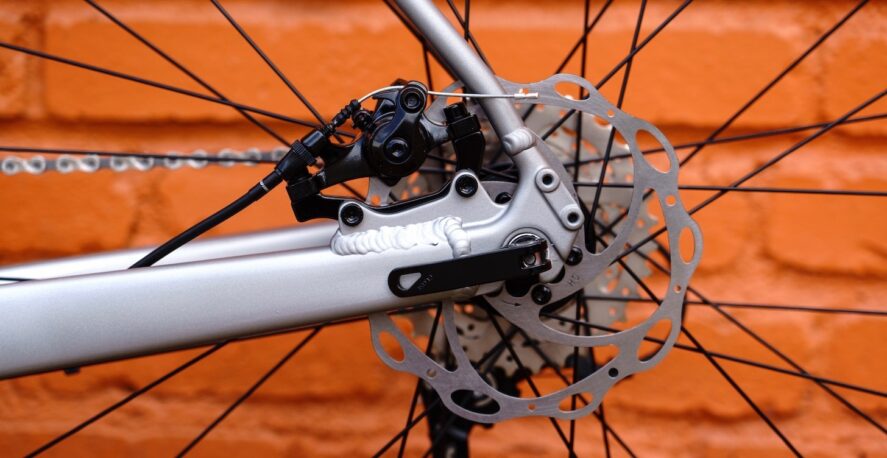

- Front Brake- Tektro Road Mechanical Disc, 160mm Rotor
- Rear Brake- Tektro Road Mechanical Disc, 160mm Rotor
- Front Wheel- Marin Aluminum Double Wall, 25mm Inner, Disc Specific
- Rear Wheel- Marin Aluminum Double Wall, 25mm Inner, Disc Specific
- Tire- Vee Tire, G-Sport, 700Cx40mm, Puncture Protection
- Pedal- Commute Platform
49 | 52 | 54 | 56 | 58 | 60 | |
A STACK | 527.8 | 546.8 | 561 | 580 | 594.2 | 618 |
B REACH | 388.6 | 393.2 | 399 | 404 | 409 | 417 |
C HEADTUBE ANGLE | 71.5° | 71.5° | 71.5° | 71.5° | 71.5° | 71.5° |
D HEADTUBE LENGTH | 107 | 127 | 142 | 162 | 177 | 202 |
E SEATTUBE ANGLE | 75° | 74° | 74° | 74° | 73.5° | 73.5° |
F SEATTUBE LENGTH | 490 | 520 | 540 | 560 | 580 | 600 |
G TOPTUBE EFFECTIVE | 530 | 550 | 560 | 570 | 585 | 600 |
H BB HEIGHT | 280 | 280 | 280 | 280 | 280 | 280 |
I BB DROP | 70 | 70 | 70 | 70 | 70 | 70 |
J CHAINSTAY | 425 | 430 | 430 | 430 | 435 | 435 |
K WHEELBASE | 1013 | 1030 | 1040 | 1051 | 1066 | 1082 |
L STANDOVER HEIGHT | 747.71 | 774.34 | 792.33 | 811.78 | 829.8 | 850.38 |
M FORK OFFSET | 50 | 50 | 50 | 50 | 50 | 50 |
SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
HANDLEBAR WIDTH | 400 | 400 | 420 | 420 | 440 | 440 |
STEM LENGTH | 70 | 70 | 90 | 90 | 110 | 110 |
CRANK LENGTH | 170 | 170 | 175 | 175 | 175 | 175 |
