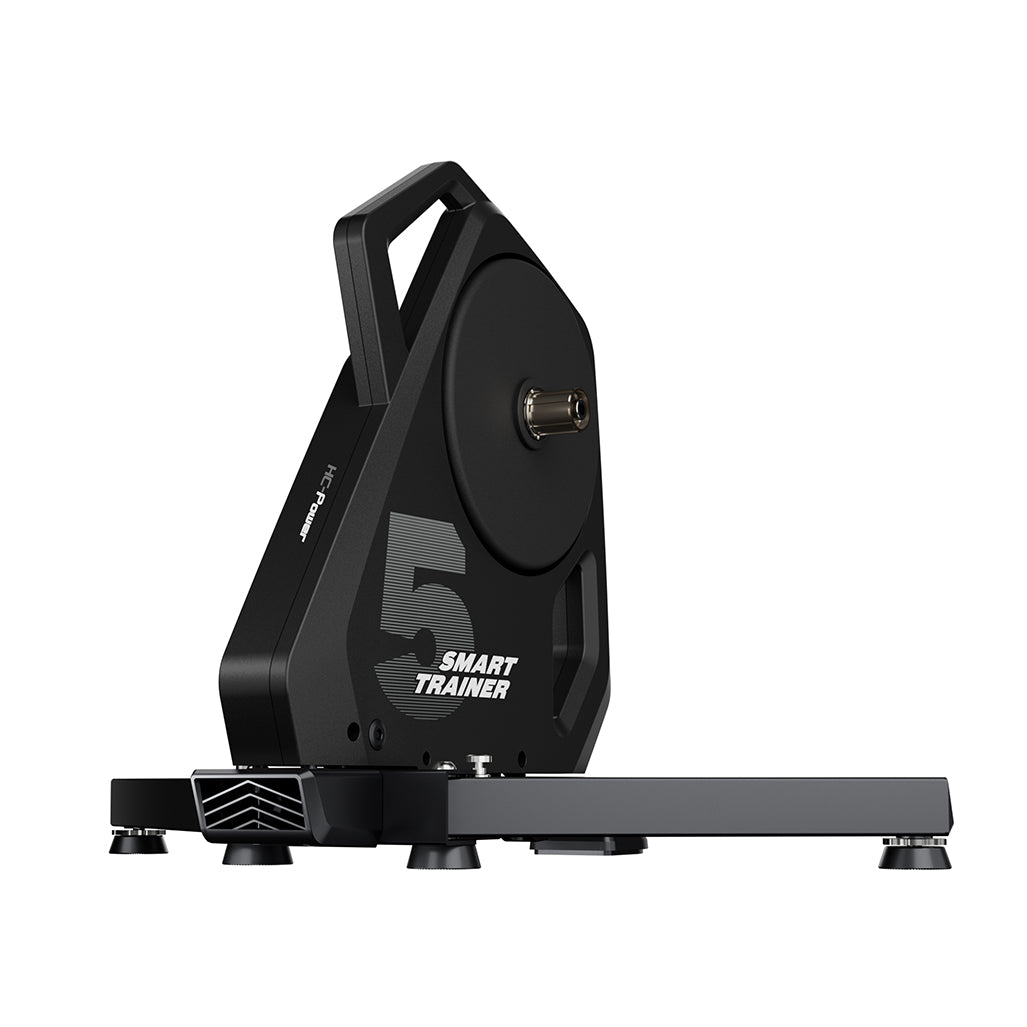

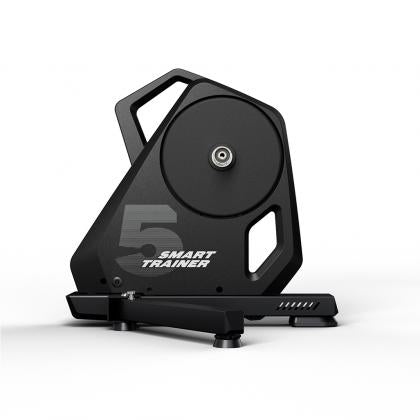

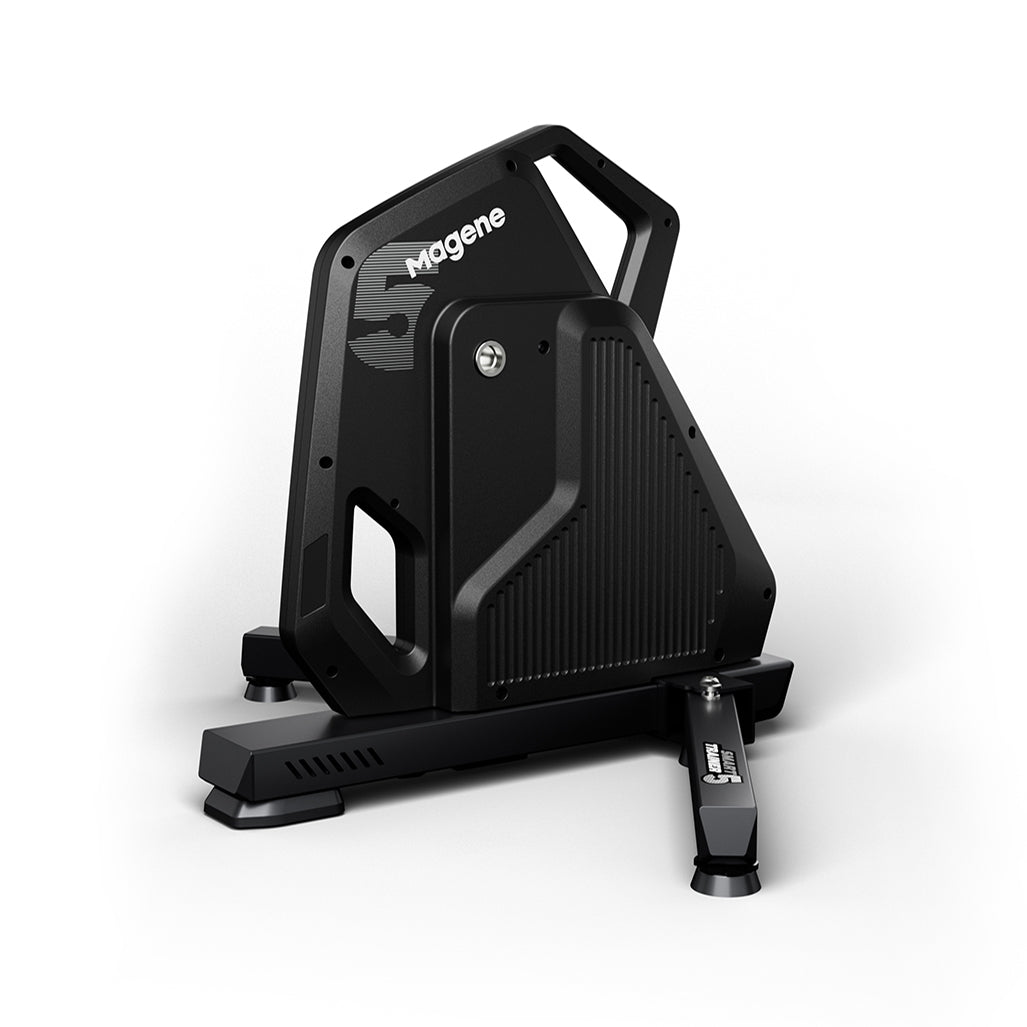

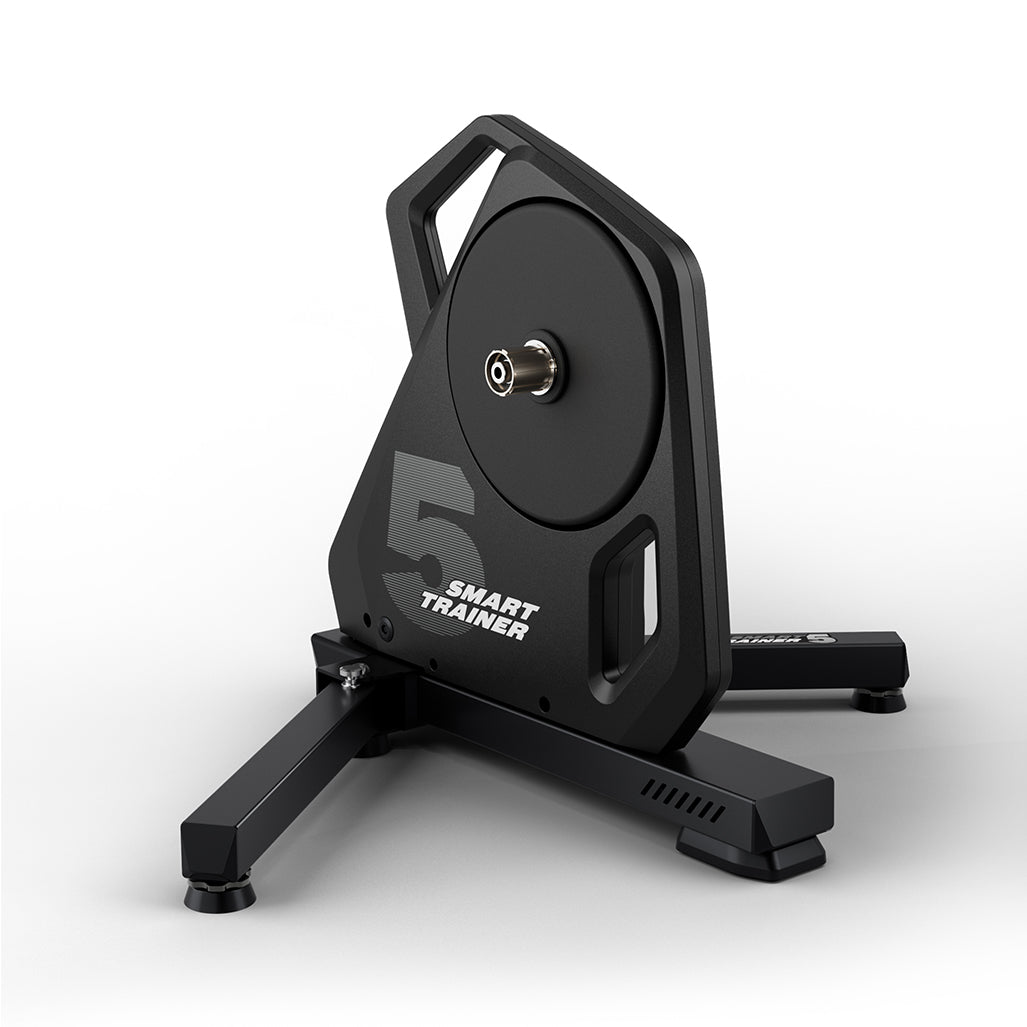

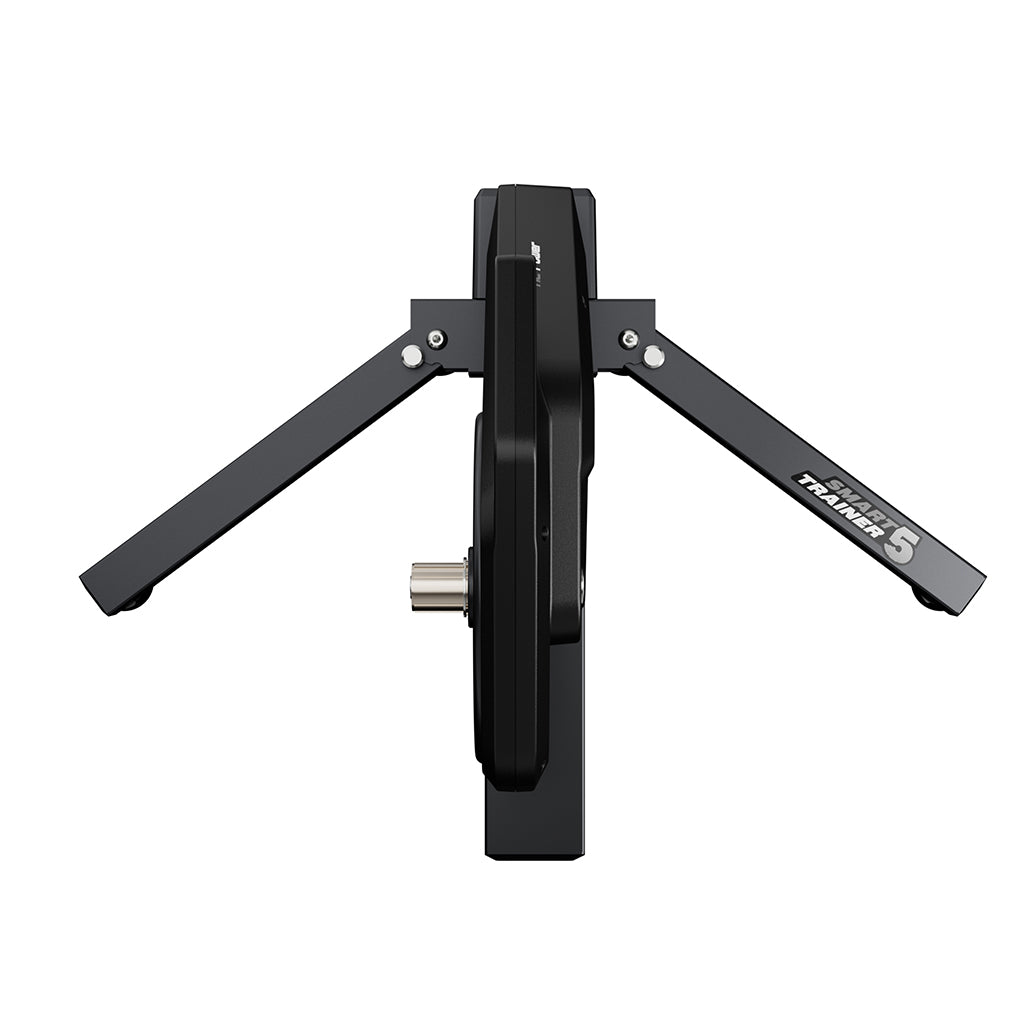

T500 DIRECT DRIVE SMART TRAINER

Description

Magene T500 Smart Trainer is designed for professional cyclists, featuring Magene’s second-generation self-developed permanent magnet synchronous motor. With a peak torque of 88 Nm, it delivers unparalleled resistance and precision, providing riders with an immersive outdoor-like riding experience from the comfort of their home. With a maximum power output of 2200W, the T500 smart trainer can handle the extreme sprints and short-distance burst tests of professional cyclists. Even if non-professional users can not reach this level, the high power ceiling extends the lifespan of your equipment, while also leaving room for future performance improvements.

Features

• With a maximum power output of 2200W, the T500 smart trainer can handle the extreme sprints and short-distance burst tests of professional cyclists.
• Supports up to 20% gradient simulation.
• Features a cooling system that combines passive and active cooling, significantly enhancing heat dissipation and extending the device's lifespan.
• Every Pedal Stroke Counts - With ±1% power accuracy, every training session is precise and reliable.
• Equipped with advanced self-power technology, truly achieving cordless cycling.
• Simulates a realistic downhill experience, providing a moment of relaxation after training.


Specifications

• Trainer Type- Direct Drive
• Resistance Type- Magnetic
• Connectivity- BLE FTMS / ANT+ FE-C
• Max Power- 2200 Watts
• Max Slope Simulation- 20%
• Power Accuracy- ±1%
• Total Weight- 16.5kg
• Power Source- 100V~240V
• Cassette Included- Yes
• Dimension- Expanded Size- 727 x 542 x 515mm / Folded Size- 193 x 542 x 515mm

Compatibility

• Wheel Size- 26''~29'' MTB/700C RD
• Axle Compatibility- 130 / 135mm quick release, 12*142mm / 12*148mm thru-axle
• O.L.D- NA
• Freehub Compatibility- Shimano/Sram 8 ~ 11 speed cassette, Shimano road 12 speed cassette, Sram XDR 12-speed cassette
• Supported Third Party Apps- Onelap, Zwift, TrainerRoad, ROUVY, Kinomap, Wahoo SYSTM X, BKOOL, MY WHOOSH.
• Supported Devices- Can be connected by three Bluetooth devices

In The Box

• T500 Smart Trainer
• Power Adapter + Power Cable
• Quick Release Skewer & 130/135 Quick Release Adapter with Quick Release Cap (Installed)
• HG Thru-axle Cap, 12*142 Thru-axle Adapter, 12*148 thru-axle adapter
• Disc Brake Pad Spacer
• 5mm hex Wrench
• 17mm open-end wrench
• Bluetooth Adapter
• Standard 11-speed cassette
• User Manual
