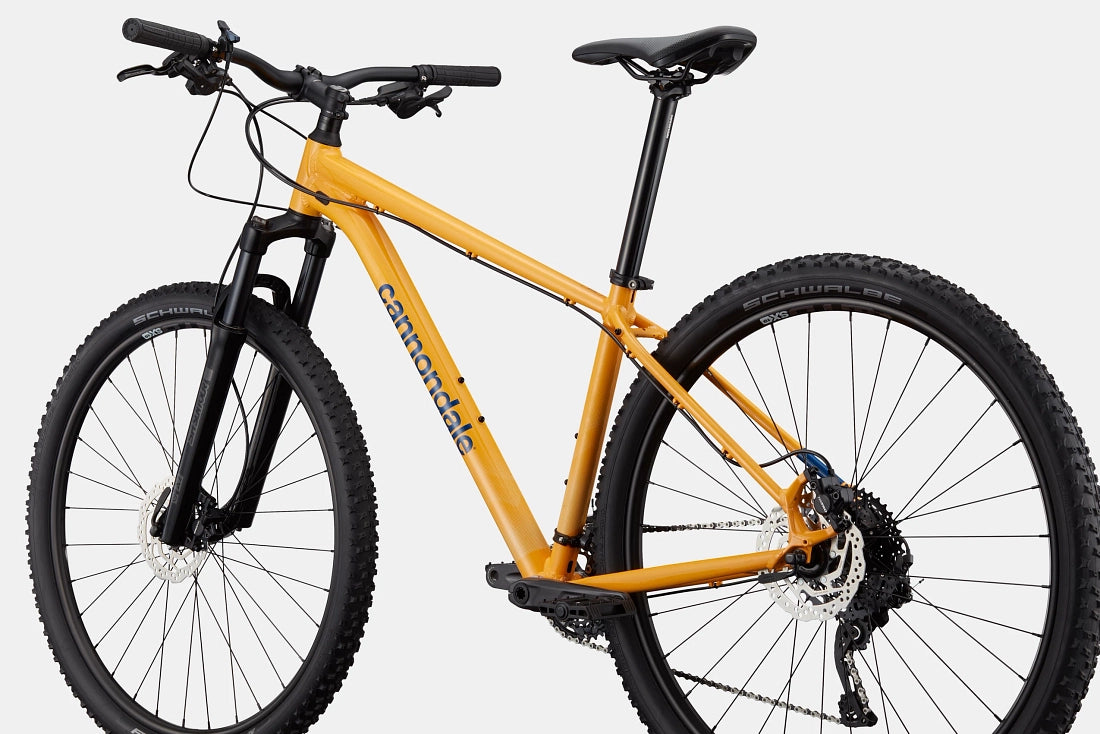

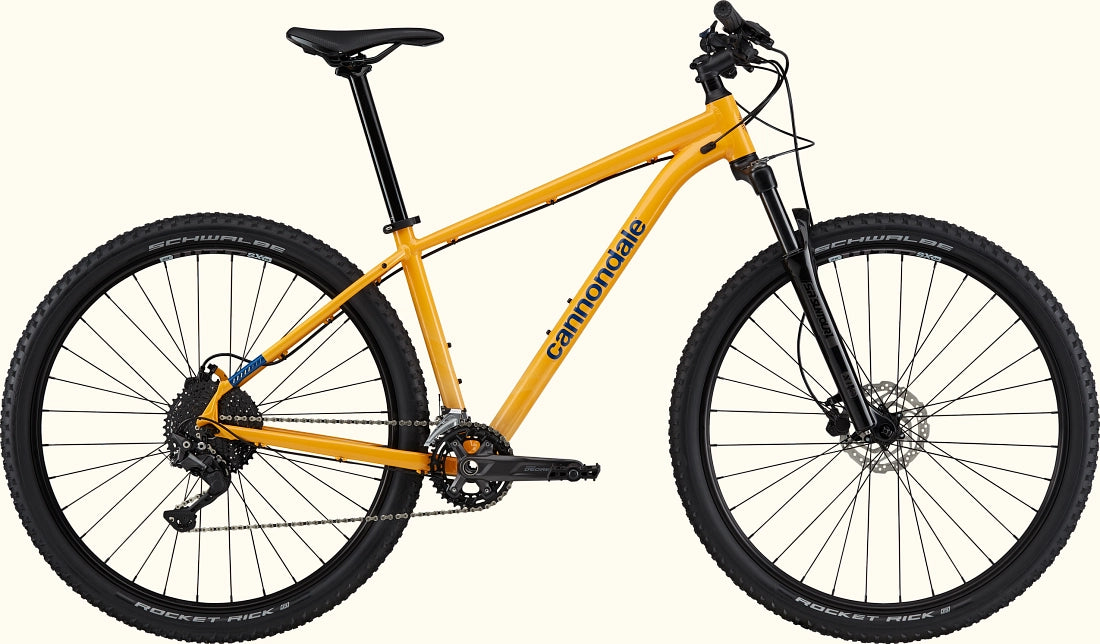

TRAIL 5

A mountain bike built to raise your game and ignite a passion for the trail. Designed for the mountains and ready for anything.

Simple yet sophisticated aluminum construction yields a light, lively frame that outperforms anything in its class.

Delivers a smoother, more controlled ride thanks to strategically engineered fl ex zones built into the frame's rear triangle.

A slack 68° head angle creates exceptionally stable handling so that you can charge the descents with confidence.

The smaller sizes of Trail roll on 27.5" wheels, while the larger sizes come with 29" wheels to deliver the best blend of fi t, fast and fun for every rider.

For an integrated look and easy maintenance, the shift and dropper post cables route cleanly through the StraightShot window in the down tube, while the rear brake line is secured outside the frame.

• Frame- SmartForm C3 Alloy, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73
• Fork- SR Suntour XCR32 RL, 100mm, remote lockout, coil, 42mm offset (27.5") 46mm offset (29")
• Headset- Semi-Integrated, 1-1/8"

• Crank- Shimano M4100, 36/26
• Front Derailleur- Shimano Deore M4100, 34.9mm clamp

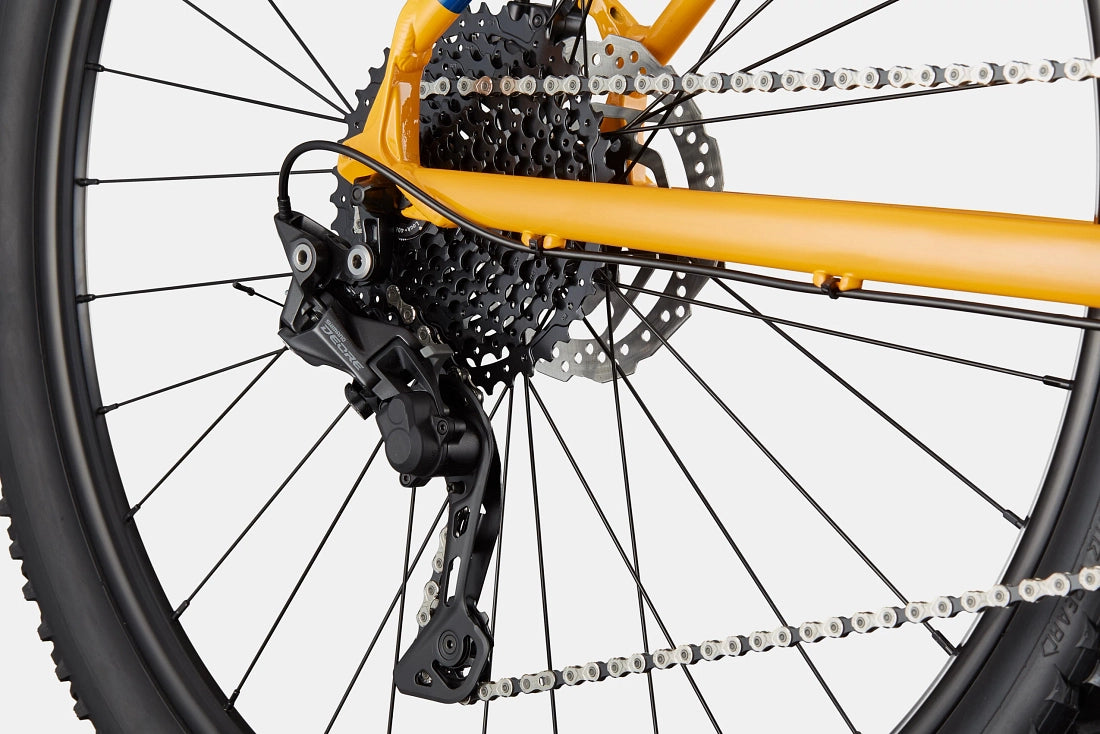

• Rear Derailleur- Shimano Deore M4100
• Cassette- Sunrace, 11-42, 10-speed
• Chain- KMC X10, 10-speed
• Bottom Bracket- Sealed cartridge bearing, square taper
• Front Brake- Tektro M275 hydraulic disc, 160/160mm rotors

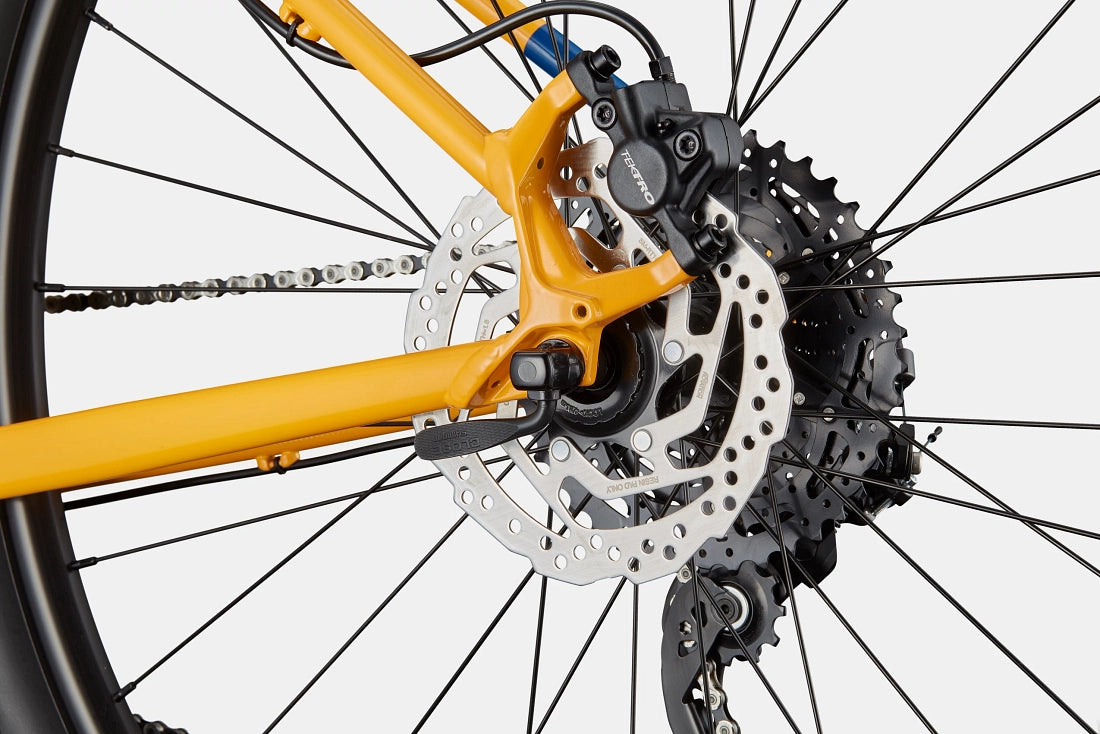

• Rear Brake- Tektro M275 hydraulic disc, 160/160mm rotors

• Stem- 6061 Alloy, 31.8, 7°

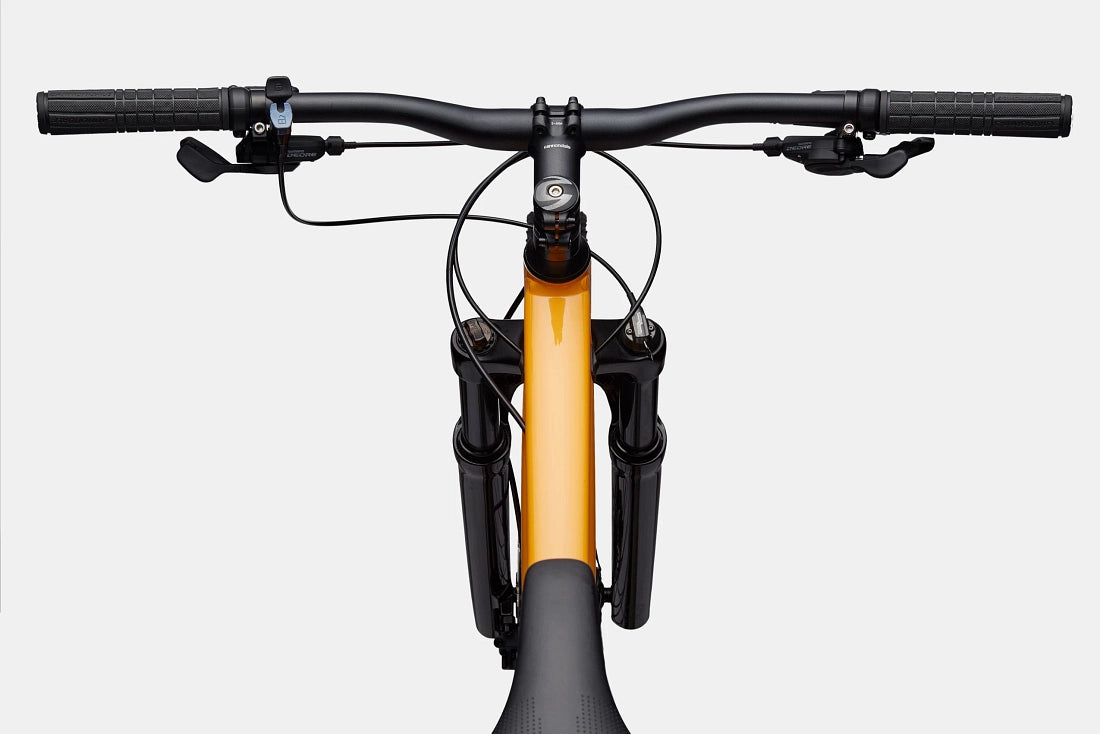

• Handlebar- Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
• Seatpost- Cannondale 3, 6061 Alloy, 31.6x350mm (XS - SM), 400mm (MD-XL)
• Grips- Cannondale Dual-Density
• Saddle- Cannondale Stage 3
• Front Wheel- WTB SX19, 32h, Shimano HBTX 505
• Rear Wheel- WTB SX19, 32h, Shimano FH-TX505
• Tire- Schwalbe Rocket Rick, 29x2.25" (27.5x2.25" - XS, SM), K-Guard

• SIZE 48 (XS) – Recommended for riders from 137 to 157cm tall (4’6” to 5’2”)
• SIZE 51 (S) – Recommended for riders from 154 to 162cm tall (5’1” to 5’4”)
• SIZE 54 (M) – Recommended for riders from 160 to 172cm tall (5’3” to 5’8”)
• SIZE 56 (L) – Recommended for riders from 170 to 182cm tall (5’7” to 6’)
• SIZE 58 (XL) - Recommended for riders from 180 to 190cm tall (5’11” to 6’3")

This chart shows our recommended frame sizes based on height. However, every person’s proportions are different, like the torso or arm and leg length has variations between people of the same exact height. That is a factor to achieve the best fit. That is why you will see some overlap in our recommendations above. This chart should only be used as a reference, for choosing the correct frame size to your body proportions please contact us through our website and/or visit a certified bike-fitter near you.
