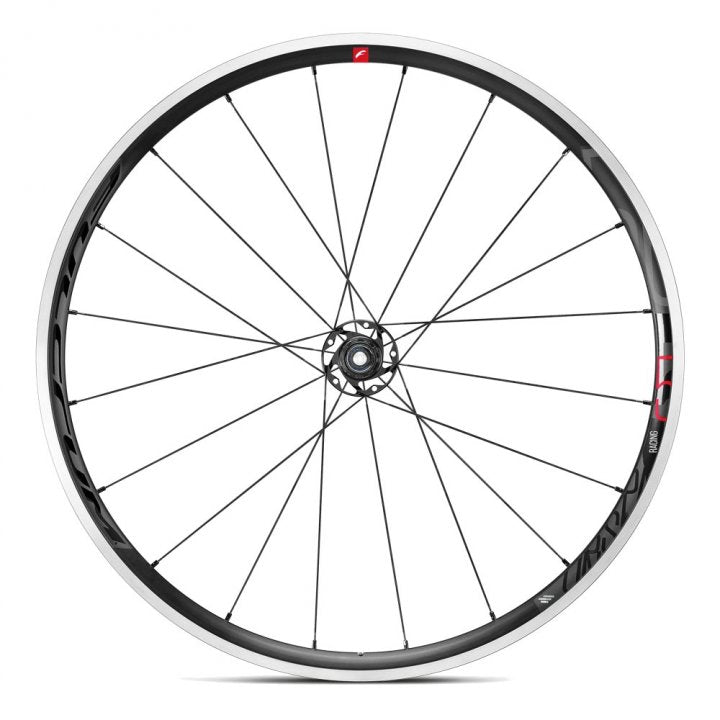

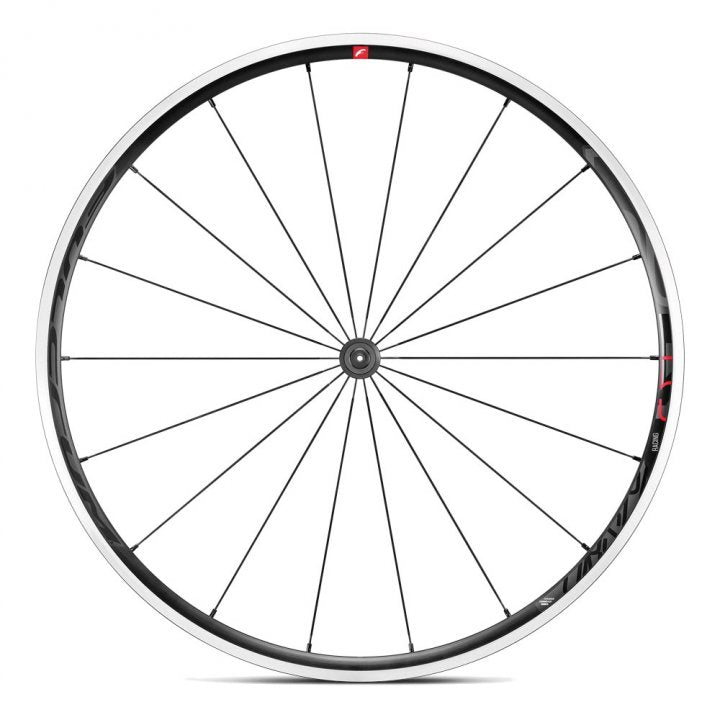

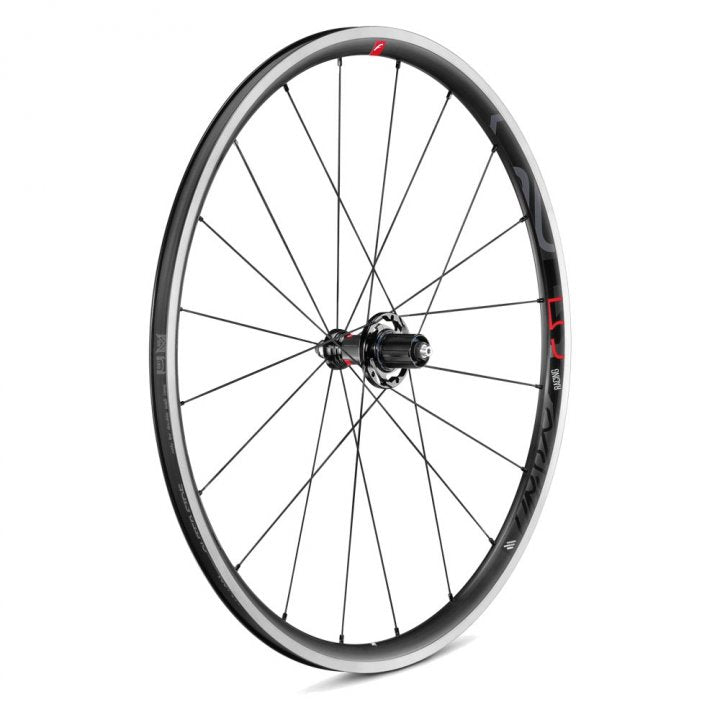

RACING 5 RIM WHEELSET

Description

The already best-in-class Racing 5 wheelset goes from high to higher performance thanks to its new design.

The same qualities that made the Racing 5 LG such a popular wheelset in the past combine new elements to make an affordable but also race-ready wheel. The 20-spoke design in addition to the 17C comprehensive asymmetric rear rim profile offers remarkable performance in terms of increased lateral and torsional rigidity and reactivity. The new design allows for more homogenous spoke tensions and makes for a sturdier, higher-performing wheelset.

Features

Rim dynamic balance:

The concept is simple and elegant: balance the weight of the gasket, with an item of similar weight placed on the exact opposite side. It is obtained by using two oversized spokes in the section opposite the joint. The result is a wheel with perfectly balanced rotational dynamics.

Anti-Rotation System™:

Spokes and hub housings are constructed to create a solid and unmovable whole. The result is that the spokes never lose their initial tension.

Traceability:

A guarantee of quality - the little label will provide you a guarantee in case of an ascertained defectiveness of a production batch, and so the component needed or wheel will be traceable.

Wide Rim Tech:

Its greater width makes it a perfect fit for tires of 28mm upwards.

Differentiated rim height:

24.5 mm at the front to provide optimal handling and 27,5 mm at the rear for transmitting all your power to the wheel.

Asymmetric rim profile:

The asymmetrical rear rim profile allows for better balancing of spoke tensions between the drive and nondrive side, giving better symmetry to an asymmetric component. Advantages: increased efficiency and reactivity are sure to be noted.

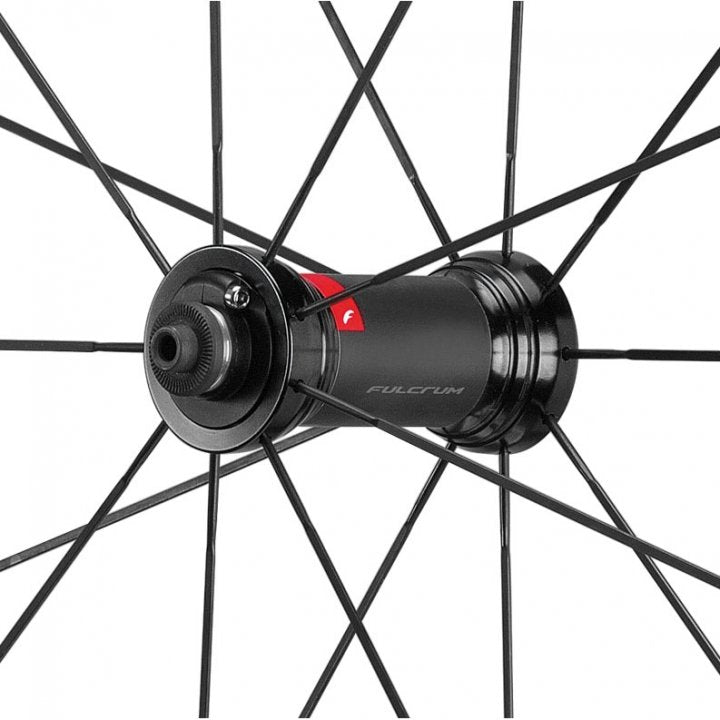

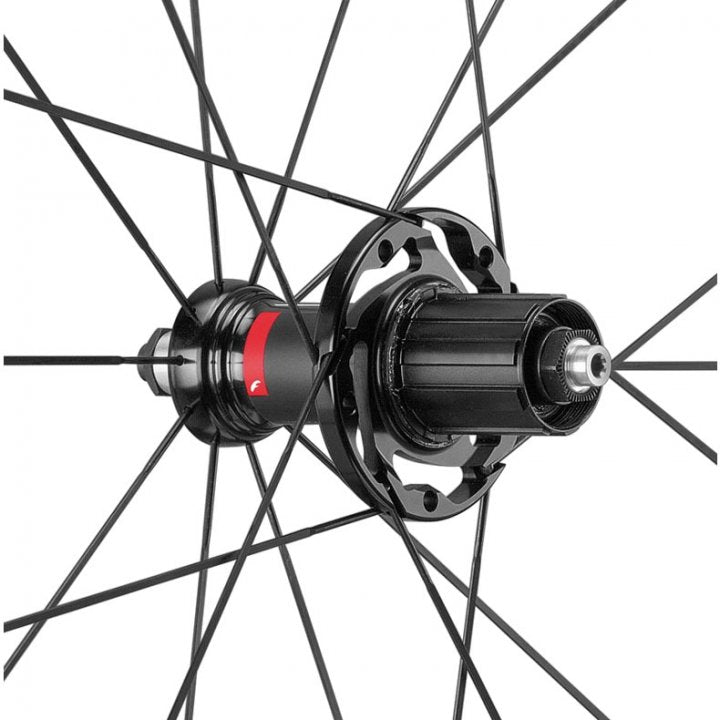

Oversized flange on the drive side:

Provides greater torsional stiffness, and increases reactivity at each change in the rhythm of the pedal stroke.

Specification

• Recommended Use-Road
• Wheel Size-29er
• Brake-Rim
• Inner Rim Width- 23 mm
• Freehub(Cassette Compatibility)-Shimano/SRAM Hyperglide
• Speed-12 Speed
• Rim Material-Carbon
• Front Wheel Axle-12x100mm Thru
• Rear Wheel Axle-12x142mm Thru
• Rim Depth/Height(Front)-< 30 mm
• Rim Depth/Height(Rear)-< 30 mm
• Compatible Tire Type-Clincher
• Tubeless Ready-Yes
• No Of Spokes(Front/Rear) -Front 18 Rear 20
• Weight-1660g
