BOBCAT TRAIL 3
DESCRIPTION
The Bobcat Trail is a capable mountain bike with modern trail geometry build for exploring singletrack trail systems. Best-in-class frames and solid, serviceable spec make the Bobcat Trail a solid choice for the recreational rider looking to step up to modern geo and step deeper into mountain biking, and for the experienced rider in search of an update that doesn’t break the bank.
DETAILS
- Series 2 aluminum frame w/double butted tubing & internal cable routing
- SR Suntour XCM HLO fork w/120mm travel & hydraulic lockout
- Tektro hydraulic disc brakes
SPECIFICATIONS
- Intended Use- Cross Country
- Wheel Size- 27.5"
- Braking System- Hydraulic Disc
- Frame Material- Aluminium
- Frame- Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
- Bottom Bracket- Sealed Cartridge Bearings, Square Taper
- Chain- KMC Z-8.3
- Crank- Alloy Crank, Steel Chainrings, 36/22T
- Shift Levers- Shimano Altus 2x8
- Cassette- SunRace 8-Speed, 11-34T
- Front Derailleur- Altus Double
- Rear Derailleur- Shimano Altus, 8-Speed
- Grips/Bartape- Marin MTB, Closed End
- Handlebar- Marin 31.8 Riser, 12mm Rise, 780mm Width
- Stem- Marin Alloy, 31.8mm Clamp, 45mm
- Saddle- Marin MTB
- Seatpost- Marin Alloy, 30.9

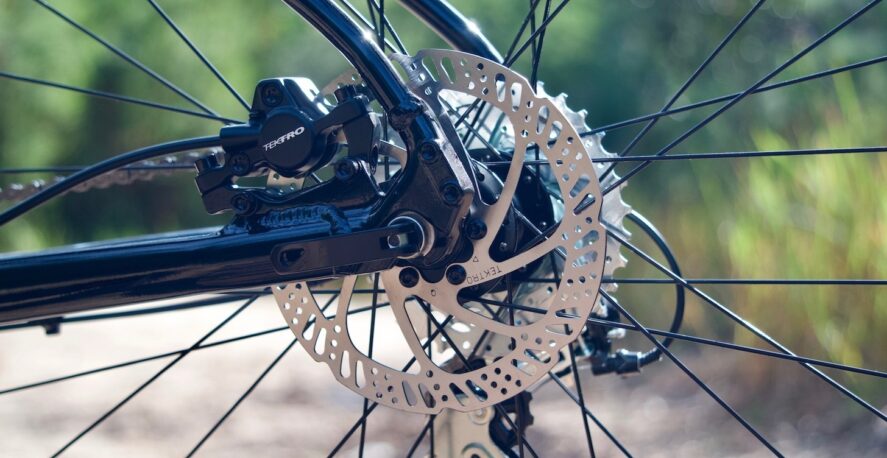

- Front Brake- Tektro HD-M275 Hydraulic Disc, 160mm Rotor
- Rear Brake- Tektro HD-M275 Hydraulic Disc, 160mm Rotor
- Front Wheel- Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific
- Rear Wheel- Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific
- Tire- MTB, 27.5/29x2.25
- Pedal- Nylon Platform
| XS | S | M (27.5) | M (29) | L | XL | |
| A STACK | 594.7 | 599.3 | 604 | 629.3 | 634 | 638.5 |
| B REACH | 420 | 435 | 445 | 445 | 465 | 480 |
| C HEADTUBE ANGLE | 67.5° | 67.5° | 67.5° | 67° | 67° | 67° |
| D HEADTUBE LENGTH | 100 | 105 | 110 | 110 | 115 | 120 |
| E SEATTUBE ANGLE | 74.5° | 74.5° | 74.5° | 74.5° | 74.5° | 74.5° |
| F SEATTUBE LENGTH | 330 | 381 | 431 | 431 | 482 | 520 |
| G TOPTUBE EFFECTIVE | 585 | 601 | 612.5 | 619.5 | 640.8 | 657 |
| H BB HEIGHT | 307 | 307 | 307 | 311.5 | 311.5 | 311.5 |
| I BB DROP | 48 | 48 | 48 | 61 | 61 | 61 |
| J CHAINSTAY | 425 | 425 | 425 | 440 | 440 | 440 |
| K WHEELBASE | 1116.4 | 1133.3 | 1145.2 | 1177.4 | 1199.3 | 1216.3 |
| L STANDOVER HEIGHT | 639.42 | 659.07 | 705.48 | 714.04 | 744.93 | 774.59 |
| M FORK OFFSET | 44 | 44 | 44 | 51 | 51 | 51 |
| SEATPOST DIAMETER | 30.9 | 30.9 | 30.9 | 30.9 | 30.9 | 30.9 |
| HANDLEBAR WIDTH | 780 | 780 | 780 | 780 | 780 | 780 |
| STEM LENGTH | 45 | 45 | 45 | 45 | 45 | 45 |
| CRANK LENGTH | 170 | 170 | 175 | 175 | 175 | 175 |
