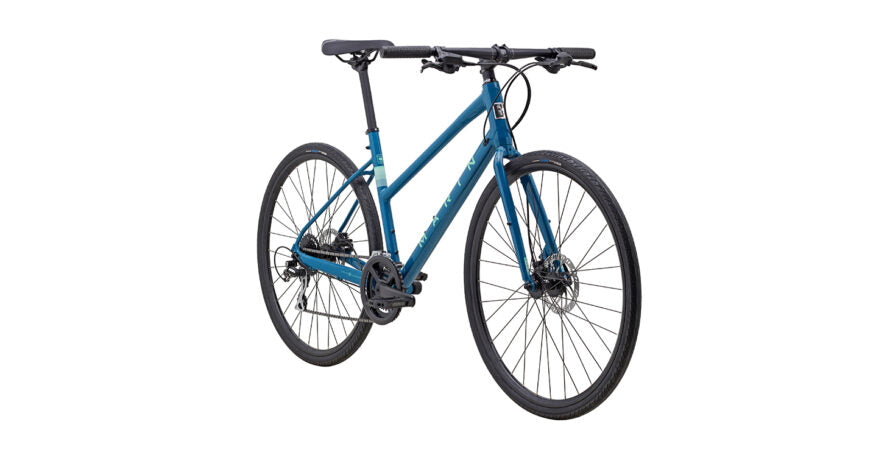

FAIRFAX ST 2
DESCRIPTION
The Fairfax and Terra Linda make up our Fitness line, built for the flat-bar fitness road rider with the accessory mounts and gear range for future upgrades.
SPECIFICATIONS
- Intended Use- Commuting
- Wheel Size- 700c
- Braking System- Hydraulic Disc
- Frame Material- Aluminium
- Fork Material- Aluminium
- Frame- Series 2 Fitness, Step-Thru Design, 6061 Aluminum, 700C Wheels, Disc Brake, Internal Cable Routing, Fender and Rack Mounts
- Fork- 6061 Aluminum, Straight-Blade, Disc Mount, Fender and Rack Eyelets
- Bottom Bracket- Sealed Cartridge Bearings, Square Taper
- Chain- KMC Z8
- Crank- Forged Alloy Crank, 46/30T, Ring Guard
- Shift Levers- Shimano Altus 2x8
- Cassette- SunRace 8-Speed, 11-34T
- Front Derailleur- Shimano TY710
- Rear Derailleur- Shimano Acera, 8-Speed
- Grips/Bartape- Marin Ergonomic Locking
- Handlebar- Marin Alloy Flat
- Stem- Marin 3D Forged Alloy
- Saddle- Marin Fitness Plush
- Seatpost- Marin Alloy, 27.2mm
- Front Brake- Clark's Clout Hydraulic Disc, 160mm Rotor
- Rear Brake- Tektro M275 Hydraulic Disc Brake
- Front Wheel- Marin Aluminum Double Wall, Disc Specific
- Rear Wheel- Marin Aluminum Double Wall, Disc Specific
- Tire- Vee Tire, Zilent, 700Cx35mm, Puncture Protection, Wire Bead
- Pedal- Fitness Platform
| XS | S | M | L | |
| A STACK | 557 | 571.3 | 590 | 609 |
| B REACH | 385 | 400 | 420 | 440 |
| C HEADTUBE ANGLE | 70.5° | 70.5° | 70.5° | 70.5° |
| D HEADTUBE LENGTH | 140 | 155 | 175 | 195 |
| E SEATTUBE ANGLE | 73.5° | 73.5° | 73.5° | 73.5° |
| F SEATTUBE LENGTH | 380 | 430 | 480 | 520 |
| G TOPTUBE EFFECTIVE | 550 | 569.2 | 594.8 | 620.4 |
| H BB HEIGHT | 283.5 | 283.5 | 283.5 | 283.5 |
| I BB DROP | 70 | 70 | 70 | 70 |
| J CHAINSTAY | 445 | 445 | 445 | 445 |
| K WHEELBASE | 1050.01 | 1070 | 1096.7 | 1123.4 |
| L STANDOVER HEIGHT | 536 | 567.3 | 607.7 | 628 |
| M FORK OFFSET | 50 | 50 | 50 | 50 |
| SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 |
| HANDLEBAR WIDTH | 640 | 640 | 680 | 680 |
| STEM LENGTH | 70 | 70 | 70 | 70 |
| CRANK LENGTH | 170 | 170 | 175 | 175 |
