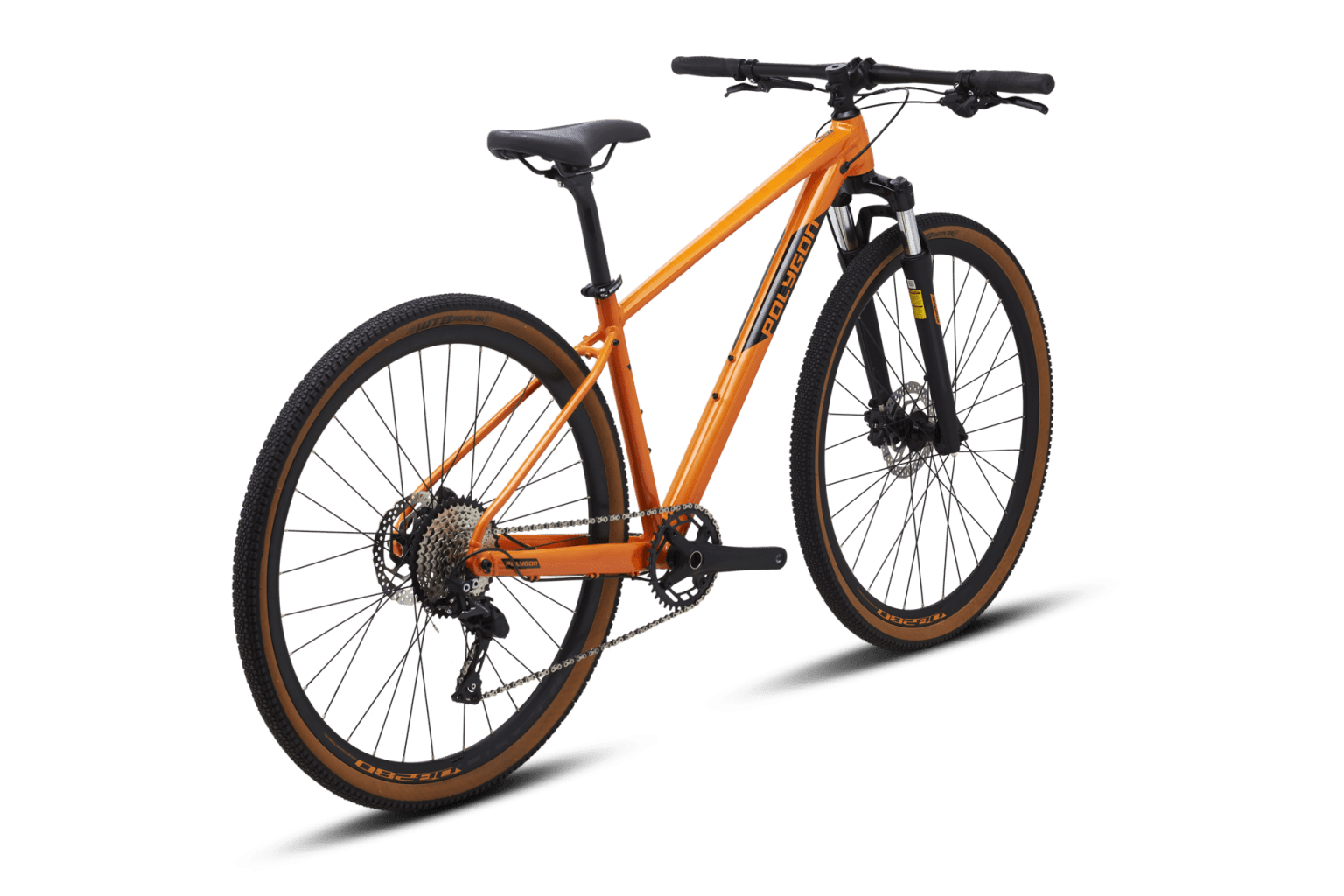

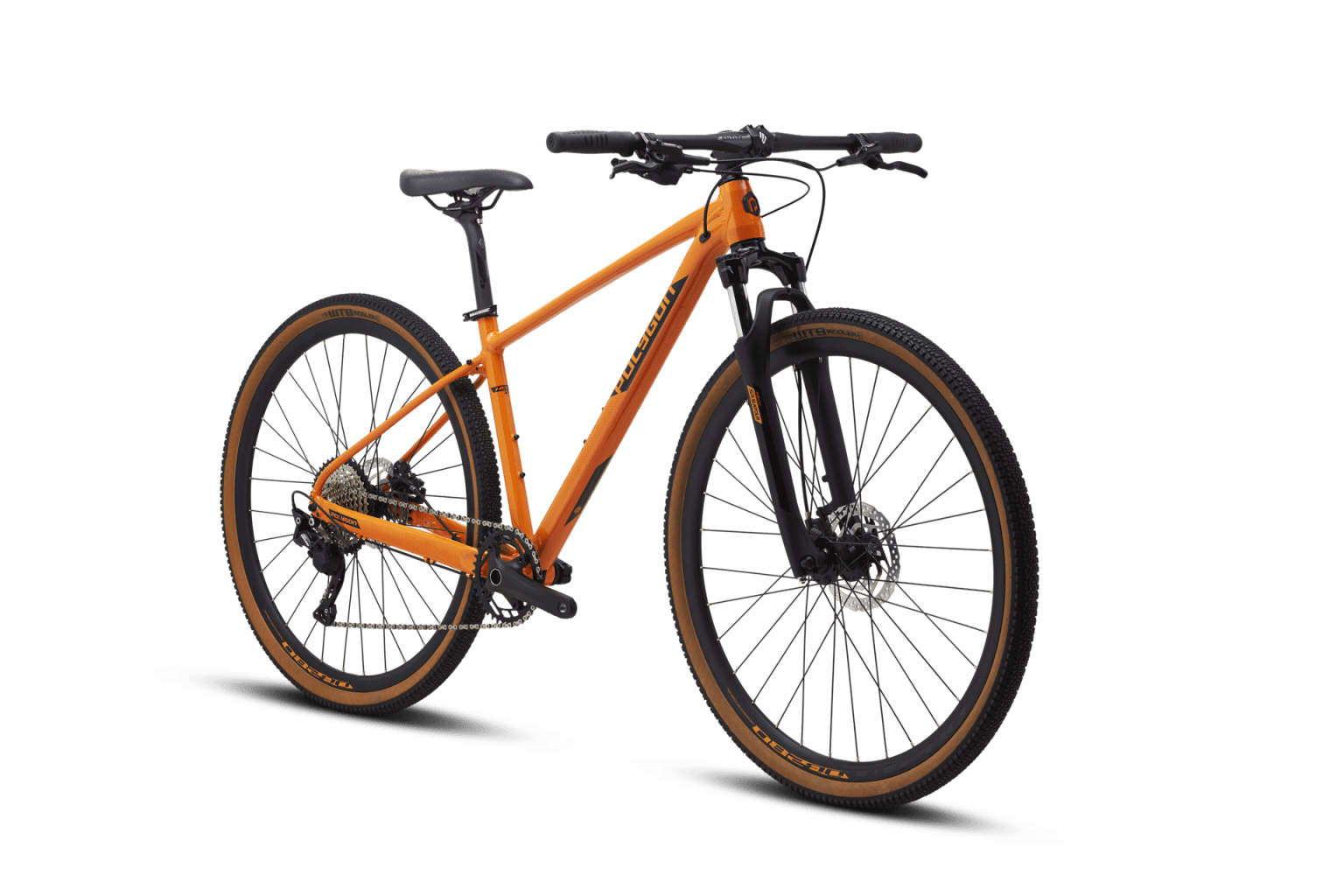

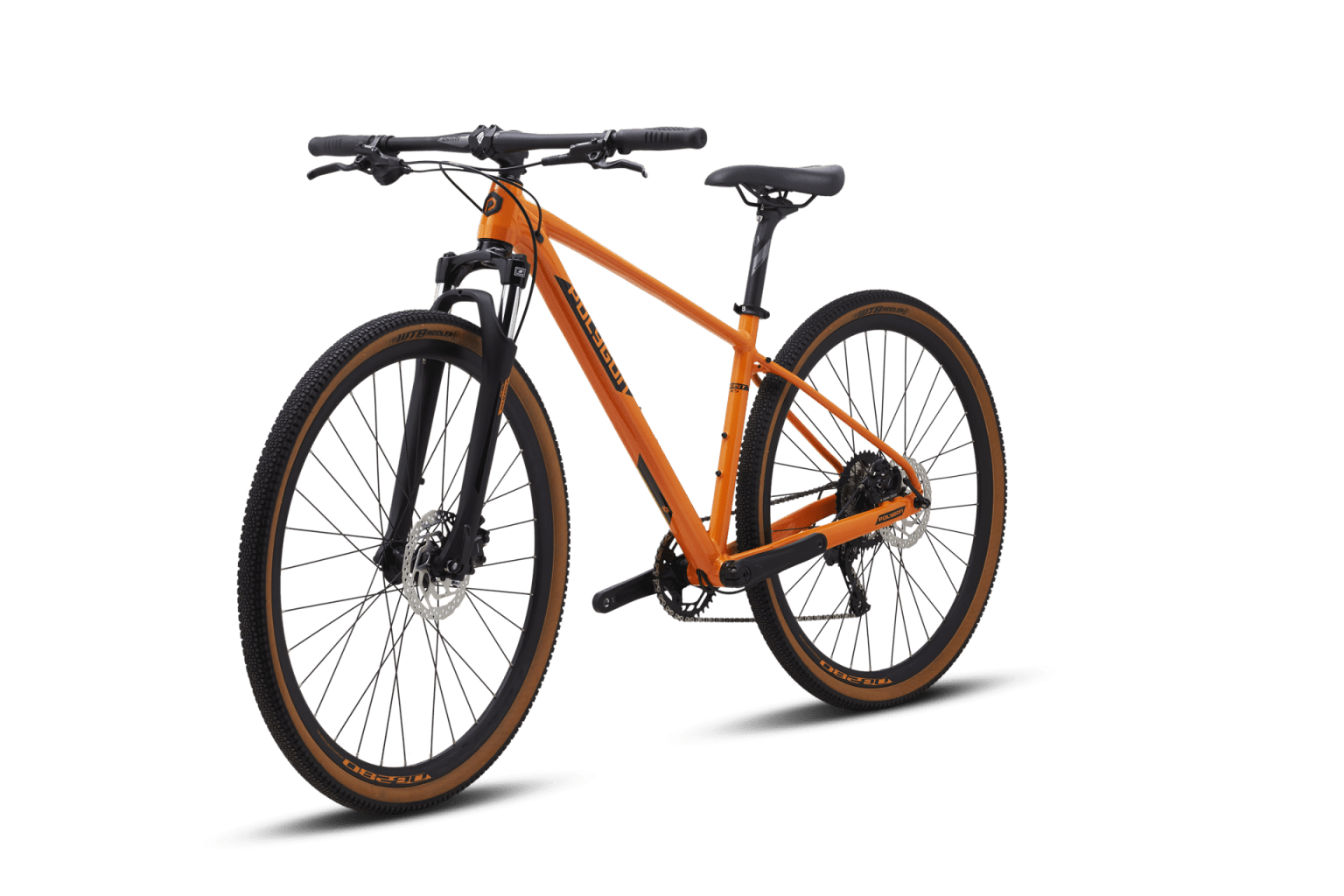

HEIST X5
Description
By bringing Heist X, we bring you a bike that is designed best for any urban terrains and light off-road. And yes, life is getting faster and harder, and Heist X is here - with its 1x Groupset you can shift easier; the reliable hydraulic disc brakes provide you a powerful stopping in any condition and easier maintenance; and take you wherever you’re heading to faster than before with its low rolling resistance tire. As you cruise farther, Heist X is here to bring you the best riding feels ever.
DETAILS
- There’s more in less. The biggest advantage from a 1x drivetrain is it lets you focus on your ride, instead of constantly adjusting gears. Now you can have more and better experience on trails.
- Accompanied with low rolling resistance tires to reduce the energy loss as a tire rolls, decreasing the required rolling effort. Enabling you to get wherever you’re heading to faster than before.
- With its suspension fork to smooth out the ride, and Hydraulic Disc Brakes that lets you experience a smooth and powerful braking performance; believe me, there’s no condition that can stop you to explore more.
Specifications
- Intended Use- Commuting
- Wheel Size- 700c
- Braking System- Hydraulic Disc
- Frame Material- Aluminium
- Fork Material- Aluminium
- Frame- AL6 URBAN CROSS, 12x142mm O.L.D. 2HRU
- Fork- SUNTOUR NVX, PRELOAD ADJUSTER, HYDRAULIC LOCK OUT, STRAIGHT 1-1/8" THREADLESS
- Bottom Bracket- THREADED BB, BSA THREADED 68mm
- Chain- KMC X10-1
- Crank- PROWHEEL CHARM, 36T 2-PIECE-CRANK, MAX CHAINRING: 38T, CRANK ARM: 170mm (S, M) / 175mm (L, XL)
- Shift Levers- SHIMANO DEORE SL-M6000/SL-M4100, 1X10 SPEED TRIGGER
- Cassette- SHIMANO CS-HG500, 10-SPEED 11-42T
- Rear Derailleur- SHIMANO DEORE RD-M6000/RD-M4120 DIRECT ATTACH
- Handlebar- ENTITY XPERT, EXT: 700mm, BAR BORE: 31.8mm, RISE/DROP: 0mm, BEND: 6degree
- Stem- ENTITY XPERT, EXT: 60mm (400, 431) / 80mm (470, 516)||| BAR BORE: 31.8mm, RISE/DROP: 7degree
- Saddle- ENTITY SADDLE, STEEL ø 7mm
- Seatpost- ENTITY XPERT, DXL: 27.2X350mm, OFFSET: 15mm, SEAT CLAMP: 31.8mm W/ QR
- Front Brake- SHIMANO BR-MT201 HYDRAULIC DISC BRAKE
- Rear Brake- SHIMANO BR-MT201 HYDRAULIC DISC BRAKE
- Front Wheel- ALLOY DOUBLE WALL
- Rear Wheel- ALLOY DOUBLE WALL
- Tire- WTB RIDDLER TIRE 700X45C
- Pedal- PP CAGE PEDAL W/ REFLECTOR
S | M | L | XL | |
Height (cm) | 150-160 | 160-170 | 170-180 | 180-190 |
Seat Tube Length (A) | 400 | 431 | 470 | 516 |
Seat Tube Angle (B) | 74 | 74 | 74 | 71 |
Effective Seat Tube Angle (C) | 74 | 74 | 74 | 71 |
Head Tube Length (D) | 90 | 90 | 100 | 110 |
Head Tube Angle (E) | 71 | 71 | 71 | 71 |
Effective Top Tube (F) | 563.12 | 593.12 | 620.8 | 648.54 |
Bb Height (G) | 289.5 | 289.5 | 289.5 | 289.5 |
Bb Offset (H) | 70 | 70 | 70 | 70 |
Chainstay Length (I) | 440 | 440 | 440 | 440 |
Wheelbase (J) | 1063.12 | 1093.12 | 1121.43 | 1149.63 |
Frame Reach (K) | 385 | 415 | 440 | 465 |
Frame Stack (L) | 621.18 | 621.18 | 630.64 | 640.1 |
Standover Height (M) | 688.3 | 708.7 | 742.5 | 781.5 |
