VR ADVANCED 105 DISC ROAD BIKE

Description

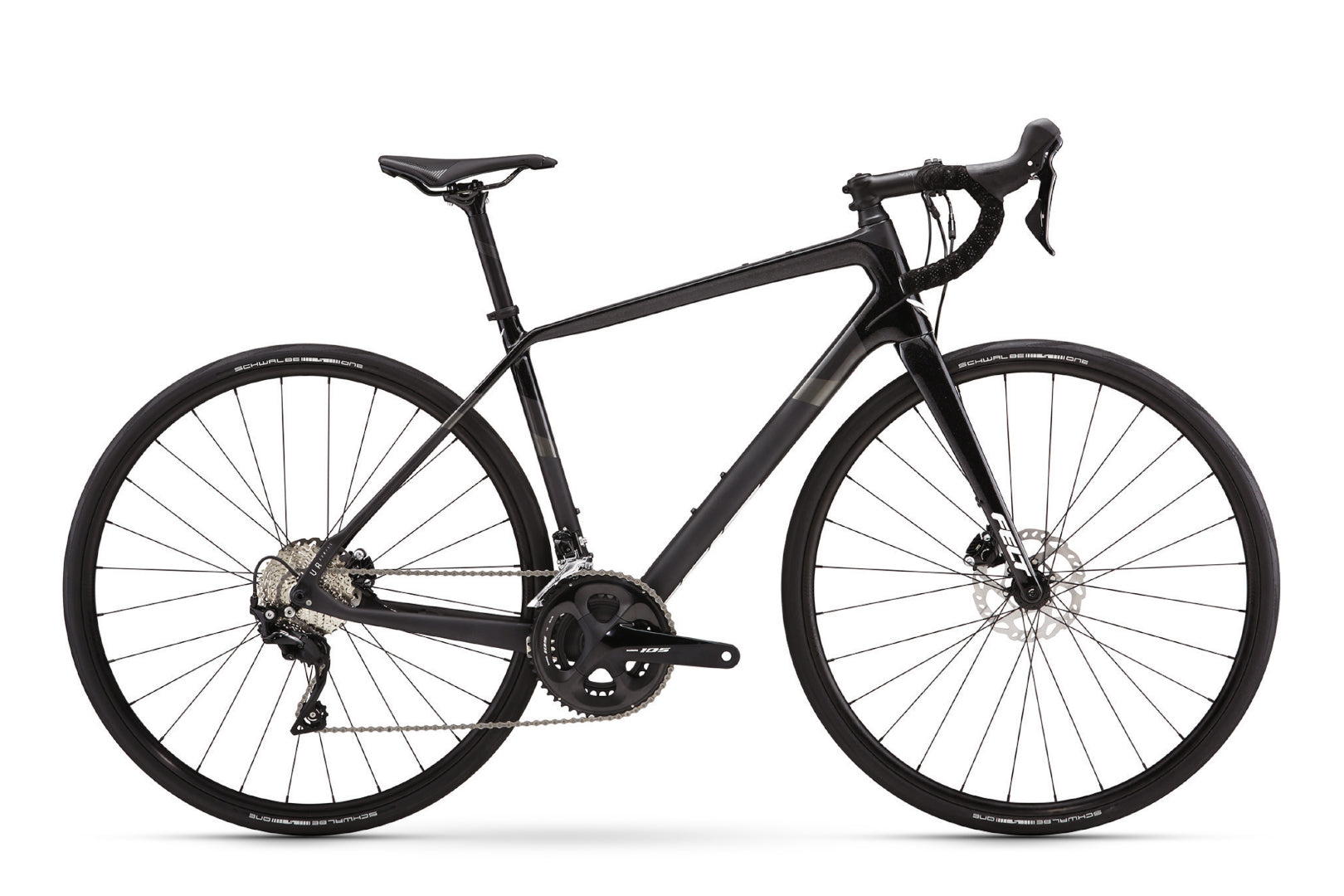

The Felt VR Advanced 105 is an endurance road bike that is lightweight, comfortable, stable, fun, and affordable. It is made with Felt’s UHC Advanced + TeXtreme carbon fiber. Its all-day geometry and versatility aim to keep riders comfortable and confident for miles on end. Despite its more upright position, the VR is a very fast bike. It is just one step removed from Felt’s aggressive performance road racing bike. Comfort and versatility come first but performance-oriented stiffness is not an afterthought on this bike. With hidden rack mounts and the ability to seamlessly integrate a fender, it is ready for all types of riding. The Felt VR Advanced also has confident and lively steering and handling as well as extra tire clearance so not matter how difficult the road, this bike will have you covered.

Features

• Felt implemented a seatstay that is outboard of the seat tube for enhanced compliance and absorption on tough roads.
• A stiff tapered headtube is featured on the VR Advanced, leading to predictable handling. With a fork that allows tires up to 30mm, riders can tailor their ride to take on the roughest roads with no issues.
• The bottom bracket shell is robust and promotes the type of power transfer you need in a performance road bike.
• This version of the VR Advanced is equipped with a Shimano 105 groupset for reliable and affordable mechanical shifting at a reasonable price.
• The Felt VR Advanced 105 is an endurance bike that will fill your need for adventure and speed.

Specifications

• Intended Use- Endurance
• Wheel Size- 700c
• Braking System- Hydraulic Disc
• Frame Material- Carbon
• Fork Material- Carbon

Components

• Frame- Felt VR 3.0, UHC Advanced + TeXtreme carbon
• Fork- Felt VR 3.0, UHC Advanced + TeXtreme carbon fiber
• Bottom Bracket- Token Ninja Lite, BB386 for Shimano (24mm)
• Chain- Shimano CN-HG601
• Crank- Shimano 105, FC-R7000, 50/34 T
• Shift Levers- Shimano 105, ST-R7025, Shimano 105, ST-R7020
• Cassette- Shimano 105 CS-R7000, 11-34 T
• Front Derailleur- Shimano 105, FD-R7000, Down-Swing
• Rear Derailleur- Shimano 105, RD-R7000, Shadow, 22-S
• Grips/Bartape- FBT-2
• Handlebar- Devox DBar.A2 31.8 mm, 380 mm, Devox DBar.A2 31.8 mm, 400 mm, Devox DBar.A2 31.8 mm, 420 mm, Devox DBar.A2 31.8 mm, 440 mm
• Stem- Devox StemR.A2
• Saddle- Prologo Dimension Space STN
• Seatpost- Devox Post.C2, 344 mm
• Front Brake- Shimano BR-R7070, 2-piston, Hydraulic disc brake
• Rear Brake- Shimano SM-RT70, 140 mm, Center lock
• Front Wheel- Devox WheelRDS.A1, Tubeless ready, Center lock, 12x100
• Rear Wheel- Devox WheelRDS.A1, Tubeless ready, Center lock, 12x142 mm
• Tire- Vittoria Rubino Pro IV,
• Pedal- NA
• Weight(Apprx)- 8.78kg

Geometry

	43	47	51	54	56	58	61
(A) Top Tube Length	495 mm	510 mm	525 mm	545 mm	563 mm	580 mm	595 mm
(B) Seat Tube Length	410 mm	430 mm	450 mm	480 mm	500 mm	520 mm	550 mm
(C) Seat Tube Angle	75.3 °	74.7 °	74.5 °	74 °	73.5 °	73 °	73 °
(D) Head Tube Length	115 mm	130 mm	145 mm	165 mm	185 mm	205 mm	225 mm
(E) Steering Angle	70.3 °	71.3 °	72 °	72.5 °	72.5 °	72.5 °	72.5 °
(F) Chain Stay Length	412 mm	412 mm	415 mm	415 mm	415 mm	417 mm	417 mm
(G) Wheel Base	977 mm	981 mm	989 mm	1000 mm	1013 mm	1027 mm	1042 mm
(H) Standover Height	665 mm	687 mm	708 mm	737 mm	757 mm	777 mm	805 mm
(I) BB-Drop	72 mm	72 mm	70 mm	70 mm	70 mm	70 mm	70 mm
(K) Fork Offset	52 mm	52 mm	50 mm	50 mm	50 mm	50 mm	50 mm
(L) Stack	521 mm	539 mm	555 mm	576 mm	595 mm	614 mm	633 mm
(M) Reach	355 mm	362 mm	369 mm	379 mm	386 mm	392 mm	401 mm
(N) Stem Length	80 mm	80 mm	90 mm	100 mm	100 mm	110 mm	120 mm
(O) Crank Length	165 mm	165 mm	170 mm	172.5 mm	172.5 mm	175 mm	175 mm
