Name: BOBCAT TRAIL 3
Brand: Marin
SKU: 730122002
Price: 48999.0 INR
Availability: InStock

Description

DESCRIPTION

The Bobcat Trail is a capable mountain bike with modern trail geometry build for exploring singletrack trail systems. Best-in-class frames and solid, serviceable spec make the Bobcat Trail a solid choice for the recreational rider looking to step up to modern geo and step deeper into mountain biking, and for the experienced rider in search of an update that doesn’t break the bank.

DETAILS

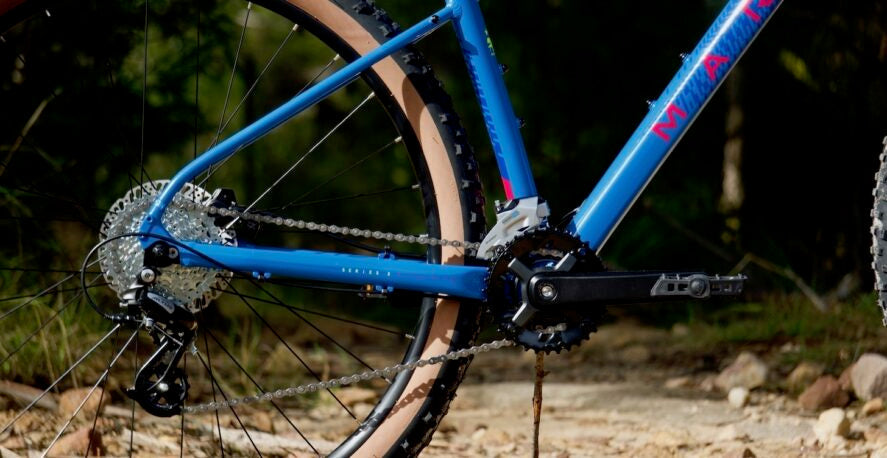

Series 2 aluminum frame w/double butted tubing & internal cable routing

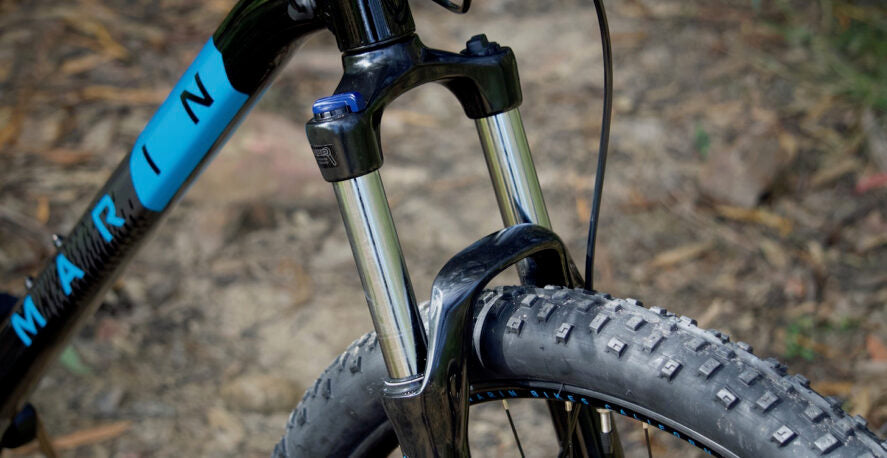

SR Suntour XCM HLO fork w/120mm travel & hydraulic lockout
Tektro hydraulic disc brakes

SPECIFICATIONS

Intended Use- Cross Country
Wheel Size- 27.5"
Braking System- Hydraulic Disc
Frame Material- Aluminium

Frame- Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
Bottom Bracket- Sealed Cartridge Bearings, Square Taper
Chain- KMC Z-8.3
Crank- Alloy Crank, Steel Chainrings, 36/22T
Shift Levers- Shimano Altus 2x8
Cassette- SunRace 8-Speed, 11-34T
Front Derailleur- Altus Double
Rear Derailleur- Shimano Altus, 8-Speed
Grips/Bartape- Marin MTB, Closed End
Handlebar- Marin 31.8 Riser, 12mm Rise, 780mm Width
Stem- Marin Alloy, 31.8mm Clamp, 45mm
Saddle- Marin MTB
Seatpost- Marin Alloy, 30.9

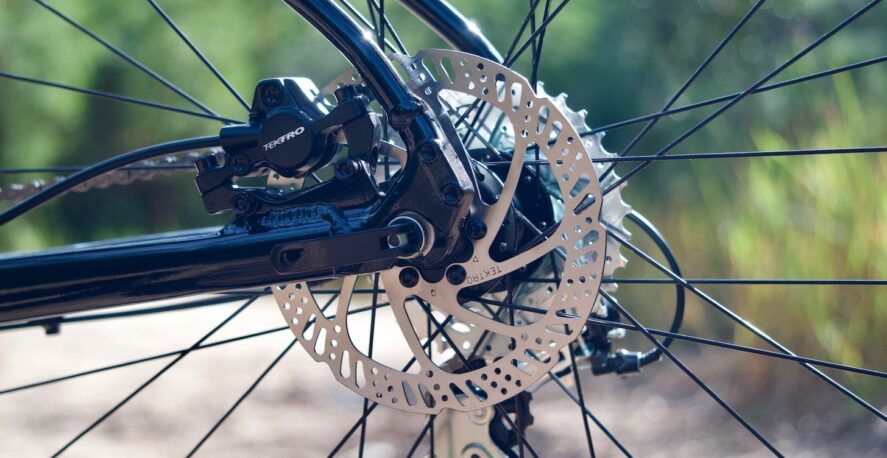

Front Brake- Tektro HD-M275 Hydraulic Disc, 160mm Rotor
Rear Brake- Tektro HD-M275 Hydraulic Disc, 160mm Rotor
Front Wheel- Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific
Rear Wheel- Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific
Tire- MTB, 27.5/29x2.25
Pedal- Nylon Platform

	XS	S	M (27.5)	M (29)	L	XL
A STACK	594.7	599.3	604	629.3	634	638.5
B REACH	420	435	445	445	465	480
C HEADTUBE ANGLE	67.5°	67.5°	67.5°	67°	67°	67°
D HEADTUBE LENGTH	100	105	110	110	115	120
E SEATTUBE ANGLE	74.5°	74.5°	74.5°	74.5°	74.5°	74.5°
F SEATTUBE LENGTH	330	381	431	431	482	520
G TOPTUBE EFFECTIVE	585	601	612.5	619.5	640.8	657
H BB HEIGHT	307	307	307	311.5	311.5	311.5
I BB DROP	48	48	48	61	61	61
J CHAINSTAY	425	425	425	440	440	440
K WHEELBASE	1116.4	1133.3	1145.2	1177.4	1199.3	1216.3
L STANDOVER HEIGHT	639.42	659.07	705.48	714.04	744.93	774.59
M FORK OFFSET	44	44	44	51	51	51
SEATPOST DIAMETER	30.9	30.9	30.9	30.9	30.9	30.9
HANDLEBAR WIDTH	780	780	780	780	780	780
STEM LENGTH	45	45	45	45	45	45
CRANK LENGTH	170	170	175	175	175	175
