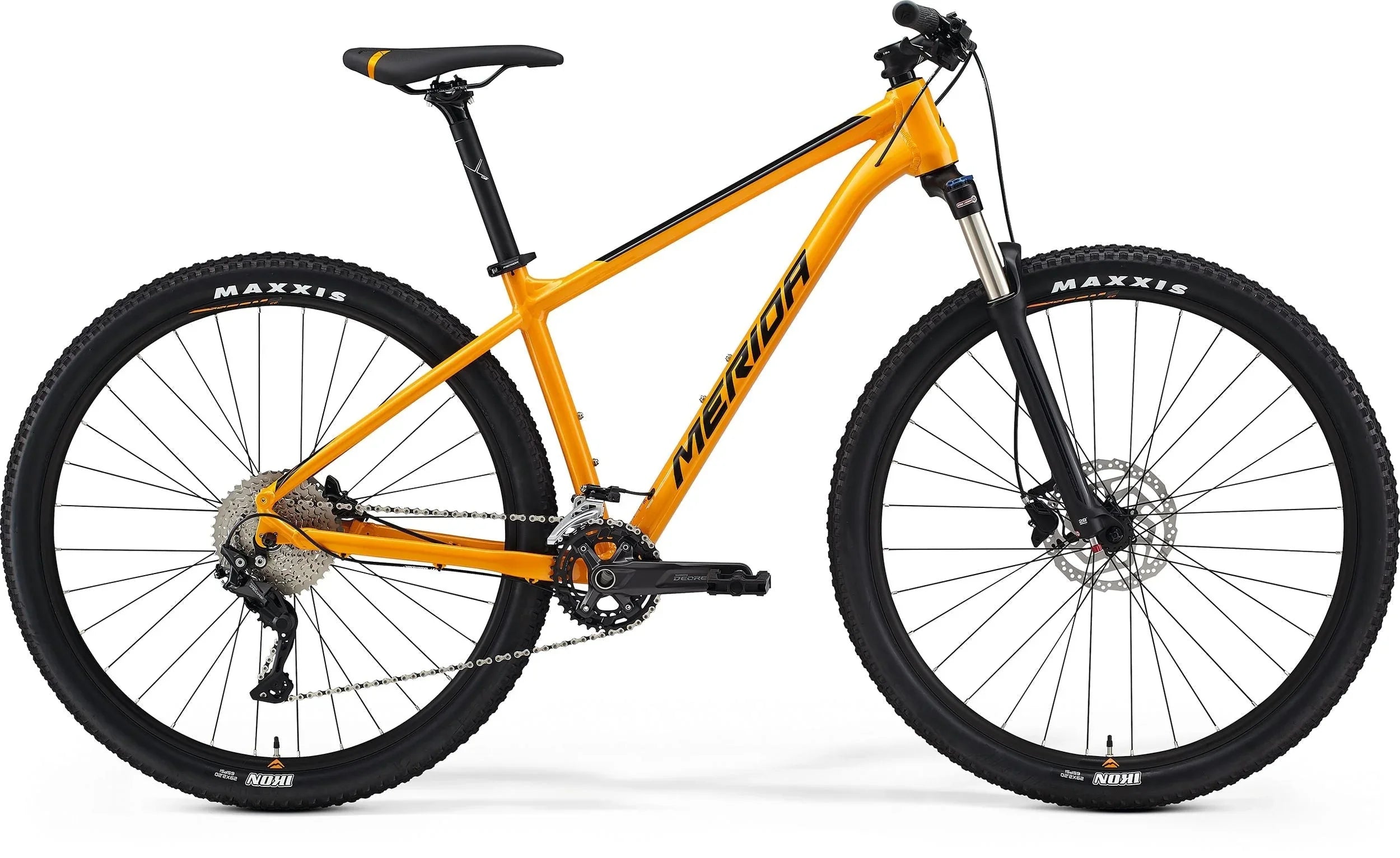

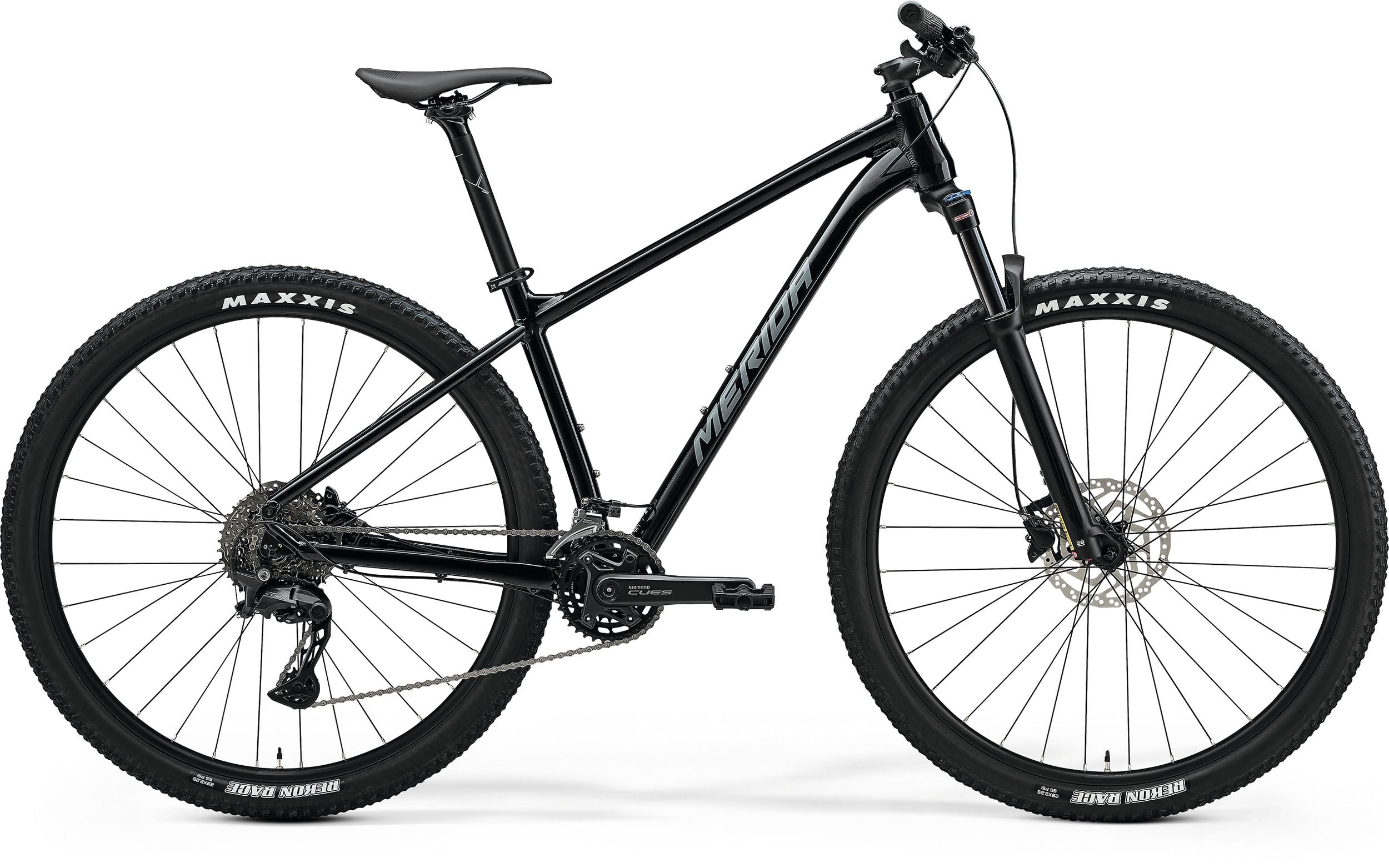

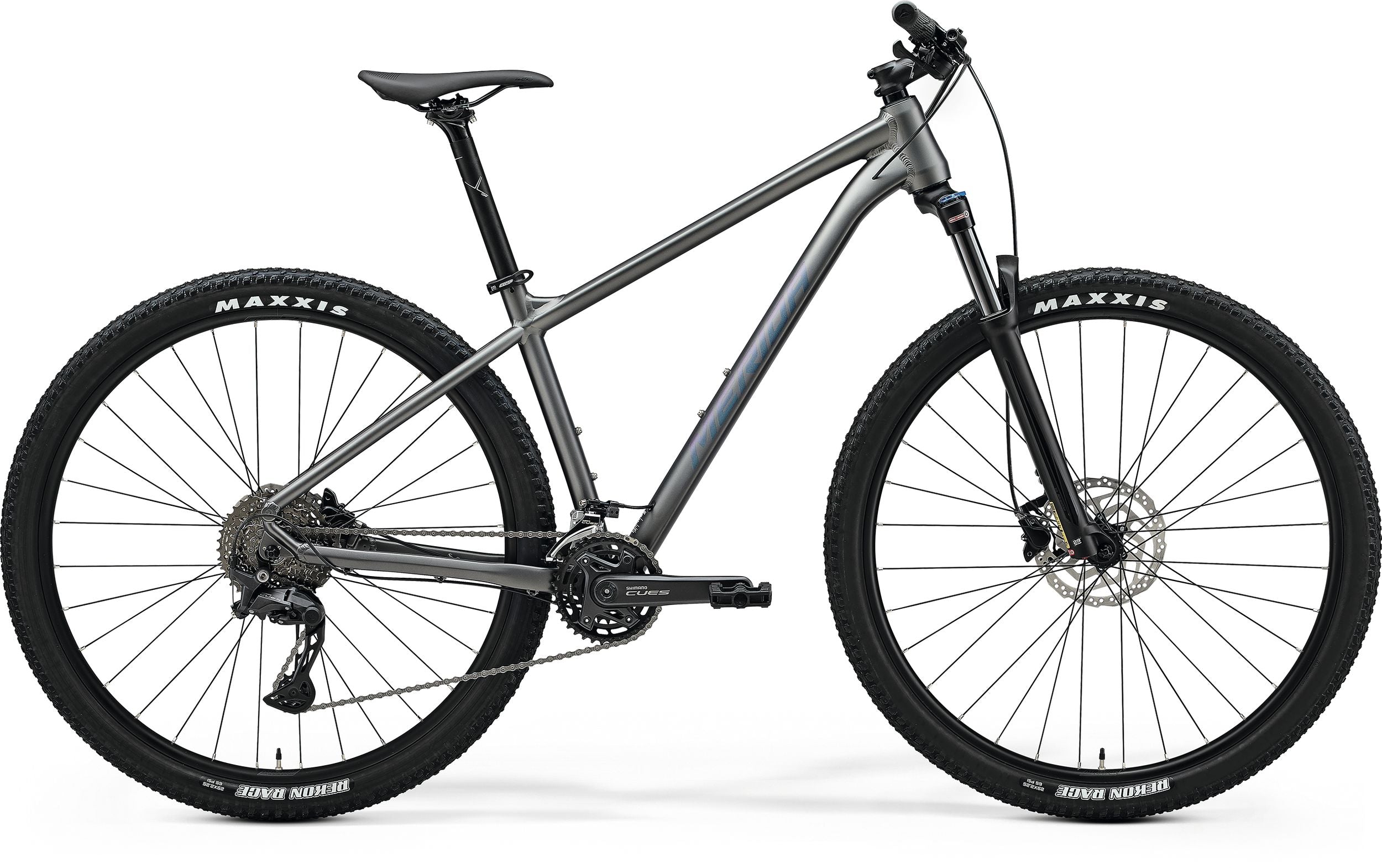

BIG NINE 300
Description
29er aluminium hardtail, featuring a 100 mm air suspension fork, a double chainring setup for a broad off-road-ready gear range and powerful hydraulic disc brakes. The BIG.NINE 300 is ready for your next off-road adventure.
29er wheels offer fantastic 'roll over' ability and keep their speed well. Perfect for your next mountain bike outing. We pair our double butted aluminium frame with an air suspension fork and a double chainring 10-speed Shimano drivetrain for the perfect combination of comfort, control and gear range. The slightly more upright riding position in comparison to our more racy models puts less strain on the lower back and also improves the visibility of what lies ahead.
Mountain biking is one of the most varied cycling disciplines and probably the most demanding when it comes to equipment. While full suspension bikes offer amazing riding characteristics, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes in carbon and aluminium and features multiple geometry options. The carbon and LITE framed BIG.NINE, with its racing geometry, is an ideal companion on XC and marathon race tracks whilst the more relaxed geometry of the BIG.NINE TFS and SPEED offers a more comfortable, upright riding position. Our classic hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we could gain in almost half a century of bike production and manufacturing. The BIG.NINE range symbolises the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan'.
Features
- Double-butted aluminium frame with 29er wheels
- Less aggressive and more upright geometry for maximum control and comfort
- SR Suntour 100 mm travel air suspension fork with lockout
- Shimano Deore 10-speed drivetrain with double chainring setup
- Hydraulic disc brakes. Internal cable routing
Specification
- Wheel Size- 29"
- Braking System- Hydraulic Disc
- Frame Material- Aluminium
- Fork Material- Steel
Components
- Frame- BIG.NINE TFS III, material: aluminum, 29x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard
- Fork- SR Suntour XCR LOR, Air, 100mm suspension travel, Lockout, 46mm fork offset
- Chain- KMC X10
- Crank- Shimano Deore M4100-2, 36-26 teeth, 170 mm-S, 175 mm-M up
- Shift Levers- Shimano Deore M5100 / Shimano Deore M4100
- Front Derailleur- Shimano Deore
- Rear Derailleur- Shimano Deore M4120 Shadow, SGS
- Grips/Bartape- MERIDA COMP EC
- Handlebar- MERIDA EXPERT CC, material: aluminium, 720mm width, 10mm rise
- Stem- MERIDA COMP CC, material: aluminium, 31.8mm diameter, 7° stem angle, S-70 mm, M-80 mm, L-90 mm, XL-100 mm, XXL-110 mm
- Saddle- MERIDA COMP SL, V-mount
- Seatpost- MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback
- Front Brake- Tektro M275, 2 piston
- Rear Brake- Tektro M275, 2 piston
- Front Wheel- MERIDA COMP CC, 20mm inner width, material: aluminium
- Rear Wheel- MERIDA COMP CC, 20mm inner width, material: aluminium
- Tire- Maxxis Ikon, 29x2.2", wire
- Pedal- VP VPE-891
Geometry
FRAME SIZE | S | M | L | XL | XXL |
TYRE SIZES | 29" | 29" | 29" | 29" | 29" |
ST SEAT TUBE [MM] | 370 | 430 | 470 | 510 | 560 |
TT TOP TUBE [MM] | 570 | 590 | 610 | 630 | 650 |
CS CHAIN STAY LENGTH [MM] | 440 | 440 | 440 | 440 | 440 |
HTA HEAD TUBE ANGLE [°] | 70 | 70 | 70 | 70 | 70 |
STA SEAT TUBE ANGLE [°] | 73 | 73 | 73 | 73 | 73 |
BD BOTTOM BRACKET DROP [MM] | 60 | 60 | 60 | 60 | 60 |
HT HEAD TUBE [MM] | 100 | 115 | 130 | 145 | 160 |
FL FORK LENGTH [MM] | 506 | 506 | 506 | 506 | 506 |
R REACH [MM] | 382 | 398 | 414 | 429 | 445 |
S STACK [MM] | 614 | 628 | 642 | 656 | 670 |
WB WHEELBASE [MM] | 1069 | 1090 | 1110 | 1131 | 1152 |
SH STAND OVER HEIGHT [MM] | 679 | 727 | 763 | 800 | 843 |
