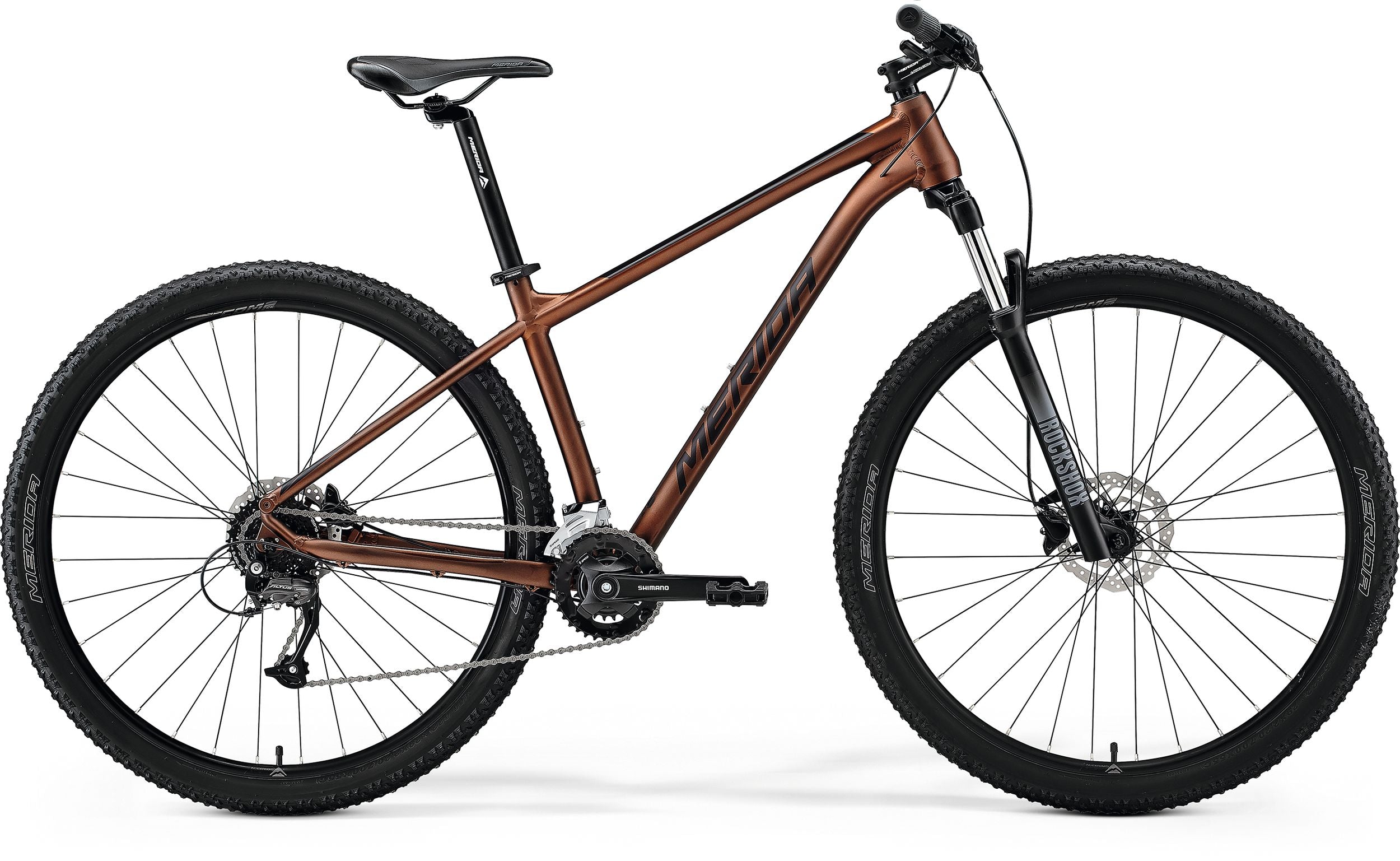

BIG NINE 60-3X

by Merida
Rs. 65,990.00
Color: Matt Bronze/Black
Size

Notify me when back in stock


Specifications
  • Wheel Size- 29"
  • Braking System- Hydraulic Disc
  • Frame Material- Aluminium
  • Fork Material- Aluminium
Components
  • Frame- BIG.NINE TFS III, material: aluminum, 29x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard
  • Fork- Rock Shox Judy TK, Coil, 100mm suspension travel Lockout, 46mm fork offset, 29x2.25" max. wheelsize,
  • Bottom Bracket- Shimano BB-UN100
  • Chain- KMC M99
  • Crank- 170 mm-S, 175 mm-M/XXL
  • Shift Levers- Shimano ST-EF505
  • Front Derailleur- Shimano FD-M2000
  • Rear Derailleur- Shimano RD-M370
  • Grips/Bartape- MERIDA EC
  • Handlebar- MERIDA CC, material: aluminium, 690mm width, 15mm rise
  • Stem- MERIDA CC, material: aluminium, 31.8mm diameter, 6° stem angle. 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
  • Saddle- MERIDA Sport comfort
  • Seatpost- MERIDA CC, material: aluminium, 30.9mm diameter, 15mm setback
  • Front Brake- Shimano ST-EF505, BR-MT200 brake caliper
  • Rear Brake- Shimano ST-EF505, BR-MT200 brake caliper
  • Front Wheel- MERIDA CC, 17mm inner width, material: aluminium
  • Rear Wheel- MERIDA CC, 17mm inner width, material: aluminium
  • Tire- MERIDA K1080, 29x2.2", wire
  • Pedal- VP VPE-891
Geometry
FRAME SIZE S M L XL XXL
TYRE SIZES 29" 29" 29" 29" 29"
ST SEAT TUBE [MM] 370 430 470 510 560
TT TOP TUBE [MM] 570 590 610 630 650
CS CHAIN STAY LENGTH [MM] 440 440 440 440 440
HTA HEAD TUBE ANGLE [°] 70 70 70 70 70
STA SEAT TUBE ANGLE [°] 73 73 73 73 73
BD BOTTOM BRACKET DROP [MM] 60 60 60 60 60
HT HEAD TUBE [MM] 100 115 130 145 160
FL FORK LENGTH [MM] 506 506 506 506 506
R REACH [MM] 382 398 414 429 445
S STACK [MM] 614 628 642 656 670
WB WHEEL BASE [MM] 1069 1090 1110 1131 1152
SH STAND OVER HEIGHT [MM] 679 727 763 800 843
