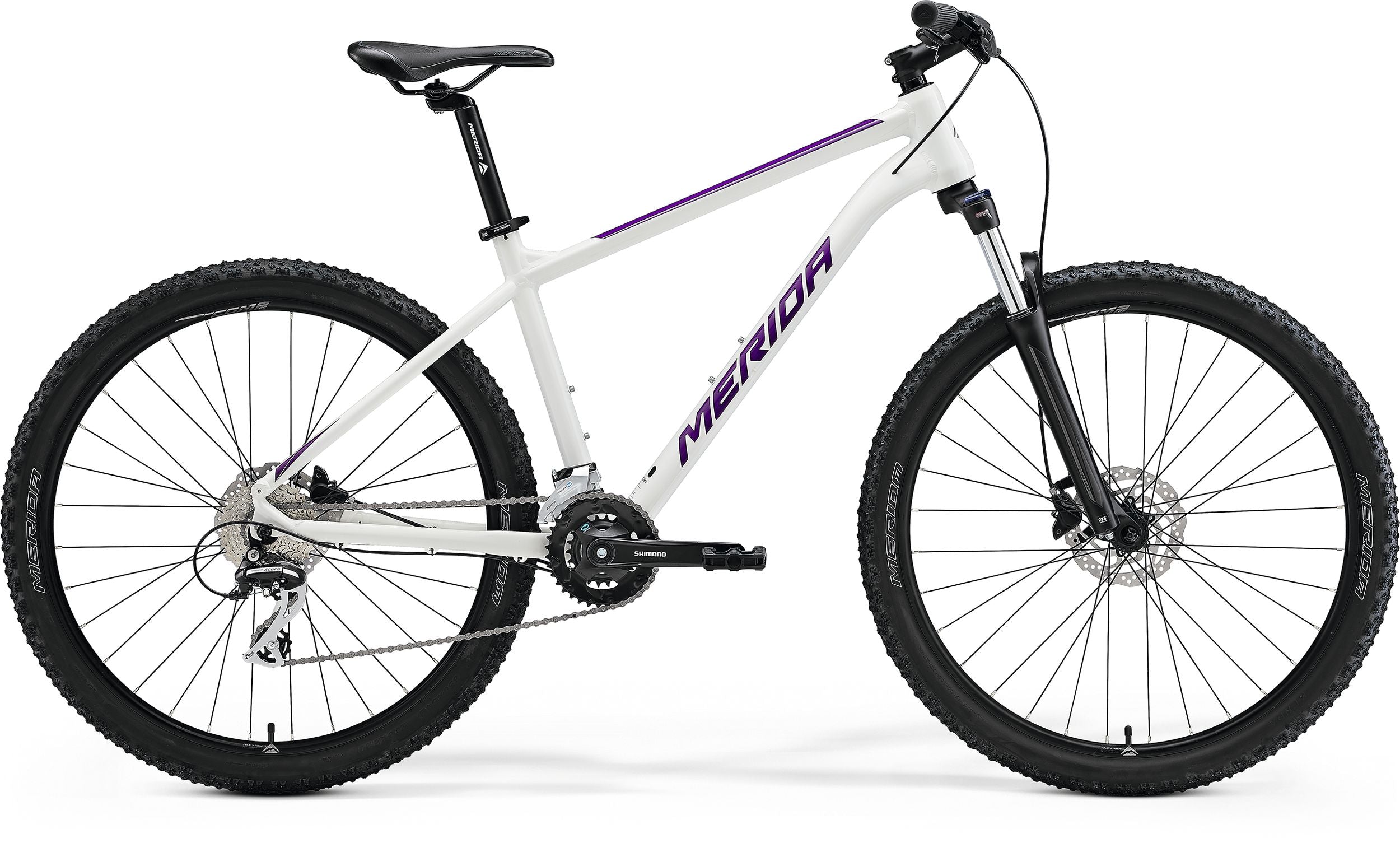

BIG SEVEN 20-2X
by Merida
Rs. 54,990.00
Specifications
- Intended Use-
- Wheel Size- 27.5"
- Braking System- Hydraulic Disc
- Frame Material- Aluminium
- Fork Material- Aluminium
Components
- Frame- BIG.SEVEN TFS III, material: aluminium, 27.5x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard
- Fork- SR Suntour XCT30 HLO, Coil, 100mm suspension travel, Lockout, 27.5x2.25" max. wheelsize
- Bottom Bracket- FSA TH-7420ST-W, Cartridge Bearing
- Chain- Sunrace M84
- Crank- Shimano FC-M315-2, 36-22 teeth, 170 mm-XS/S, 175 mm-M/L
- Shift Levers- Micro Shift TS39-2L / Micro Shift TS39-8R
-
Front Derailleur- Shimano FD-M315-TS
- Rear Derailleur- Shimano RD-M360
- Grips/Bartape- MERIDA EC
- Handlebar- MERIDA CC, material: aluminium, 690mm width, 15mm rise
- Stem- MERIDA CC, material: aluminium, 31.8mm diameter, 6° stem angle, 70 mm-XS/S, 80 mm-M, 90 mm-L
- Saddle- MERIDA Sport comfort
- Seatpost- MERIDA CC, material: aluminium, 30.9mm diameter, 15mm setback
- Front Brake- Power DS100, 2 piston, hydraulic disc brake
- Rear Brake- Power DS100, 2 piston, hydraulic disc brake
- Front Wheel- MERIDA CC, 17mm inner width, material: aluminium
- Rear Wheel- MERIDA CC, 17mm inner width, material: aluminium
- Tire- MERIDA K1080 27.5x2.2" wire,
- Pedal- VP VPE-891
Geometry
| FRAME SIZE | XS | S | M | L |
| TYRE SIZES | 27.5" | 27.5" | 27.5" | 27.5" |
| ST SEAT TUBE [MM] | 340 | 380 | 440 | 480 |
| TT TOP TUBE [MM] | 550 | 570 | 590 | 610 |
| CS CHAIN STAY LENGTH [MM] | 430 | 430 | 430 | 430 |
| HTA HEAD TUBE ANGLE [°] | 69 | 69 | 69 | 69 |
| STA SEAT TUBE ANGLE [°] | 73 | 73 | 73 | 73 |
| BD BOTTOM BRACKED DROP [MM] | 30 | 30 | 30 | 30 |
| HT HEAD TUBE [MM] | 100 | 115 | 130 | 145 |
| FL FORK LENGTH [MM] | 487 | 487 | 487 | 487 |
| R REACH [MM] | 378 | 394 | 409 | 425 |
| S STACK [MM] | 563 | 577 | 591 | 605 |
| WB WHEEL BASE [MM] | 1056 | 1078 | 1099 | 1120 |
| SH STAND OVER HEIGHT [MM] | 649 | 689 | 740 | 778 |
