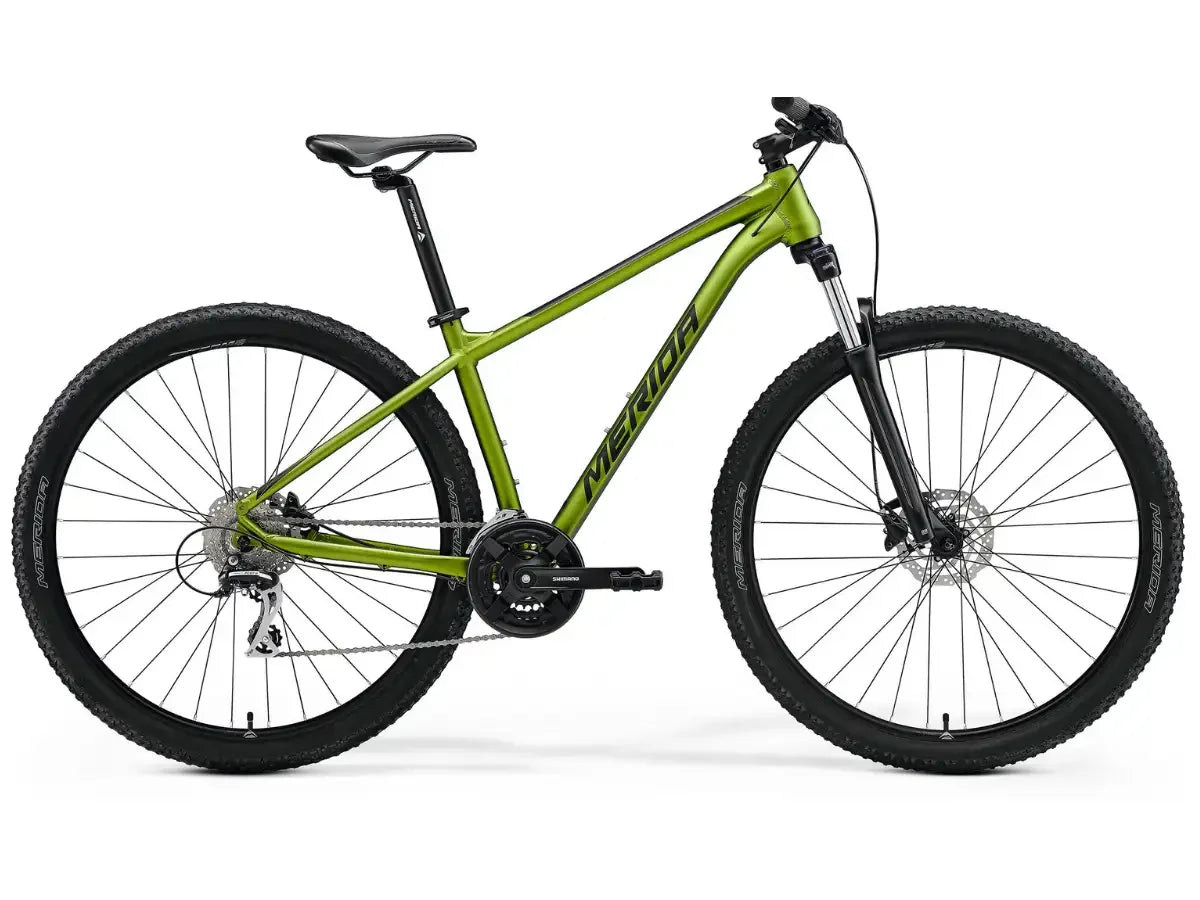

BIG SEVEN 20-3X

by Merida
Rs. 54,990.00
Color: Matt Fall Green/Black
Size

Notify me when back in stock

Description

Aluminium hardtail, sporting easy to accelerate and nimble 27.5" wheels, our more comfort-focused geometry, 100 mm of front suspension and a double chainset setup, giving you plenty of gears to choose from and lots of comfort and control.

Double chainring equipped entry-level 27.5" aluminium hardtail featuring a more upright and, therefore, more comfortable riding position than our more race-focused hardtails. The riding position puts less strain on the lower back and also improves the visibility of what lies ahead. A 100 mm suspension fork from SR Suntour and hydraulic disc brakes improve comfort and control even further.

The alternative to our BIG.NINE 29er hardtails for riders who prefer the smaller 27.5"" wheels. The latest aluminium frame generation of our BIG.SEVEN TFS and SPEED mountain bikes featuring slim tube shapes create a new look and a more relaxed geometry. A shorter top tube and a higher head tube offering a more upright riding position and enhanced trail visibility. Similarly to our 29er wheeled BIG.NINE range, our classic BIG.SEVEN hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we could gain in almost half a century of bike production and manufacturing. They symbolise the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan'.

Features
  • Double butted aluminium frame with 27.5" wheels
  • Less aggressive and more upright geometry for maximum control and comfort
  • SR Suntour 100 mm travel suspension fork with lockout
  • Shimano 8-speed drivetrain with double chainring setup
  • Hydraulic disc brakes. Internal cable routing
Specifications
  • Wheel Size- 27.5"
  • Braking System- Hydraulic Disc
  • Frame Material- Aluminium
  • Fork Material- Aluminium
Components
  • Frame- BIG.SEVEN TFS III, material: aluminium, 27.5x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard,
  • Fork- SR Suntour XCT30 HLO, Coil, 100mm suspension travel, Lockout, 27.5x2.25" max. wheelsize
  • Bottom Bracket- FSA TH-7420ST-W, Cartridge Bearing
  • Chain- Sunrace M84
  • Crank- Shimano TY301, 42-34-24 teeth, 170 mm-XS/S, 175 mm-M/L
  • Front Derailleur- Shimano FD-TY700
  • Rear Derailleur- Shimano RD-M360
  • Grips/Bartape- MERIDA EC
  • Handlebar- MERIDA CC, material: aluminium, 690mm width, 15mm rise
  • Stem- MERIDA CC, material: aluminium, 31.8mm diameter, 6° stem angle, 70 mm-XS/S, 80 mm-M, 90 mm-L
  • Saddle- MERIDA Sport comfort
  • Seatpost- MERIDA CC, material: aluminium, 30.9mm diameter, 15mm setback
  • Front Brake- Power DS100, 2 piston, hydraulic disc brake
  • Rear Brake- Power DS100, 2 piston, hydraulic disc brake
  • Tire- MERIDA K1080, 27.5x2.2", wire
  • Pedal- VP VPE-891
Geometry
FRAME SIZE XS S M L
TYRE SIZES 27.5" 27.5" 27.5" 27.5"
ST SEAT TUBE [MM] 340 380 440 480
TT TOP TUBE [MM] 550 570 590 610
CS CHAIN STAY LENGTH [MM] 430 430 430 430
HTA HEAD TUBE ANGLE [°] 69 69 69 69
STA SEAT TUBE ANGLE [°] 73 73 73 73
BD BOTTOM BRACKED DROP [MM] 30 30 30 30
HT HEAD TUBE [MM] 100 115 130 145
FL FORK LENGTH [MM] 487 487 487 487
R REACH [MM] 378 394 409 425
S STACK [MM] 563 577 591 605
WB WHEEL BASE [MM] 1056 1078 1099 1120
SH STAND OVER HEIGHT [MM] 649 689 740 778
