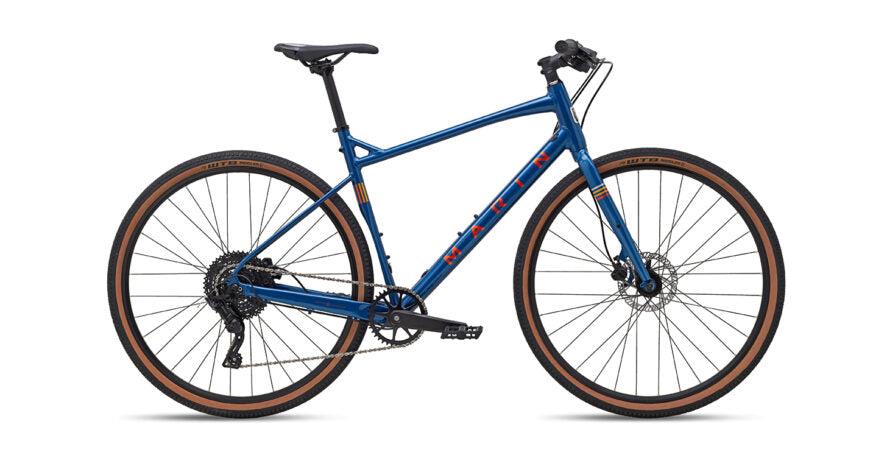

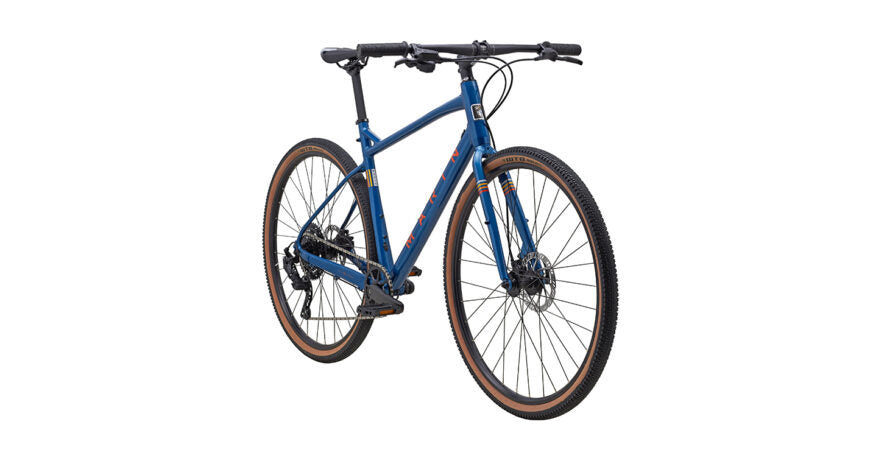

DSX 700C (BLUE/ORANGE) from Marin

DESCRIPTION

The DSX is the mountain biker’s gravel bike with familiar hand positioning, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.

SPECIFICATIONS

Intended Use- Gravel
Wheel Size- 700c
Braking System- Hydraulic Disc
Frame Material- Aluminium
Fork Material- Aluminium

Frame- Series 2 DSX, 6061 Aluminum, Internal Cable Routing, Mudguard and Rack Mounts, IS Disc Mount
Fork- 6061 Aluminum, Straight-Blade, Disc Mount, Fender and Rack Eyelets
Bottom Bracket- Sealed Cartridge Bearings, Square Taper
Chain- KMC X9
Crank- Alloy Crank, Steel Narrow-Wide Chainring, 38T
Shift Levers- MicroSHIFT Advent 9 Trail
Cassette- SunRace 9-Speed, 11-46T
Rear Derailleur- MicroSHIFT Advent 9, Clutch
Grips/Bartape- Marin MTB
Handlebar- Marin MiniRiser
Stem- Marin 3D Forged Alloy
Saddle- Marin DSX
Seatpost- Marin Alloy
Front Brake- Tektro HD-M275 Hydraulic Disc, 160mm Rotor
Rear Brake- Tektro HD-M275 Hydraulic Disc, 160mm Rotor
Front Wheel- Marin Aluminum Double Wall, Disc Specific
Rear Wheel- Marin Aluminum Double Wall, Disc Specific
Tire- WTB Riddler, 700Cx45mm
Pedal- Commute Platform

	S	M	L	XL
A STACK	544.4	572.5	600.6	628.7
B REACH	380	405	420	435
C HEADTUBE ANGLE	69.5°	69.5°	69.5°	69.5°
D HEADTUBE LENGTH	120	150	180	210
E SEATTUBE ANGLE	74°	74°	74°	74°
F SEATTUBE LENGTH	430	480	520	558
G TOPTUBE EFFECTIVE	536.1	569.2	592.2	615.3
H BB HEIGHT	279.5	279.5	279.5	279.5
I BB DROP	80	80	80	80
J CHAINSTAY	425	425	425	425
K WHEELBASE	1024.42	1060	1085.4	1110.9
L STANDOVER HEIGHT	658.76	700.51	730.39	758.5
M FORK OFFSET	50	50	50	50
SEATPOST DIAMETER	27.2	27.2	27.2	27.2
HANDLEBAR WIDTH	640	680	680	680
STEM LENGTH	70	70	70	70
CRANK LENGTH	170	175	175	175
