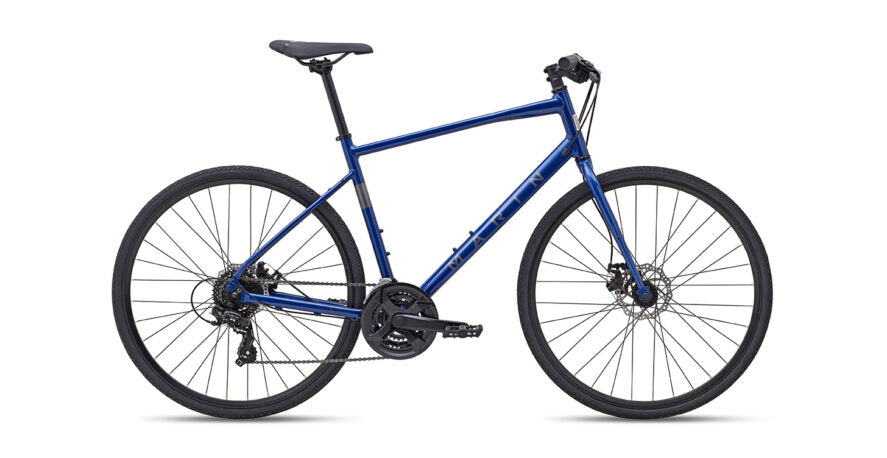

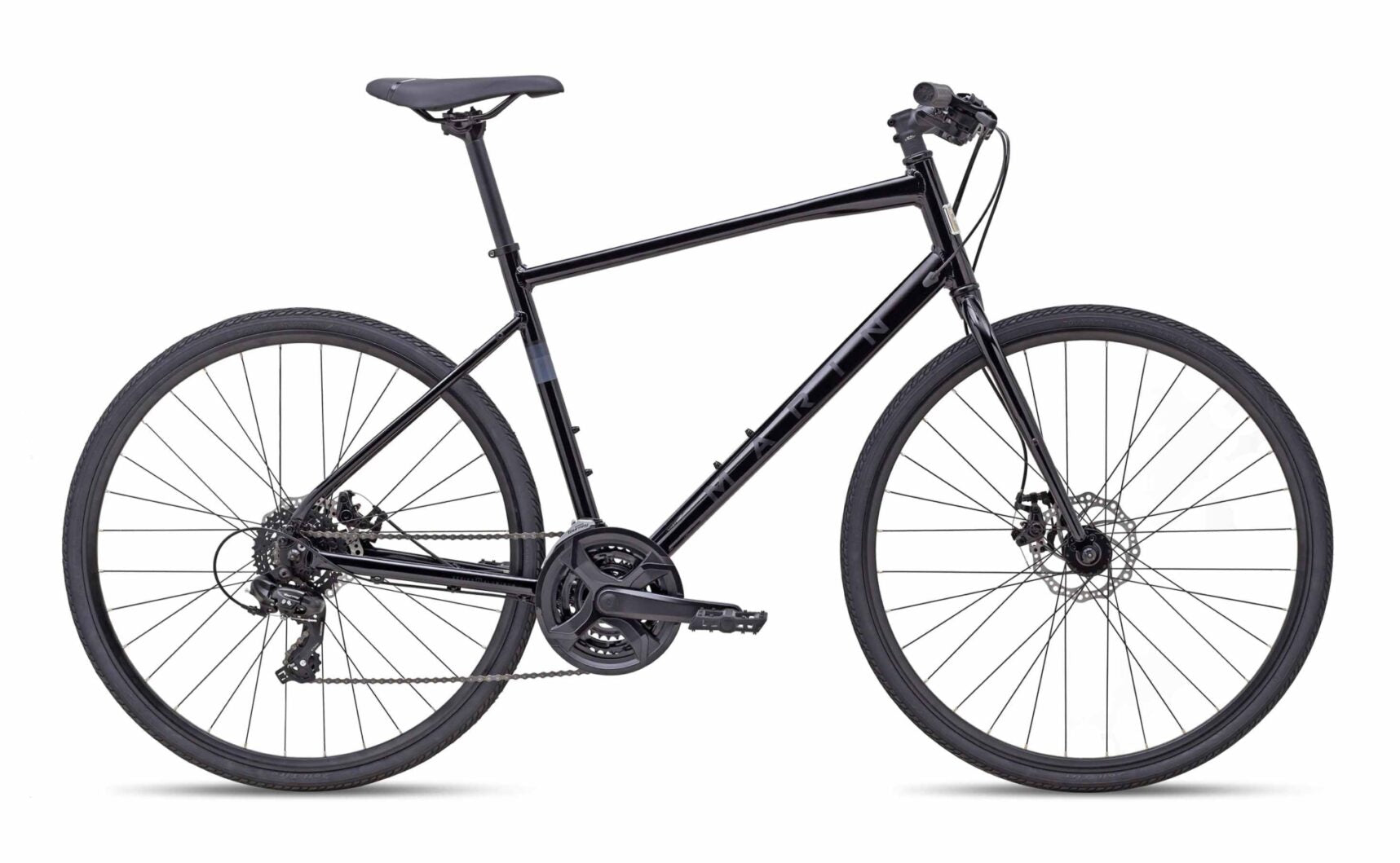

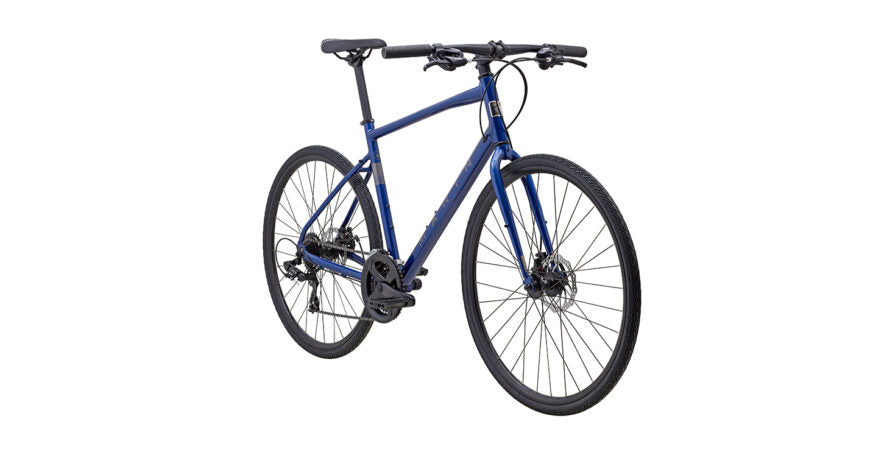

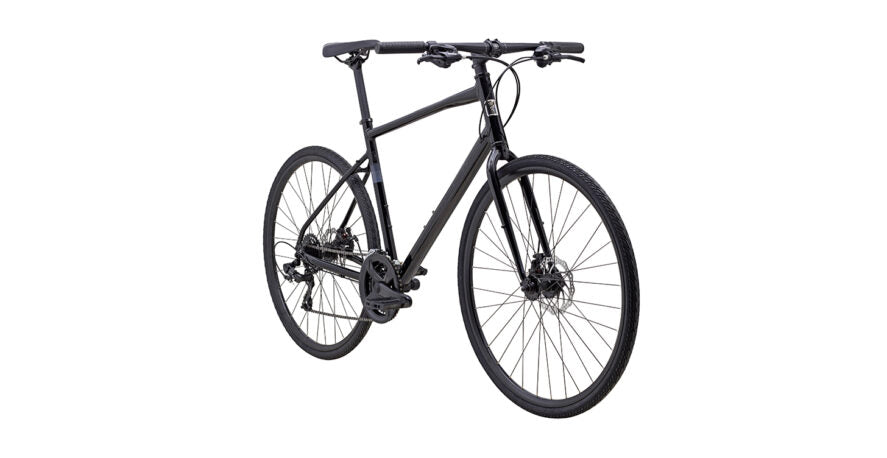

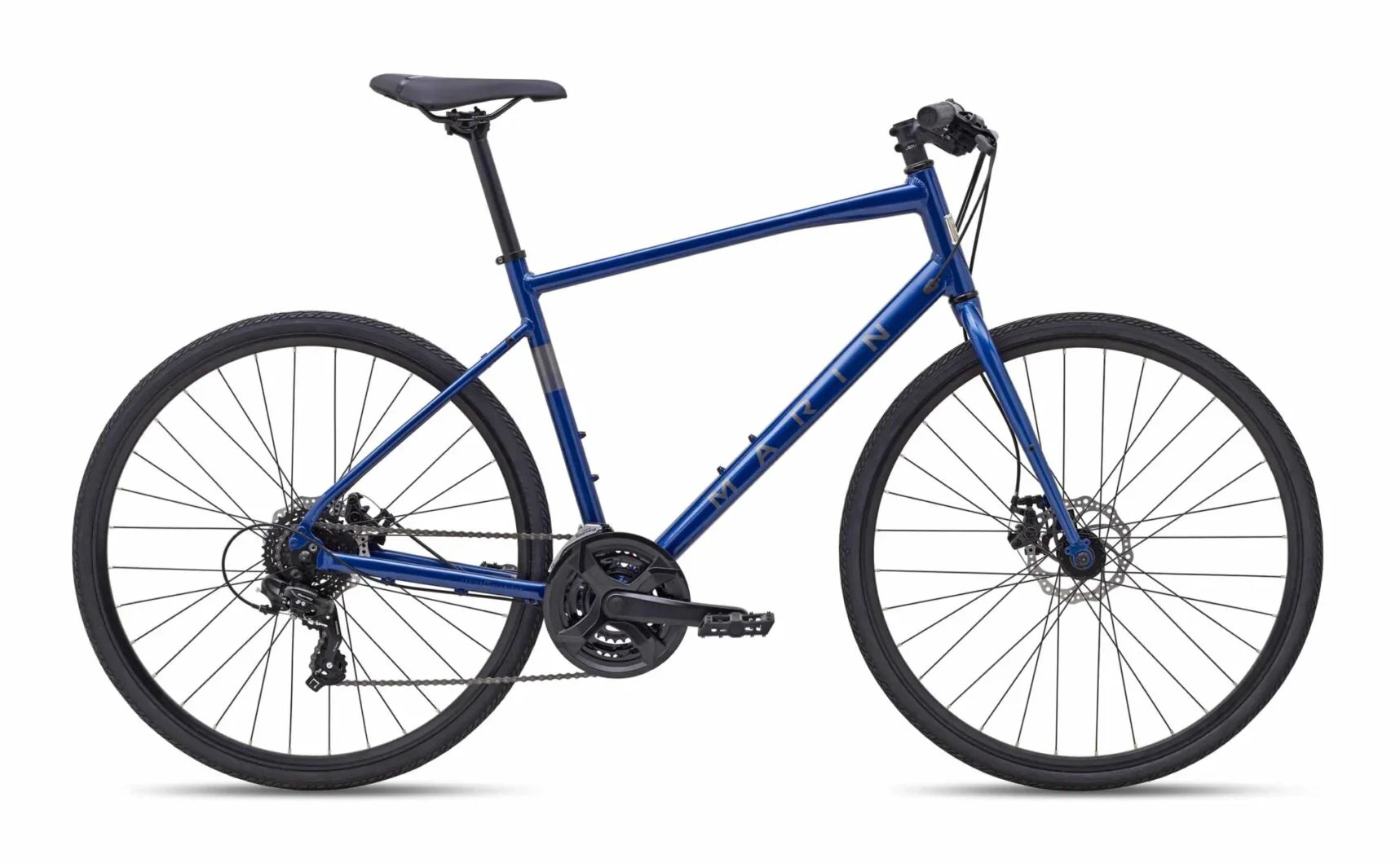

FAIRFAX 1
DESCRIPTION
Marin Fairfax 1, built for the flat-bar road/fitness/hybrid rider. Named "Best Hybrid" by Wirecutter, built around a lightweight Series 1 aluminum step through frame, stout chromoly fork, and a dependable Shimano drivetrain.
SPECIFICATIONS
- Intended Use- Commuting
- Wheel Size- 700c
- Braking System- Mechanical Disc
- Frame Material- Aluminium
- Fork Material- Steel
- Frame- Series 1 Fitness, 6061 Aluminum, 700C Wheels, Disc Brake, Internal Cable Routing, Fender, Rack and Kickstand Mounts
- Fork- Cr-Mo Steel, Straight Blade, Disc Mount, Fender and Rack Eyelets
- Bottom Bracket- Sealed Cartridge Bearings, Square Taper
- Chain- KMC Z8
- Crank- Alloy Crank, Steel Chainrings, 48/38/28T, Ring Guard
- Shift Levers- Shimano Shifter/Brake Lever Combo, 3x7-Speed
- Cassette- SunRace 7-Speed, 11-34T
- Front Derailleur- Shimano TY510
- Rear Derailleur- Shimano Tourney, 7-Speed
- Grips/Bartape- Marin Commute
- Handlebar- Marin Alloy, 30mm Rise
- Stem- Marin Alloy Threadless
- Saddle- Marin Fitness Plush
- Seatpost- Marin Alloy, 27.2mm
- Front Brake- Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
- Rear Brake- Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
- Front Wheel- Marin Aluminum Double Wall, Disc Specific
- Rear Wheel- Marin Aluminum Double Wall, Disc Specific
- Tire- Fitness 700Cx35mm
- Pedal- Commute Platform
XS | S | M | L | XL | |
A STACK | 557 | 571.3 | 590 | 609 | 637.3 |
B REACH | 385 | 400 | 420 | 440 | 455 |
C HEADTUBE ANGLE | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
D HEADTUBE LENGTH | 140 | 155 | 175 | 195 | 225 |
E SEATTUBE ANGLE | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
F SEATTUBE LENGTH | 380 | 430 | 480 | 520 | 550 |
G TOPTUBE EFFECTIVE | 550 | 569.2 | 594.8 | 620.4 | 643.8 |
H BB HEIGHT | 283.5 | 283.5 | 283.5 | 283.5 | 283.5 |
I BB DROP | 70 | 70 | 70 | 70 | 70 |
J CHAINSTAY | 445 | 445 | 445 | 445 | 445 |
K WHEELBASE | 1050.01 | 1070 | 1096.7 | 1123.4 | 1148.4 |
L STANDOVER HEIGHT | 660.74 | 705.38 | 745.2 | 780.34 | 809.68 |
M FORK OFFSET | 50 | 50 | 50 | 50 | 50 |
SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
HANDLEBAR WIDTH | 640 | 640 | 680 | 680 | 680 |
STEM LENGTH | 70 | 70 | 70 | 70 | 70 |
CRANK LENGTH | 170 | 170 | 175 | 175 | 175 |
