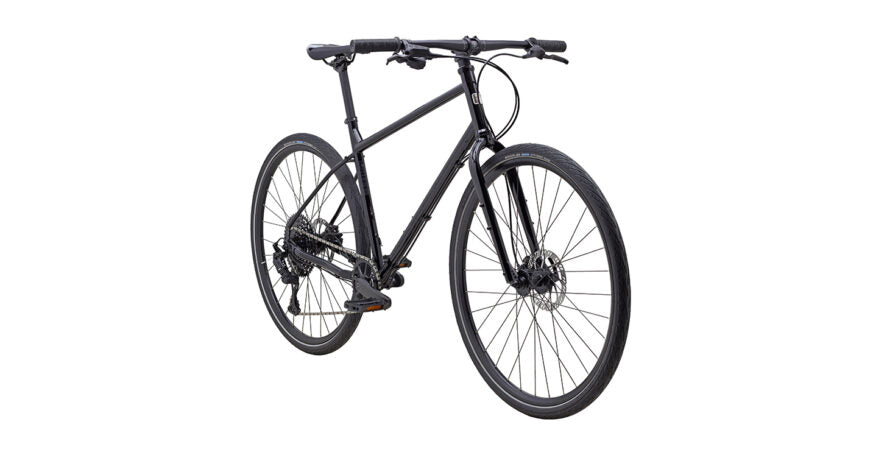

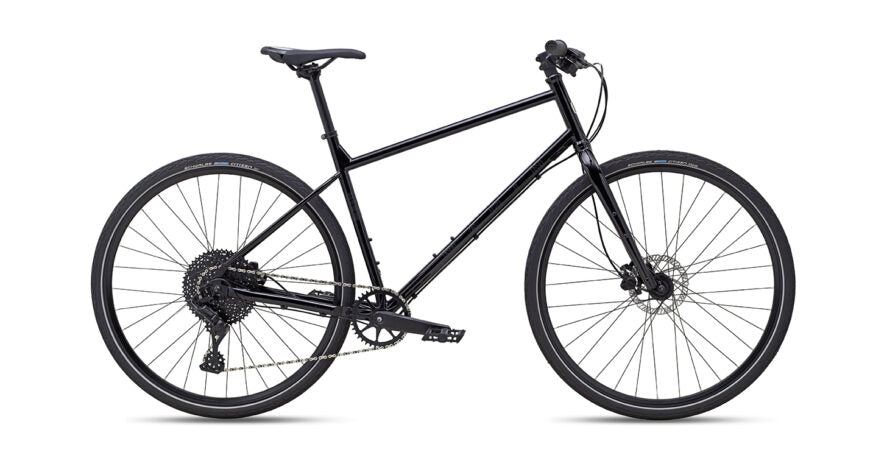

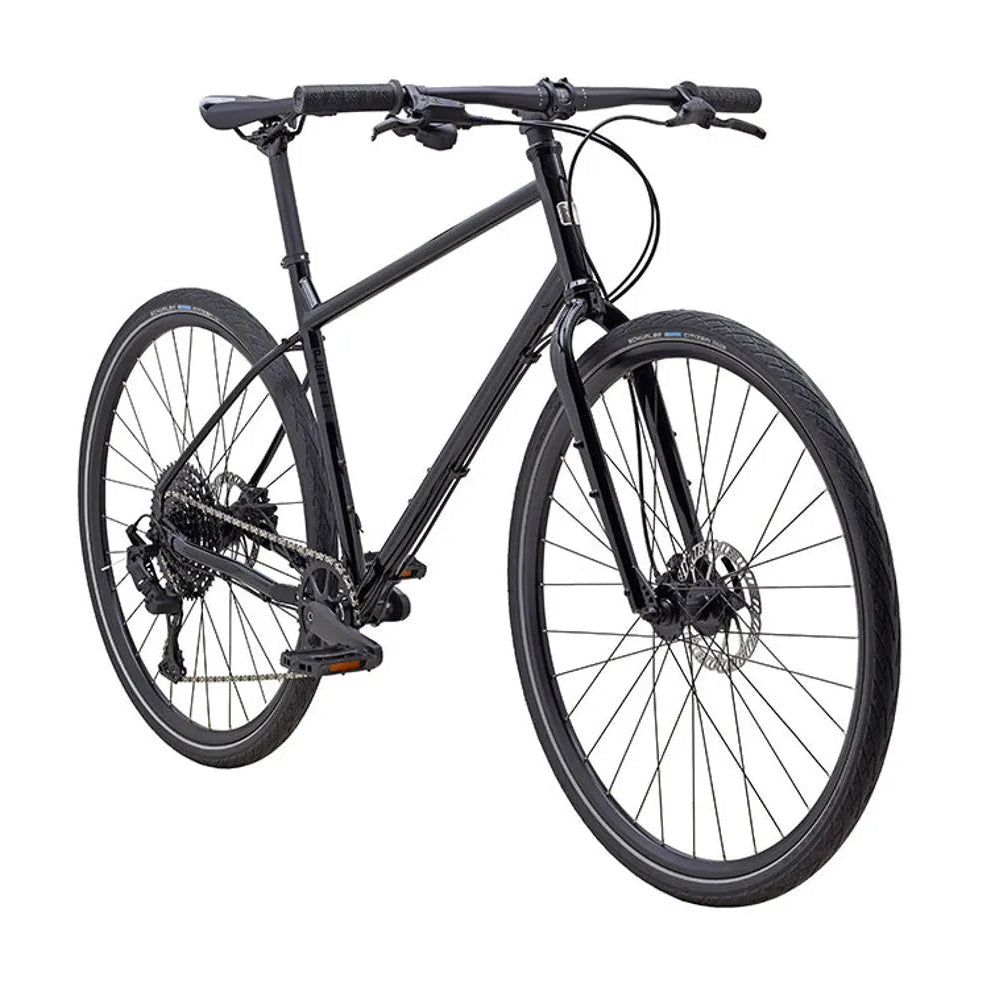

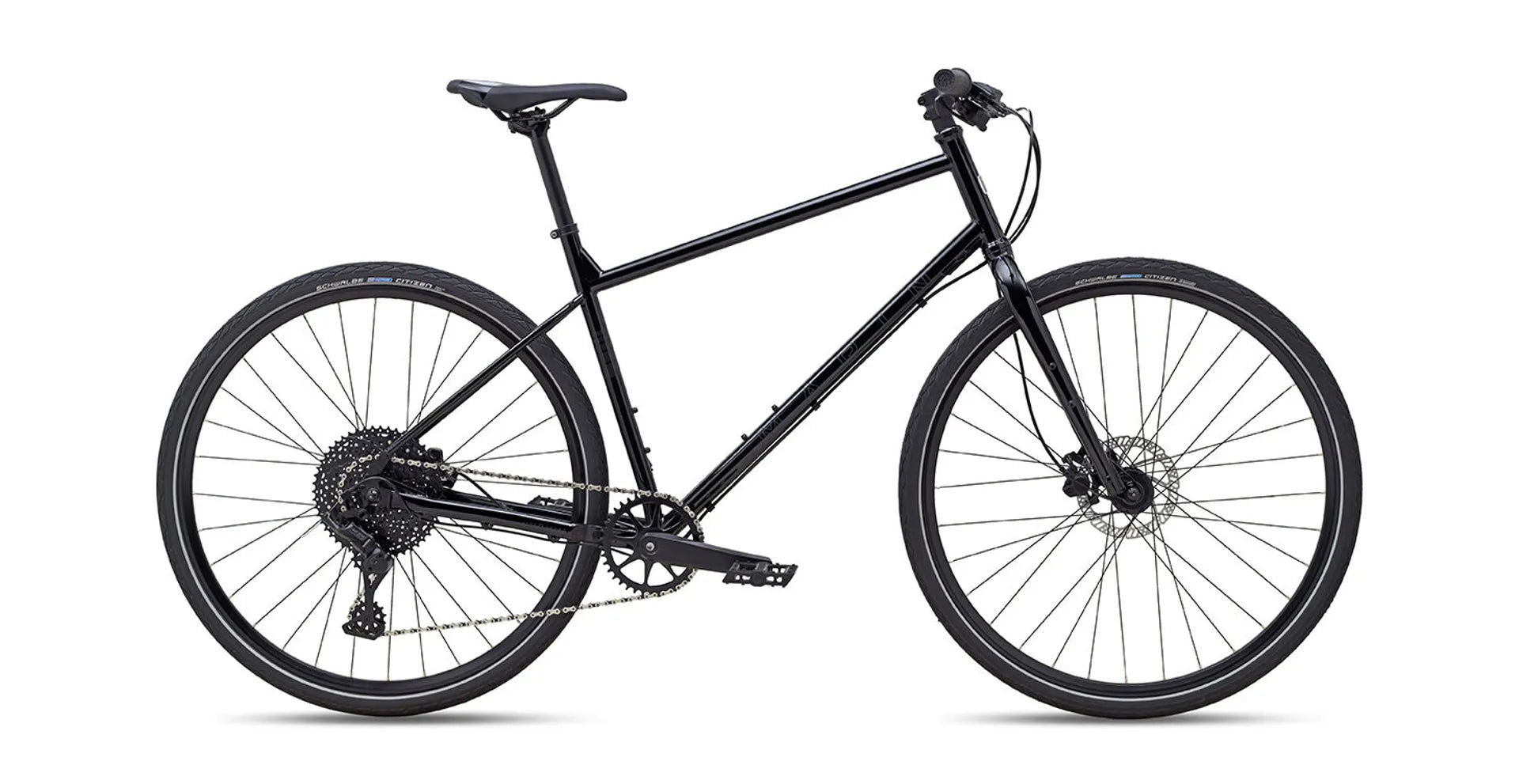

MUIRWOODS
DESCRIPTION
The Muirwoods is at home in the concrete jungle, built for jumping curbs and cutting through a park on the way to the grocery store or class. This is the classic bike shop employee commuter bike built for the everyday rider.
SPECIFICATIONS
- Intended Use- Fitness
- Wheel Size- 700c
- Braking System- Hydraulic Disc
- Frame Material- Steel
- Fork Material- Steel

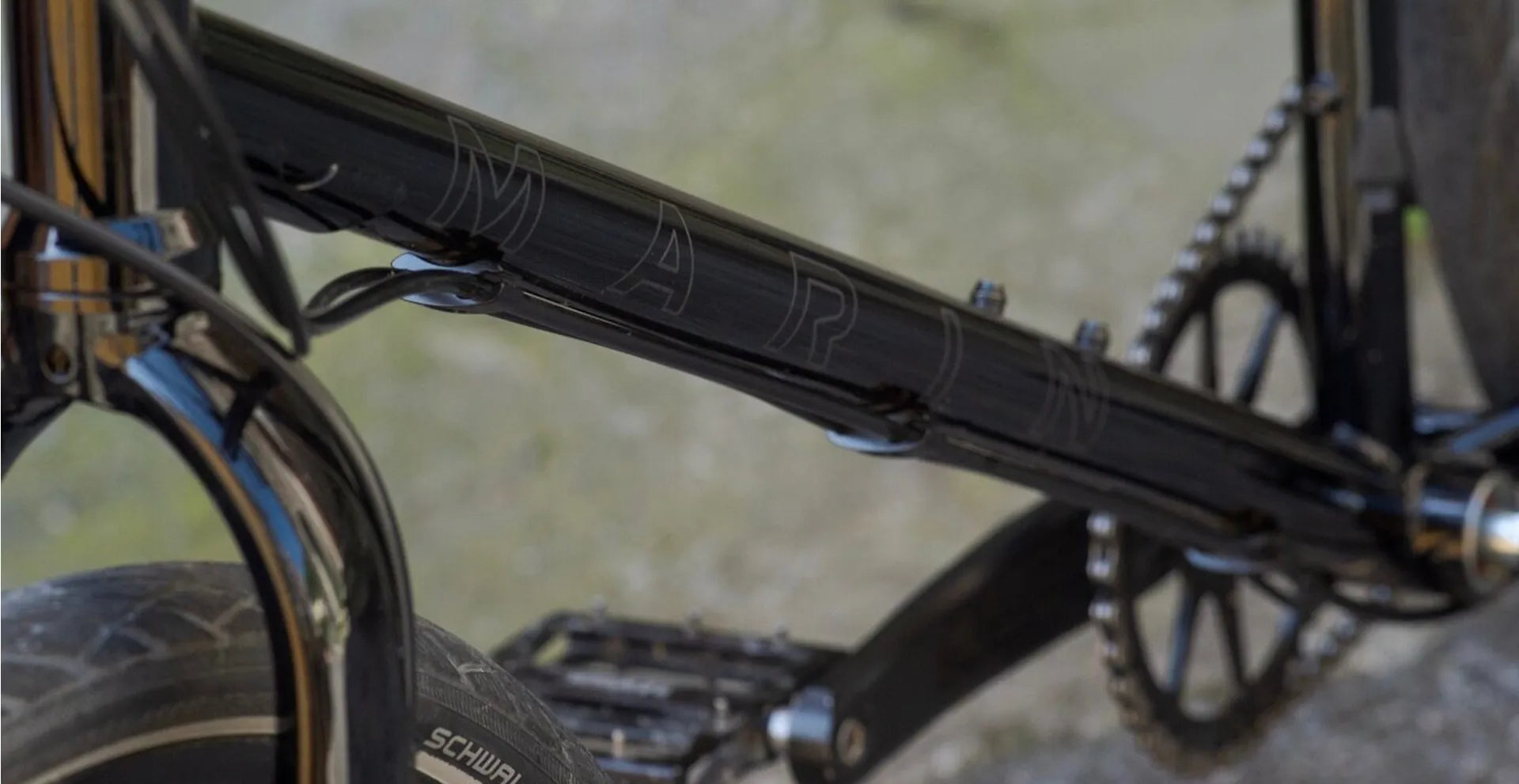

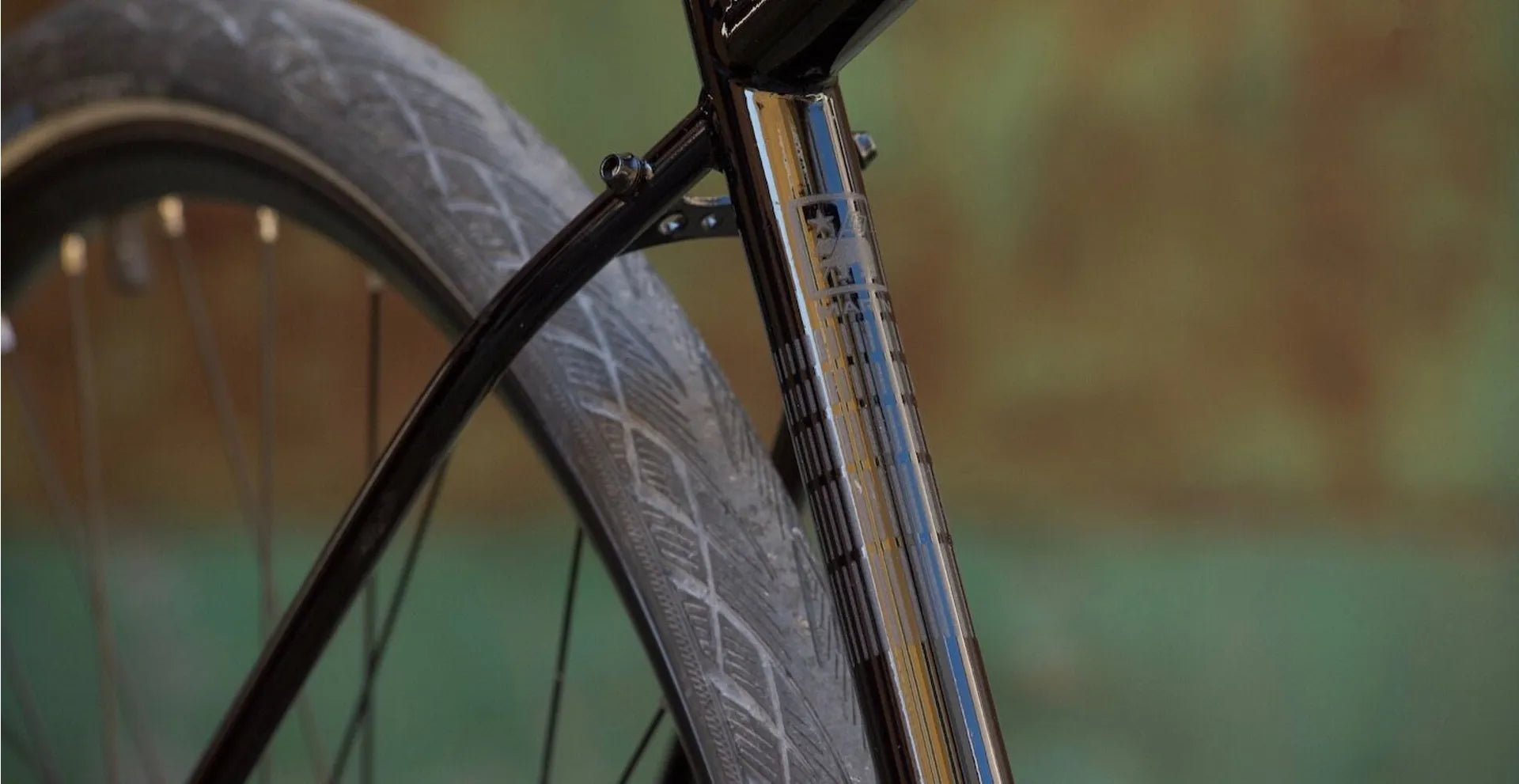

- Frame- Series 1 Butted CrMo, 29” Wheels, Integrated Headset, Disc Brake, Fender and Rack Mounts
- Fork- CrMo Steel, Moto Blade, Disc Specific, Fender and Rack Eyeletsa

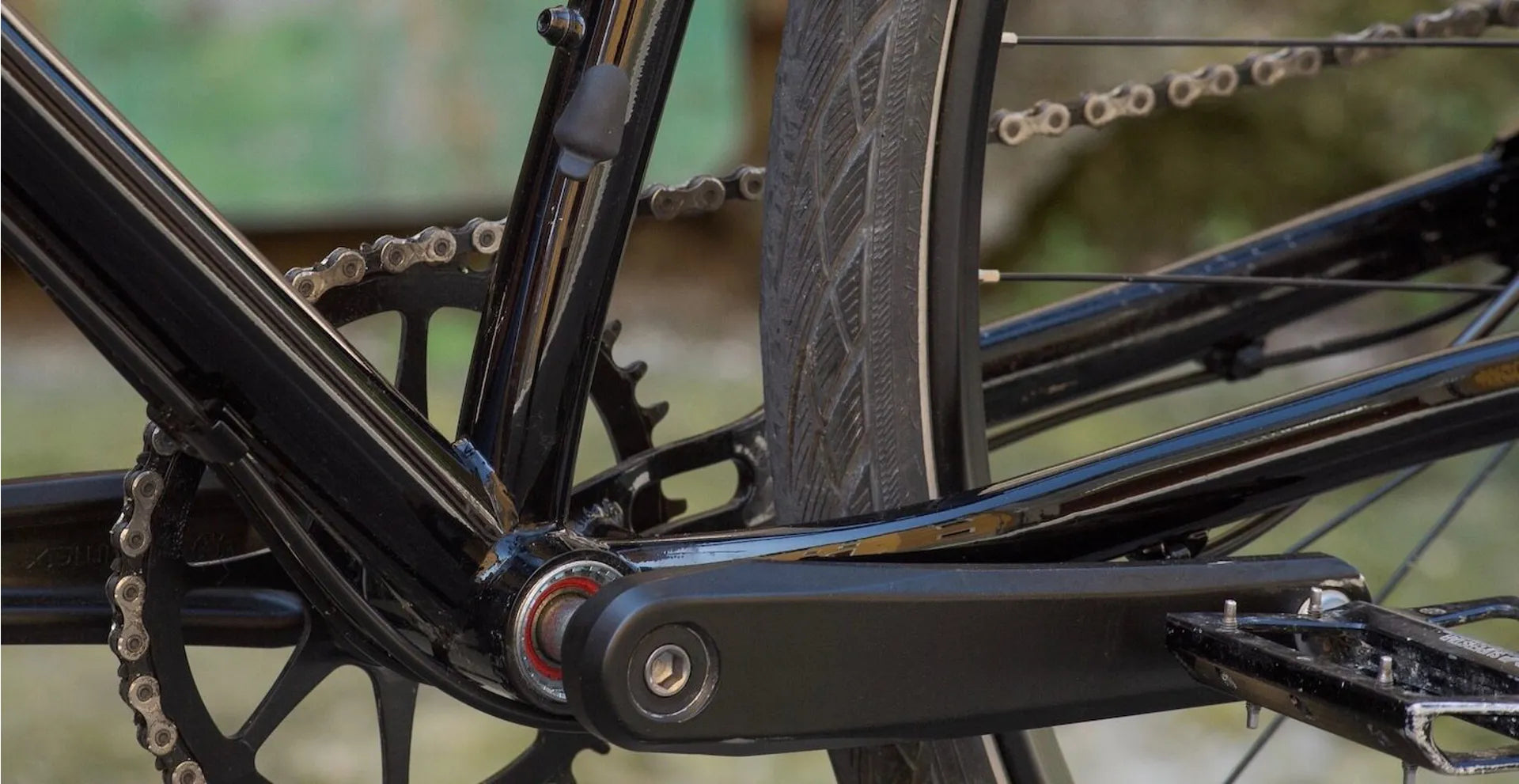

- Bottom Bracket- Sealed Cartridge Bearings, Square Taper

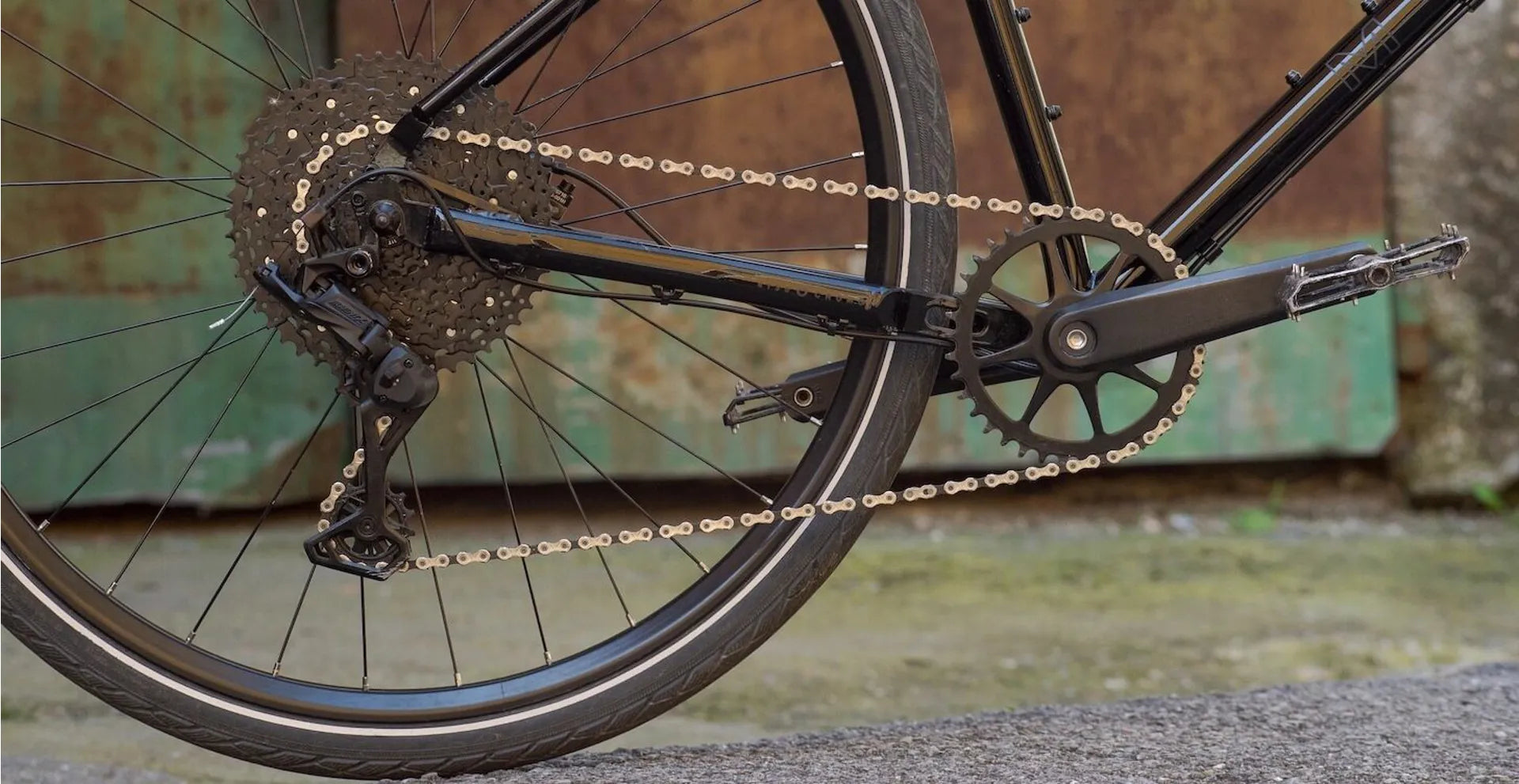

- Chain- KMC X10
- Crank- Forged Alloy Crank, Steel Narrow Wide 38T Chainring
- Shift Levers- MicroSHIFT Advent X 10-Speed Trail
- Cassette- SunRace 10-Speed, 11-51T
- Rear Derailleur- MicroSHIFT Advent X 10-Speed
- Grips/Bartape- Marin Custom
- Handlebar- Marin Alloy Mini Riser
- Stem- Marin Alloy, 31.8mm Clamp
- Saddle- Marin MTB
- Seatpost- Marin Alloy, 27.2mm
- Front Brake- Tektro M275 Hydraulic Disc, 180mm Rotor

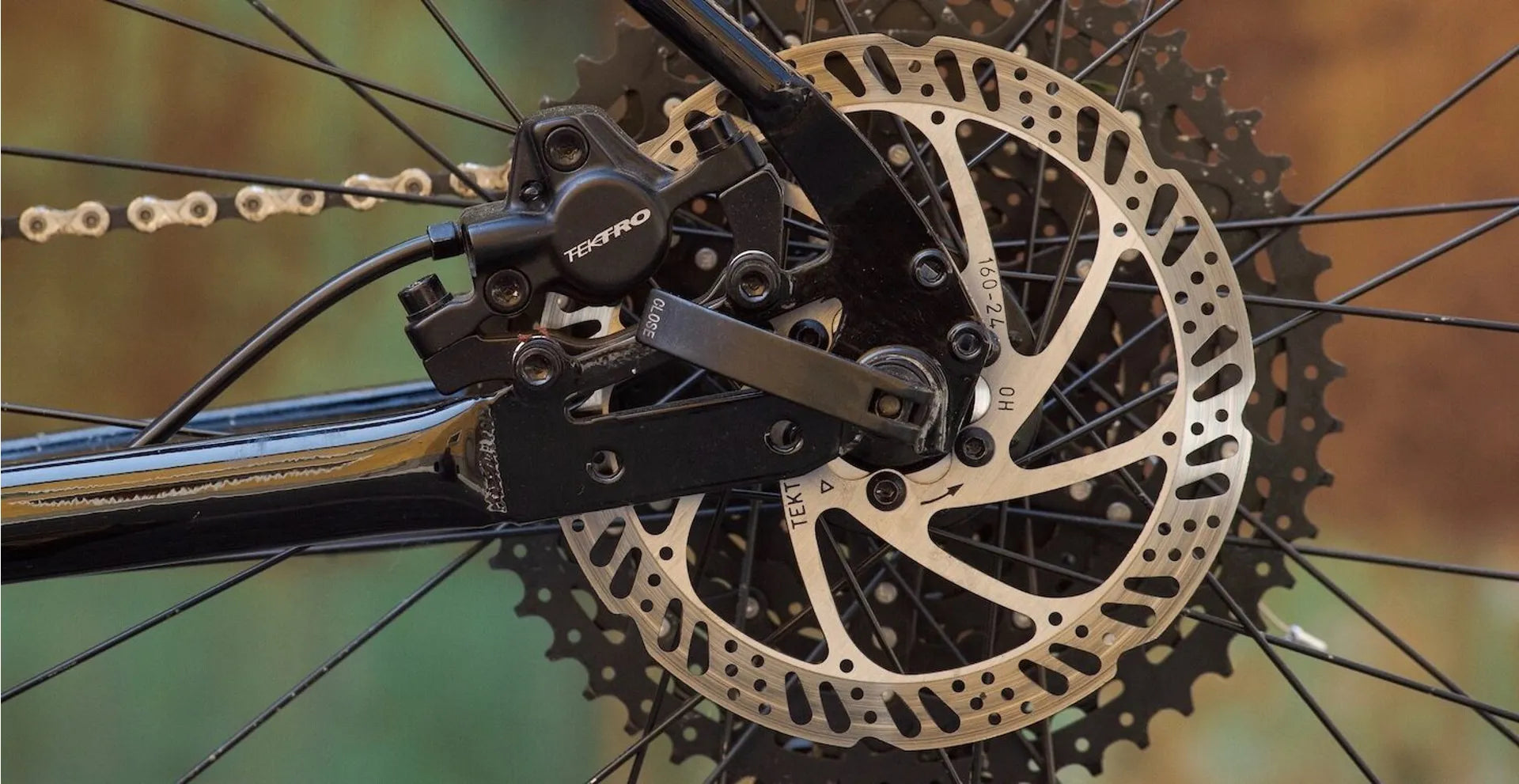

- Rear Brake- Tektro M275 Hydraulic Disc, 160mm Rotor
- Front Wheel- Marin Aluminum, Double Wall, Disc Specific
- Rear Wheel- Marin Aluminum, Double Wall, Disc Specific
- Tire- Schwalbe Citizen, 700x42
- Pedal- Commute Platform
S | M | L | XL | XXL | |
A STACK | 567 | 574 | 583 | 593 | 612 |
B REACH | 387 | 420 | 432 | 434 | 431 |
C HEADTUBE ANGLE | 71° | 72° | 72° | 72° | 72° |
D HEADTUBE LENGTH | 123 | 123 | 133 | 143 | 163 |
E SEATTUBE ANGLE | 74° | 73.5° | 73.5° | 73° | 72° |
F SEATTUBE LENGTH | 381 | 432 | 483 | 521 | 559 |
G TOPTUBE EFFECTIVE | 550 | 590 | 605 | 615 | 630 |
H BB HEIGHT | 283 | 283 | 283 | 283 | 283 |
I BB DROP | 70 | 70 | 70 | 70 | 70 |
J CHAINSTAY | 445 | 445 | 445 | 445 | 445 |
K WHEELBASE | 1052 | 1070 | 1086 | 1090 | 1094 |
L STANDOVER HEIGHT | 663 | 705 | 748 | 779 | 811 |
M FORK OFFSET | 51 | 45 | 45 | 45 | 45 |
SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
HANDLEBAR WIDTH | 680 | 680 | 680 | 700 | 700 |
STEM LENGTH | 70 | 70 | 90 | 90 | 110 |
CRANK LENGTH | 170 | 175 | 175 | 175 | 175 |
