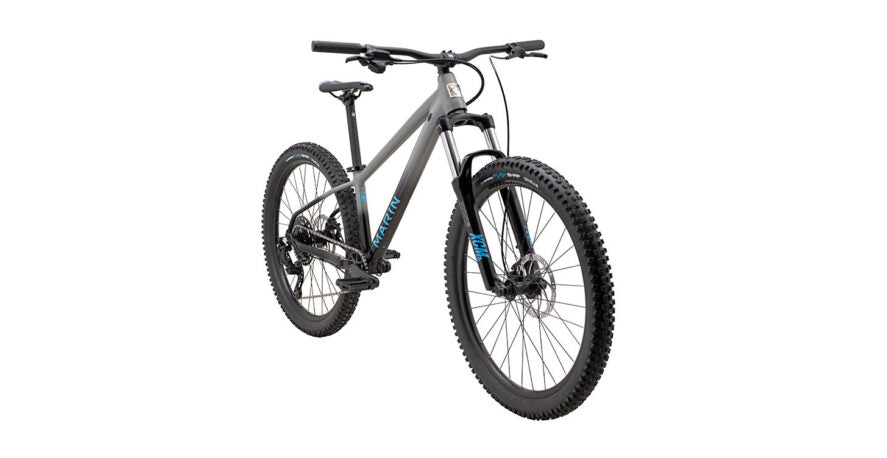

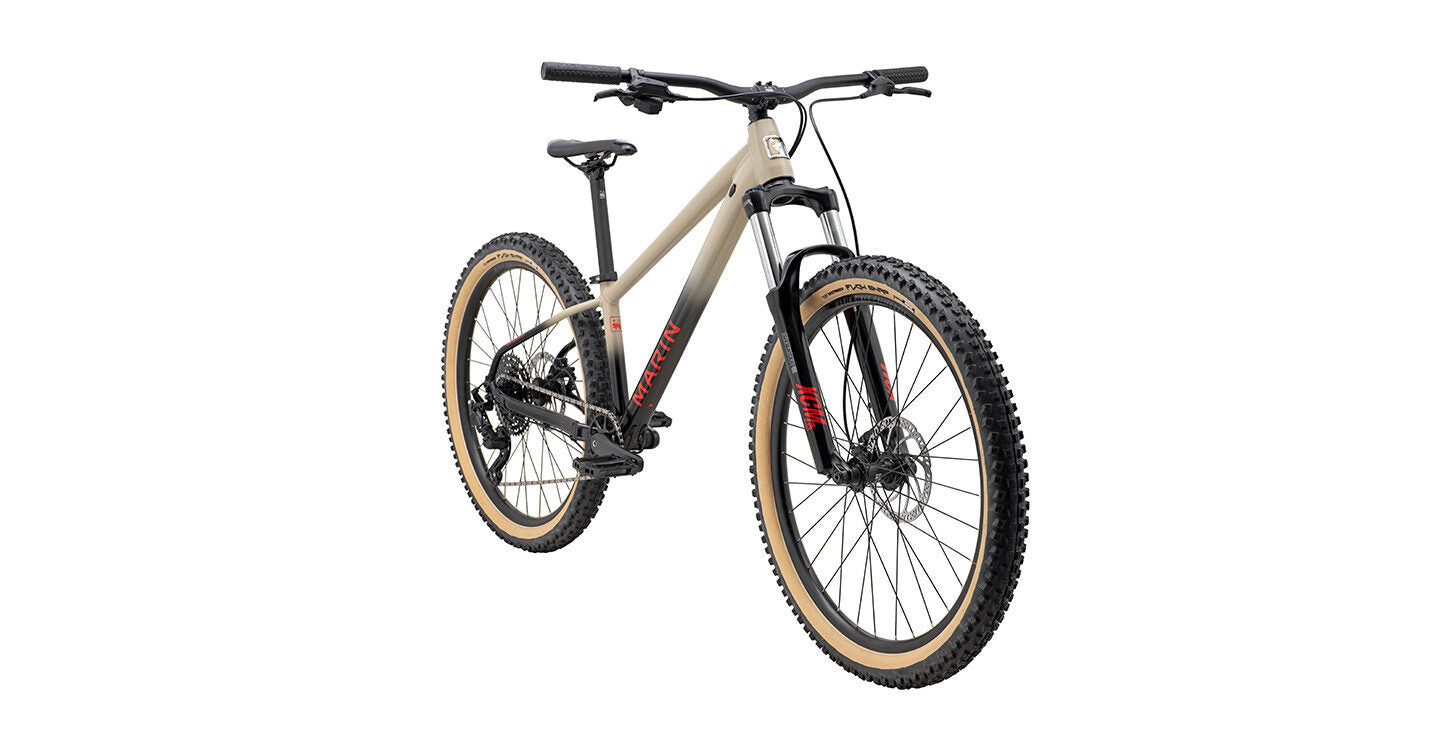

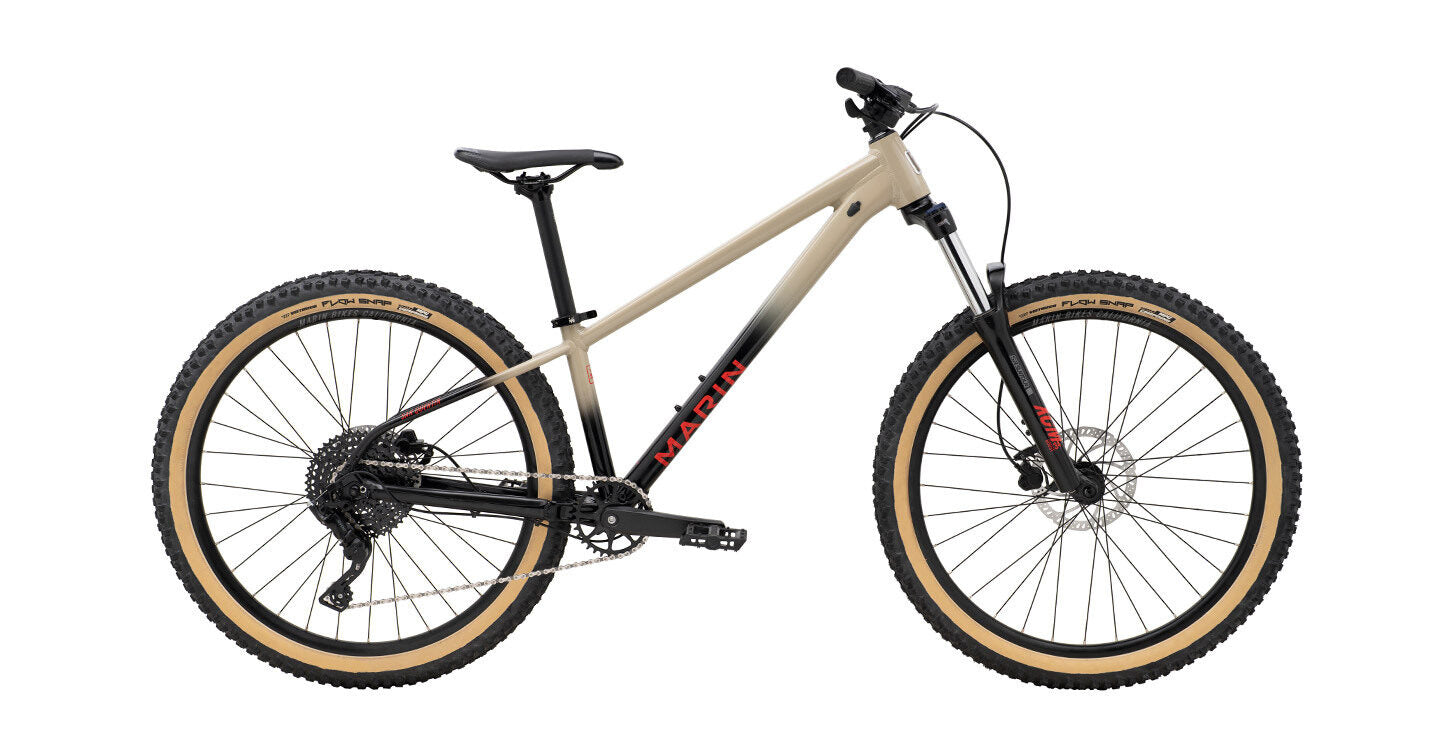

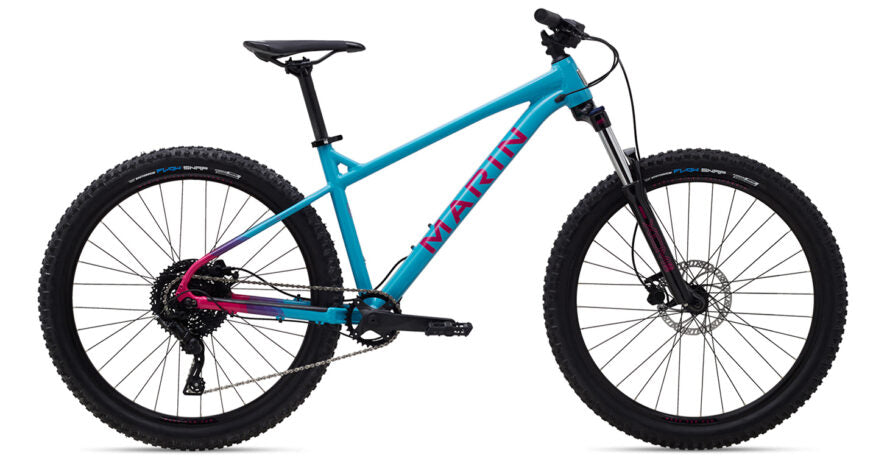

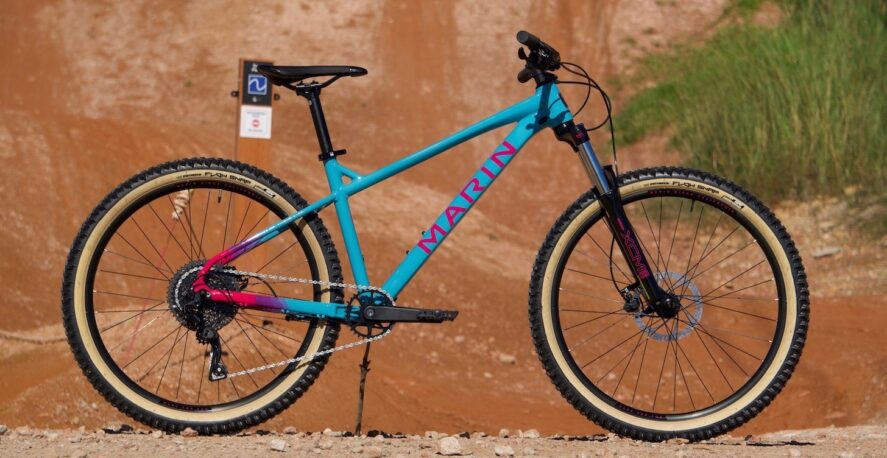

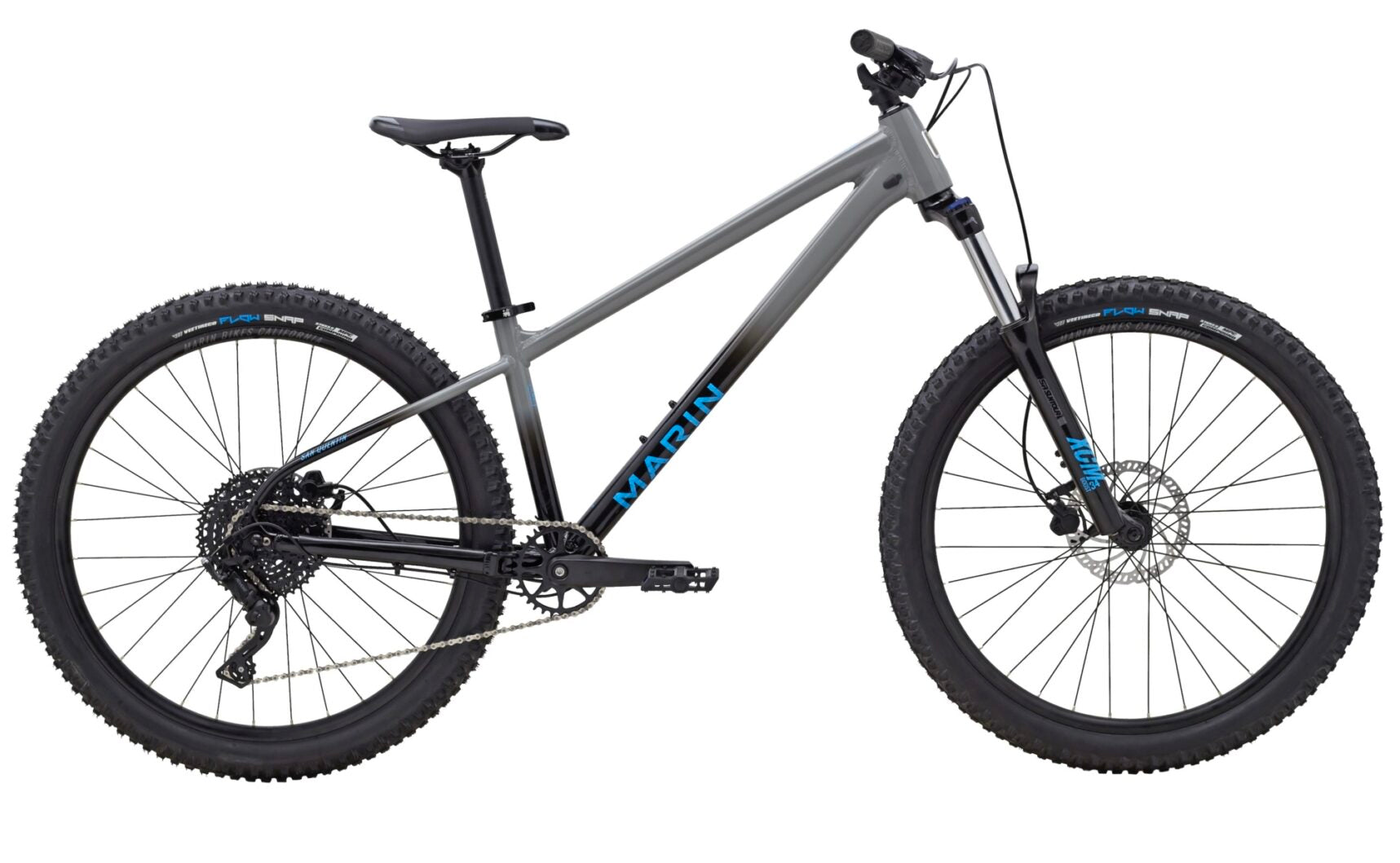

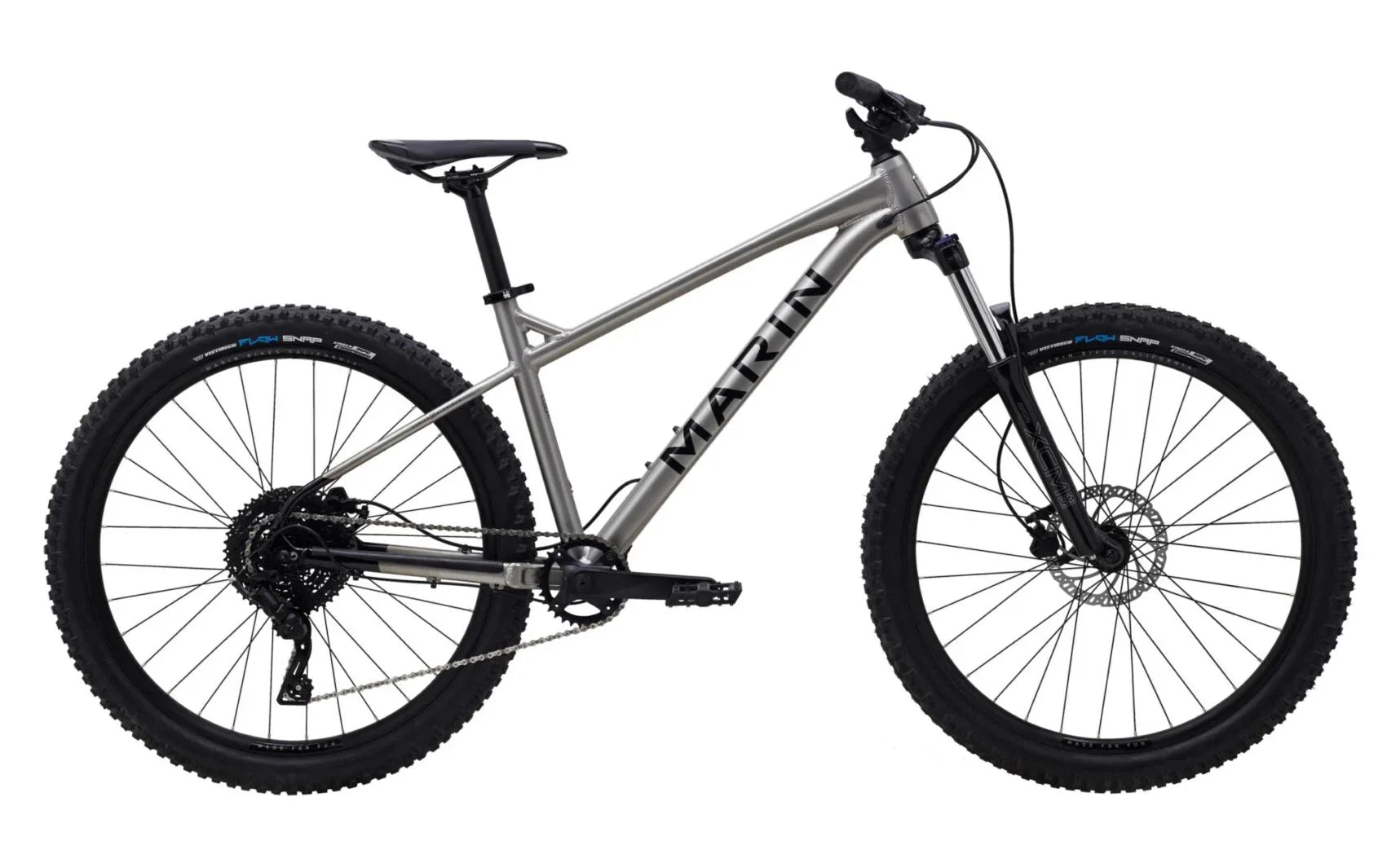

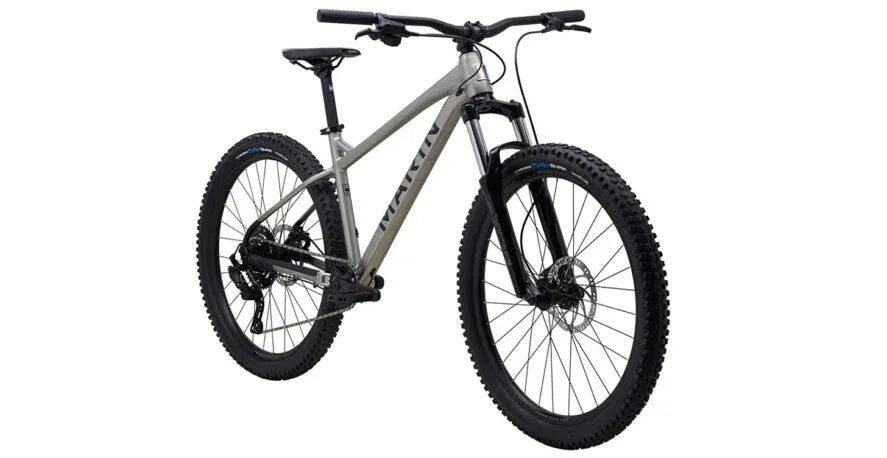

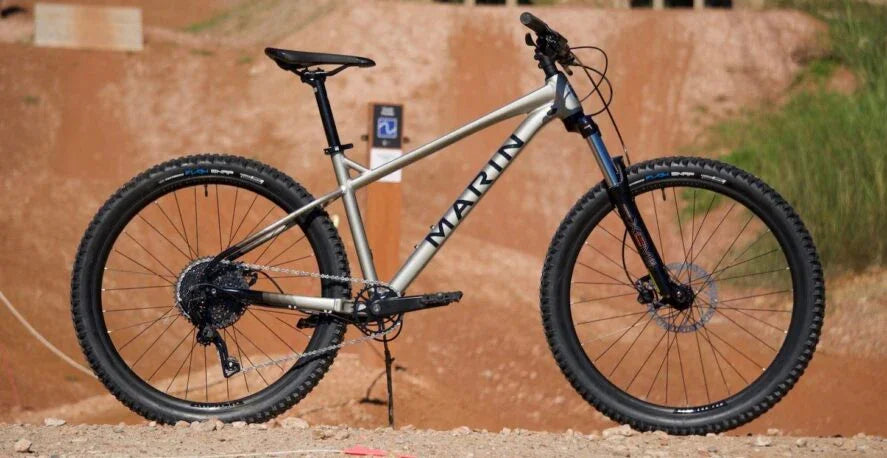

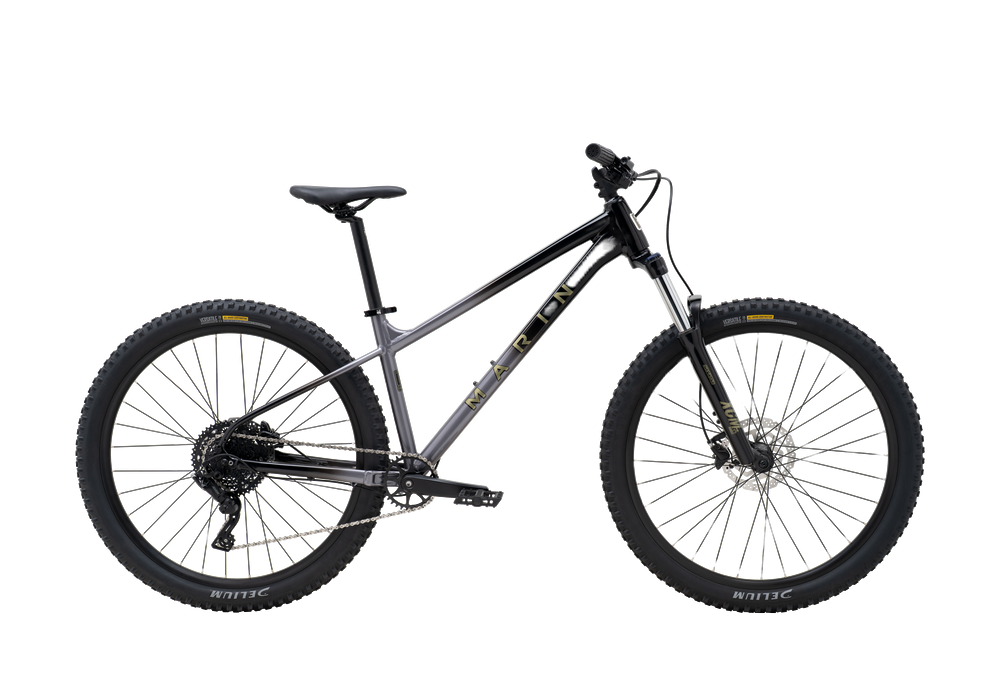

SAN QUENTIN 1

by Marin
Rs. 69,999.00
Color: Grey
Tire Size
Size

Notify me when back in stock

DESCRIPTION

The San Quentin is for the aggressive hardtail trail rider looking for a blend between singletrack capabilities and extended air time.

SPECIFICATIONS
  • Intended Use- Cross Country
  • Wheel Size- 27.5"
  • Braking System- Hydraulic Disc
  • Frame Material- Aluminium
  • Fork Material- Aluminium
  • Frame- Series 2 6061 Aluminum, Double Butted Frame, 141mm Open Dropout, 73mm Threaded BB
  • Bottom Bracket- Sealed Cartridge Bearing, Square Taper
  • Chain- KMC X-9
  • Crank- Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
  • Shift Levers- MicroShift SL-M9195-R, 1x9 with Bearings
  • Cassette- Sunrace, 9 Speed, 11-46T
  • Rear Derailleur- MicroShift RD-M9195M, 9 Speed, With Clutch
  • Grips/Bartape- Marin MTN, Closed End
  • Handlebar- Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
  • Stem- Marin Alloy, 45mm
  • Saddle- Marin Speed Concept
  • Seatpost- Marin Alloy, 30.9mm
  • Front Brake- Tektro M275 Hydraulic Disc Brake, 180mm Rotor
  • Rear Brake- Tektro M275 Hydraulic Disc Brake, 160mm Rotor
  • Front Wheel- Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H Tubeless Compatible
  • Rear Wheel- Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H Tubeless Compatible
  • Tire- Vee Tire Co, Flow Snap, 27.5x2.6", MPC Compound, Wire Bead
  • Pedal- Nylon Platform
S M L XL
A STACK 586.1 590.7 599.7 604.3
B REACH 422 444 464 484
C HEADTUBE ANGLE 65° 65° 65° 65°
D HEADTUBE LENGTH 105 110 120 125
E SEATTUBE ANGLE 75° 75° 75° 75°
F SEATTUBE LENGTH 385 430 475 515
G TOPTUBE EFFECTIVE 579.1 602.3 624.7 645.9
H BB HEIGHT 317 317 317 317
I BB DROP 50 50 50 50
J CHAINSTAY 425 425 425 425
K WHEELBASE 1144.8 1168.9 1193.1 1215.3
L STANDOVER HEIGHT 664 677 714 745
M FORK OFFSET 47 47 47 47
SEATPOST DIAMETER 30.9 30.9 30.9 30.9
HANDLEBAR WIDTH 780 780 780 780
STEM LENGTH 45 45 45 45
CRANK LENGTH 170 175 175 175
