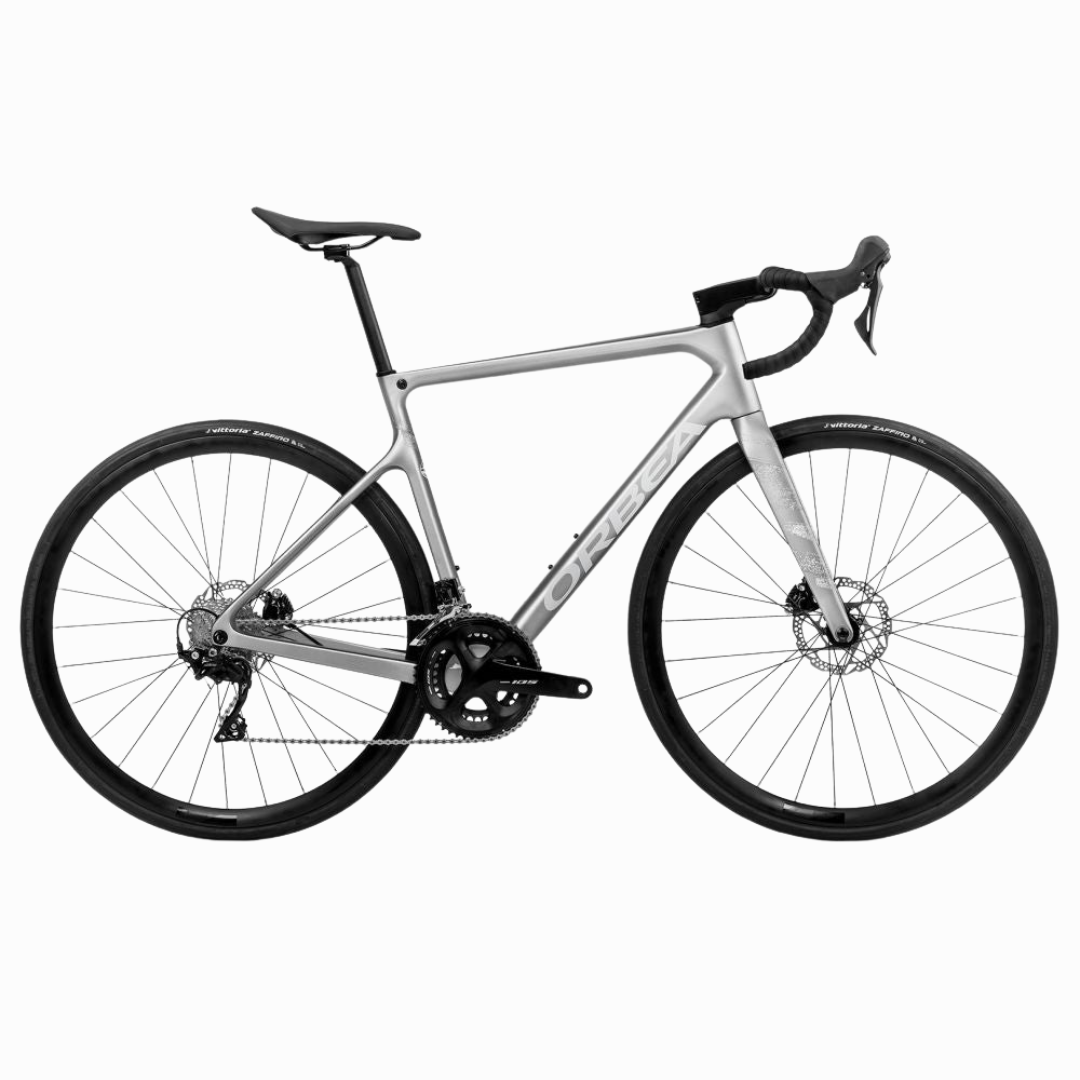

ORCA M30 105 DISC ROAD BIKE
The lightest and most capable race bike.
Performance, technology and style have always been cornerstones of cycling. We may not compete but we love the feel of a racing bike – an Orca that is light, fast and beautiful. Professional athletes, weekend warriors, Strava hunters and recreational riders all have similar aspirations – we love the machine as much as the lifestyle.
We use the most technologically advanced carbon construction available to make the most sophisticated frame possible – A complex and painstaking process with results you will appreciate in the saddle.
Orca Racing Geometry is born from almost 100 years of designing road racing bikes and is the perfect balance of responsiveness and stability. The position is aggressive to maximize body aerodynamics and efficiency. Handling is precise and intuitive. Angles and dimensions are considered carefully across a range of sizes to put more power to the road with every pedal stroke, and more power means more speed.
How can ergonomics help you ride further? Unlike a racing position that is focused on aerodynamics, an endurance position results in a bike that is easier to ride and increases stamina. A shorter cockpit and higher handlebar maximize rider comfort – and more comfort means longer and faster rides.
- Frame - Orbea Orca carbon OMR Disc, monocoque construction, HS 1,5″, BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, Speed release compatible dropout, Internal Cable Routing, EC/DC compatible
- Fork - Orbea carbon fork 2021, aluminum steerer, 1-1/8″ head tube
- Headset - Acros Alloy 1-1/2″ Internal Cable Routing
- Crankset - Shimano 105 R7000 34x50t
- Rear Derailleur - Shimano 105 R7000
- Front Derailleur - Shimano 105 R7000 GS
- Cassette - Shimano 105 R7000 11-30t 11-Speed
- Chain - KMC X11-EL
- Brakes - Shimano R7070 Hydraulic Disc
COCKPIT & WHEELSET
- Stem - OC Road Performance RP21, -6º
- Handlebars - OC RP30-R Road Performance Riser, Reach 70, Drop 125, Rise 15, Flare 5º
- Seatpost - Carbon, 27.2mm, Setback 20
- Saddle - Fizik Aliante R5
- Wheels - Alloy, Tubeless, 700c, 19c, 28H
- Tires - Vittoria Zafiro V Rigid bead 700x28c
- Front Wheel Axle - Orbea Thru Axle 12x100mm M12x2 P1 Solid
- Rear Wheel Axle - Orbea Thru Axle 12x142mm M12x2 P1 Solid
Magma is available in six sizes to suit almost every rider
- SIZE 47 (XS) – Recommended for riders from 155 to 160cm tall
- SIZE 49 (S) – Recommended for riders from 160 to 166 tall
- SIZE 51 (M) – Recommended for riders from 167 to 172cm tall
- SIZE 53 (L) – Recommended for riders from 173 to 179cm tall
- SIZE 55 (XL) – Recommended for riders from 180 to 185cm tall
- SIZE 57 (XXL) – Recommended for riders from 186 to 191cm tall
- SIZE 60 (XXXL) – Recommended for riders from 192 to 207cm tall
This chart shows our recommended frame sizes based on height. However, every person’s proportions are different, like the torso or arm and leg length has variations between people of the same exact height. That is a factor to achieve the best fit. That is why you will see some overlap in our recommendations above. This chart should only be used as a reference, for choosing the correct frame size to your body proportions please contact us through our website and/or visit a certified bike-fitter near you.
