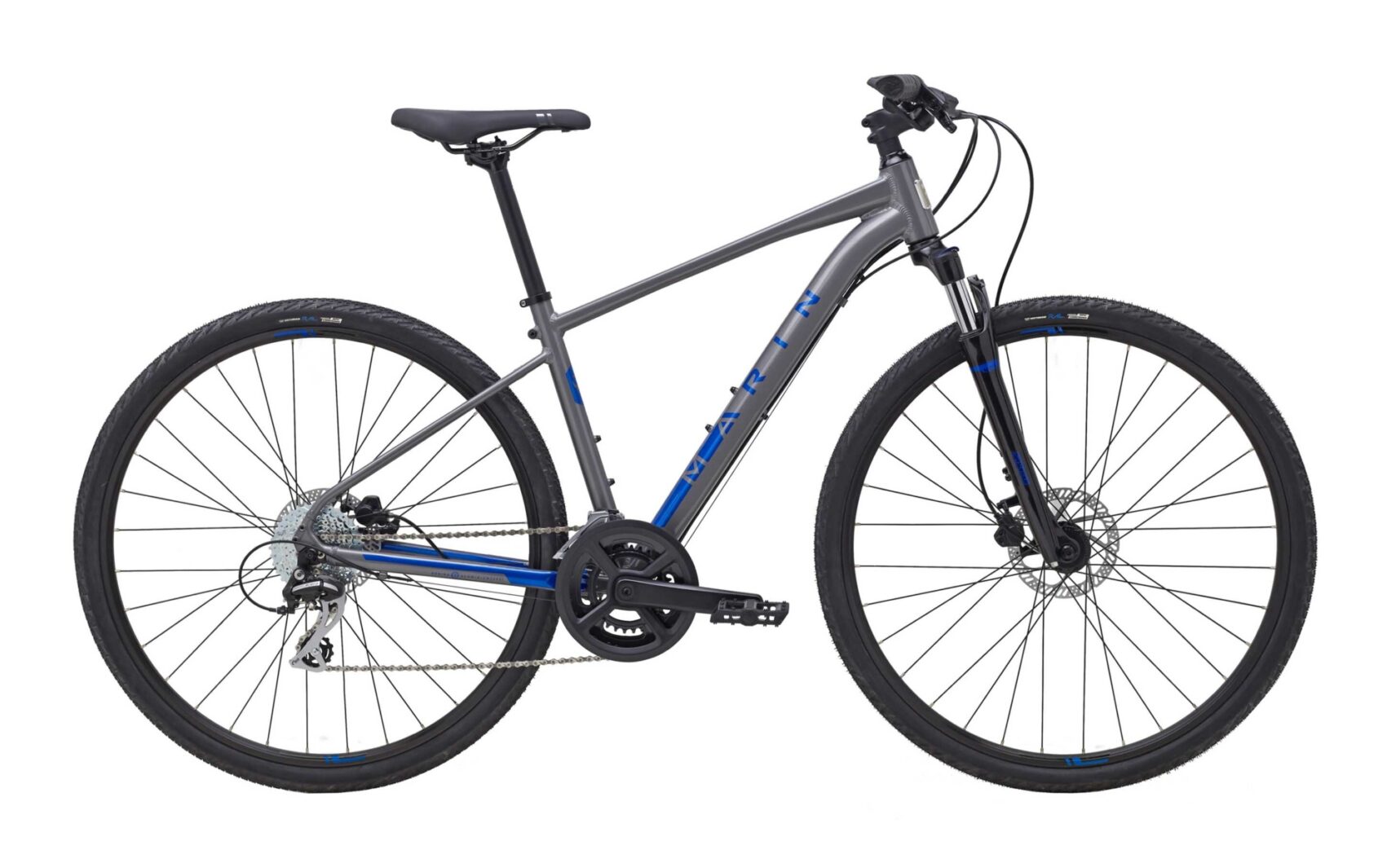

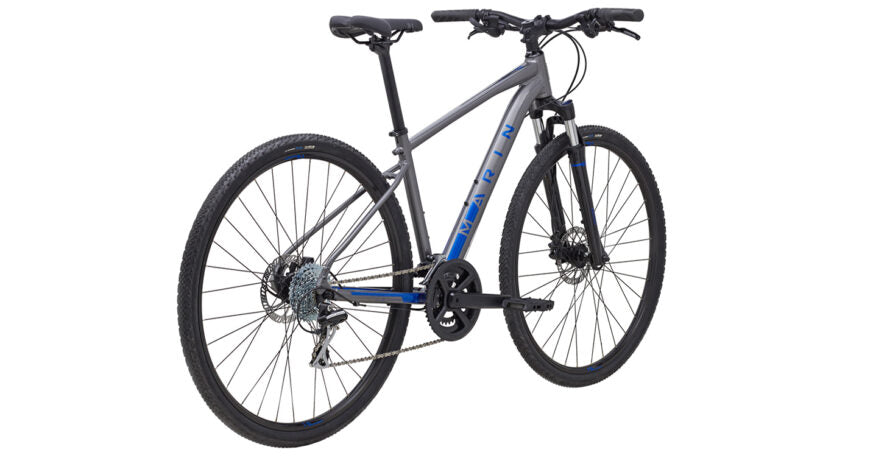

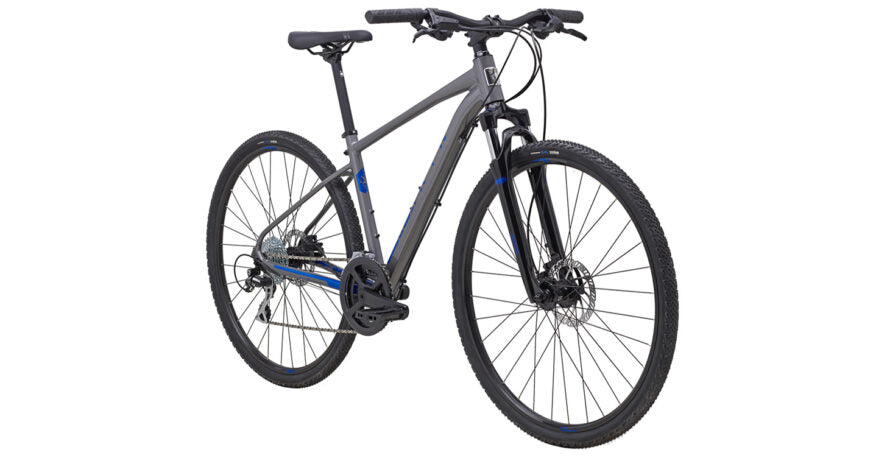

SAN RAFAEL DS2
Earn up to Rs. 2,499.95 cashback with Club House
Description
DESCRIPTION
The San Rafael and San Anselmo are for riders looking to explore mixed surfaces and terrain, travel the local rail-trail system, and explore paved paths and dirt doubletrack equally at home. Dual Sport bikes are a bridge between pavement and dirt, for the adventurous fitness and recreational rider.
DETAILS
- SR Suntour NEX fork w/hydraulic lockout
- Shimano 2x8 drivetrain
- Tektro hydraulic disc brakes
SPECIFICATIONS
- Intended Use- Fitness
- Wheel Size- 700c
- Braking System- Hydraulic Disc
- Frame Material- Aluminium
- Frame- Series 2 Dual Sport, 6061 Aluminum, 700C Wheels, Disc Brake
- Bottom Bracket- Sealed Cartridge Bearings, Square Taper
- Chain- KMC Z-8.3
- Crank- Forged Alloy Crank, 46/30T, Ring Guard
- Shift Levers- Shimano RapidFire Plus 2x8
- Cassette- SunRace 8-Speed, 11-34T
- Front Derailleur- Shimano FD-TY710
- Rear Derailleur- Shimano Acera 8-Speed
- Grips/Bartape- Marin Ergonomic Locking
- Handlebar- Marin Alloy Riser
- Stem- Marin Alloy, 31.8mm Clamp
- Saddle- Marin Fitness Plush
- Seatpost- Marin Alloy, 27.2mm
- Front Brake- Tektro HD-M275 Hydraulic Disc, 160mm Rotor
- Rear Brake- Tektro HD-M275 Hydraulic Disc, 160mm Rotor
- Front Wheel- Marin Aluminum Double Wall, Disc Specific
- Rear Wheel- Marin Aluminum Double Wall, Disc Specific
- Tire- Vee Tire, Rail, 700x40, Wire Bead
- Pedal- Dual Sport Platform
| XS | S | M | L | XL | |
| A STACK | 588.99 | 598.41 | 607.85 | 621.99 | 640.84 |
| B REACH | 382.43 | 377.94 | 384.26 | 400.04 | 405.28 |
| C HEADTUBE ANGLE | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
| D HEADTUBE LENGTH | 100 | 110 | 120 | 135 | 155 |
| E SEATTUBE ANGLE | 73.5° | 73° | 73° | 73° | 73° |
| F SEATTUBE LENGTH | 381 | 431.8 | 482.6 | 520.7 | 558.8 |
| G TOPTUBE EFFECTIVE | 556.9 | 560.9 | 570.1 | 590.2 | 601.2 |
| H BB HEIGHT | 291 | 291 | 291 | 291 | 291 |
| I BB DROP | 60 | 60 | 60 | 60 | 60 |
| J CHAINSTAY | 445 | 445 | 445 | 445 | 445 |
| K WHEELBASE | 1054.19 | 1053.04 | 1062.7 | 1083.48 | 1095.39 |
| L STANDOVER HEIGHT | 660 | 706.5 | 749.3 | 781.4 | 815 |
| M FORK OFFSET | 41 | 41 | 41 | 41 | 41 |
| SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| HANDLEBAR WIDTH | 680 | 680 | 680 | 700 | 700 |
| STEM LENGTH | 75 | 75 | 90 | 90 | 105 |
| CRANK LENGTH | 170 | 170 | 175 | 175 | 175 |
