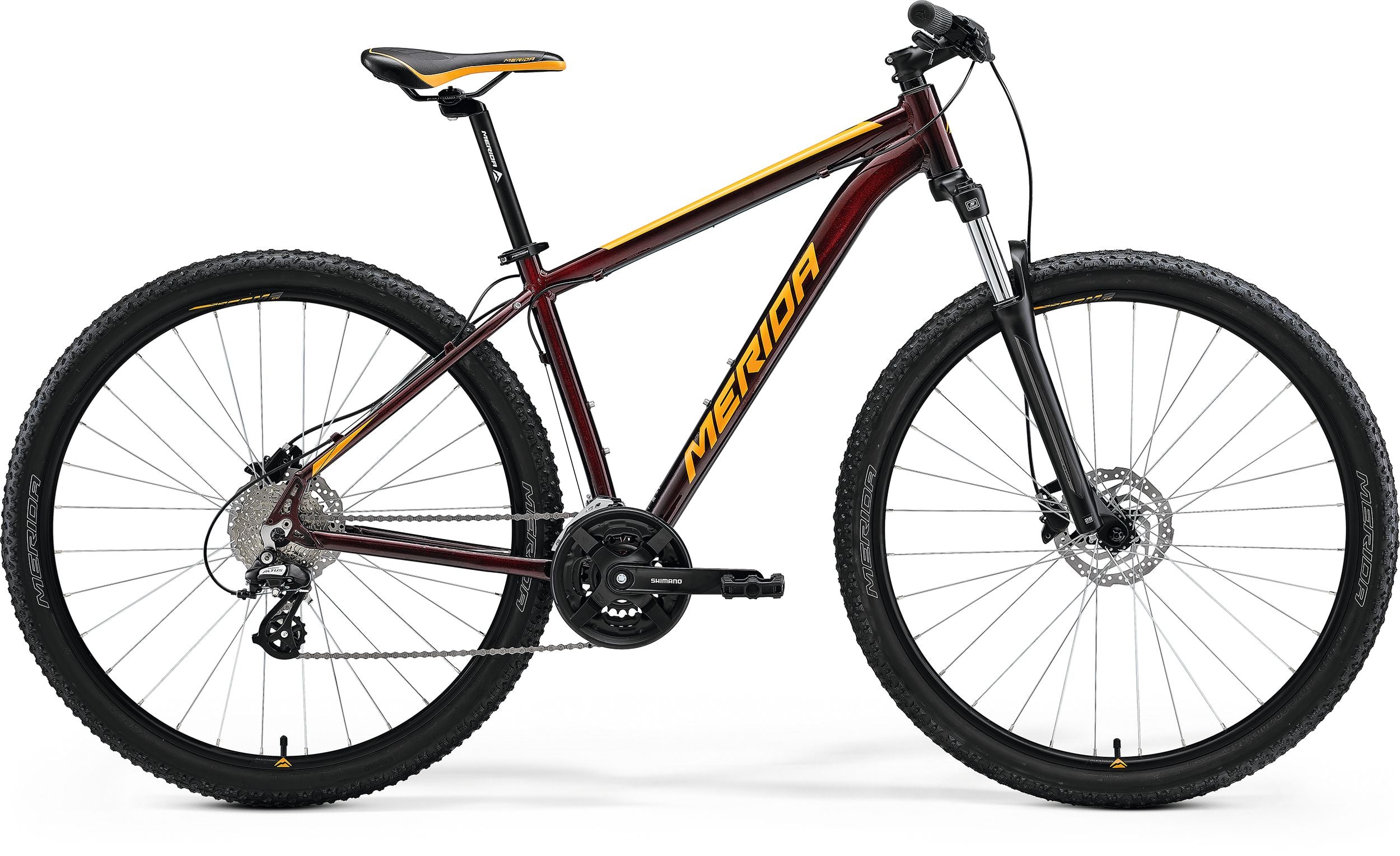

BIG NINE 15
Description
Our start into the world of 29er hardtails. The larger wheels combined with the 100 mm suspension fork offer additional comfort and control, and the chosen components help tackle your next off-road adventure.
Entry-level 29er hardtail built around our double butted aluminium frame with a more comfort inspired geometry. The 29er wheels help you cover ground quickly and impress with their outstanding 'roll over' ability. The SR Suntour fork help to improve the comfort even further, and the broad gear range of the triple chainring Shimano drivetrain let you conquer even the steepest hills with ease.
Mountain biking is one of the most varied cycling disciplines and probably the most demanding when it comes to equipment. While full suspension bikes offer amazing riding characteristics, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes in carbon and aluminium and features multiple geometry options. The carbon and LITE framed BIG.NINE, with its racing geometry, is an ideal companion on XC and marathon race tracks whilst the more relaxed geometry of the BIG.NINE TFS and SPEED offers a more comfortable, upright riding position. Our classic hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we could gain in almost half a century of bike production and manufacturing. The BIG.NINE range symbolises the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan'.
Features
- Double butted aluminium frame with 29er wheels
- Less aggressive and more upright geometry for maximum control and comfort
- SR Suntour 100 mm travel suspension
- Shimano 8-speed drivetrain
- Triple chainring setup, Hydraulic Disc Brake
Specifications
- Wheel Size- 29"
- Braking System- Hydraulic Disc
- Frame Material- Aluminium
- Fork Material- Aluminium
Components
- Frame- BIG.NINE SPEED, material: aluminium, 29x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard
- Fork- SR Suntour XCT30. Coil, 100mm suspension travel, 29x2.25" max. wheelsize
- Bottom Bracket- FSA TH-7420ST-W, CARTRIDGE BEARING
- Chain- SUNRACE M84
- Crank- Shimano TY301, 42-34-24 teeth, 170 mm-S, 175 mm-M/XXL
- Shift Levers- Micro Shift TS39-L / Micro Shift TS39-8R
- Front Derailleur- Shimano FD-TY700
- Rear Derailleur- Shimano RD-M310
- Grips/Bartape- MERIDA EC
- Handlebar- MERIDA CC, material: aluminium, 690mm width, 15mm rise
- Stem- MERIDA CC, material: aluminium, 31.8mm diameter, 6° stem angle, 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
- Saddle- MERIDA SPORT COMFORT
- Seatpost- MERIDA CC, material: aluminium, 30.9mm diameter, 15mm setback
- Front Brake- Power DS100, 2 piston, hydraulic disc brake
- Rear Brake- Power DS100, 2 piston, hydraulic disc brake
- Front Wheel- MERIDA CC, 17mm inner width, material: aluminium
- Rear Wheel- MERIDA CC. 17mm inner width. material: aluminium
- Tire- MERIDA K1080, 29x2.2", wire
- Pedal- VP VPE-891
Geometry
FRAME SIZE | S | M | L | XL | XXL |
TYRE SIZES | 29" | 29" | 29" | 29" | 29" |
ST SEAT TUBE [MM] | 382 | 448 | 486 | 532 | 583 |
TT TOP TUBE [MM] | 558 | 579 | 599 | 619 | 640 |
CS CHAIN STAY LENGTH [MM] | 450 | 450 | 450 | 450 | 450 |
HTA HEAD TUBE ANGLE [°] | 70 | 70 | 70.5 | 70.5 | 70.5 |
STA SEAT TUBE ANGLE [°] | 73.5 | 73.5 | 73.5 | 73 | 73 |
BD BOTTOM BRACKED DROP [MM] | 60 | 60 | 60 | 60 | 60 |
HT HEAD TUBE [MM] | 100 | 110 | 120 | 130 | 140 |
FL FORK LENGTH [MM] | 506 | 506 | 506 | 506 | 506 |
R REACH [MM] | 373 | 387 | 400 | 413 | 427 |
S STACK [MM] | 614 | 623 | 635 | 644 | 654 |
WB WHEEL BASE [MM] | 1071 | 1092 | 1106 | 1126 | 1147 |
SH STAND OVER HEIGHT [MM] | 698 | 755 | 789 | 829 | 869 |
